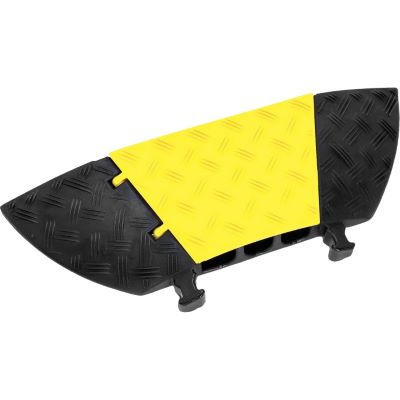

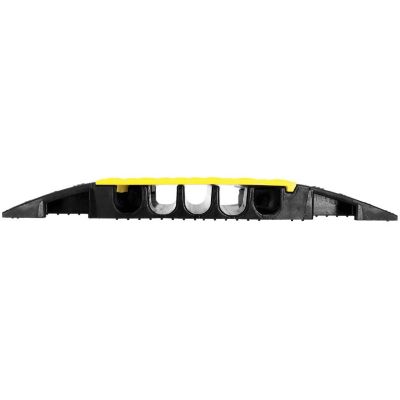

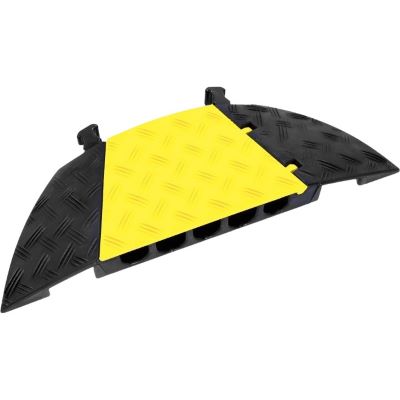

Adam Hall 85320F Defender MIDI 5 to MINI Adapter female Kabelbrücke

The Defender MIDI 5 to MINI female adapter is a heavy-duty adapter specially designed to connect the MIDI and MINI series. This adapter ensures a seamless transition without height difference and offers reliable protection for cables and people, both indoors and outdoors.

Features:

• Adapter suitable for the MIDI and MINI series

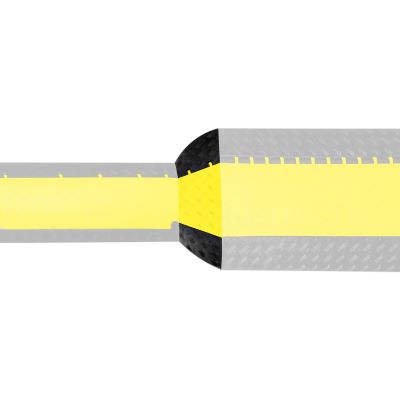

• Seamless transition without height difference
• Channels 1 and 2, as well as channels 4 and 5 are combined
• Heavy-duty, non-slip cable bridge made from recyclable, black polyurethane
• Integrated carrying handles for easy handling

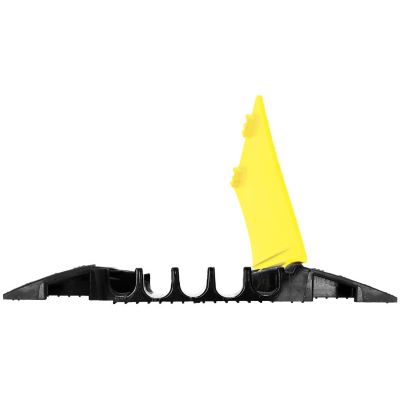

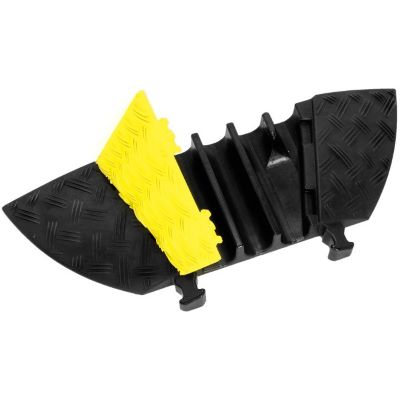

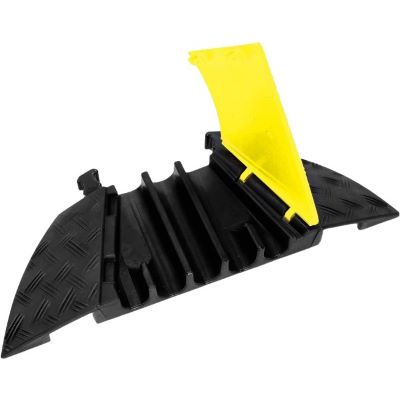

• Yellow polyurethane lid with high warning effect and secure locking mechanism
• Patented self-cleaning lid hinge
• Load capacity: approx. 5 t on 25 x 30 cm surface
• Fire protection class B2 (DIN 4102)
• Resistant to oil, acid, petrol and short-term contact with solvents
• Maximum crossing speed: 7 km/h
• Material: TPU (thermoplastic polyurethane)
• Surface structure: Corrugated
• Color: Black
• Lid color: Yellow
• Maximum load (on 25 x 30 cm): 5 t
• Hardness range (±4 Shore A): 88 Shore A
• Shape: Round

Specs:

• Channels: 5
• Canal diameter 1: 36 mm
• Canal diameter 2: 36 mm
• Canal diameter 3: 36 mm
• Canal diameter 4: 36 mm
• Canal diameter 5: 36 mm
• Canal diameter 6: 0 mm
• Canal diameter 7: 0 mm
• Color: Multi-Colored
• Set Offer: no
• Type: Bridge
• Theme: Cables and Pins
