ALUTRUSS Traversenset QUADLOCK 6082 Rechteck 7,71x4x3,5m (BxTxH)

ALUTRUSS QUADLOCK 6082 truss set rectangle 7.71 x 4 x 3.5 m (WxDxH) - complete solution for stable truss constructions

With the ALUTRUSS QUADLOCK 6082 truss set rectangle 7.71 x 4 x 3.5 m, you get a high-quality complete system for stable, professional truss constructions. Whether for trade fair construction, stage constructions, events or permanently installed applications in clubs and theaters - this truss set offers maximum load-bearing capacity, top quality and quick, tool-free assembly thanks to the tried-and-tested QUICK-LOCK system.

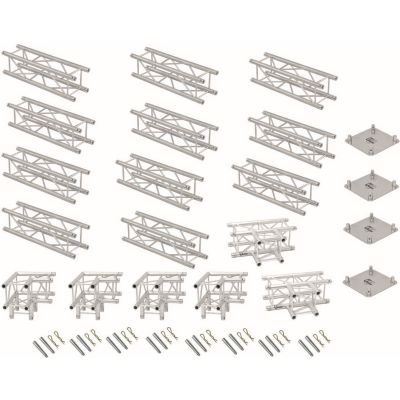

Set contents at a glance

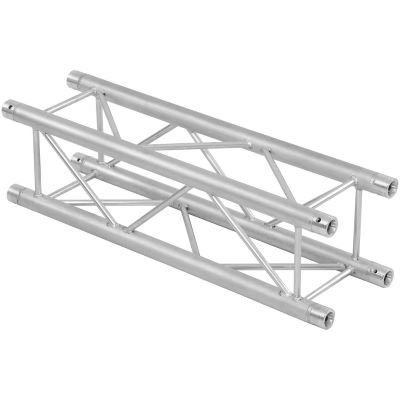

• 11 x ALUTRUSS QUADLOCK 6082-3000 4-point truss (3 m each)

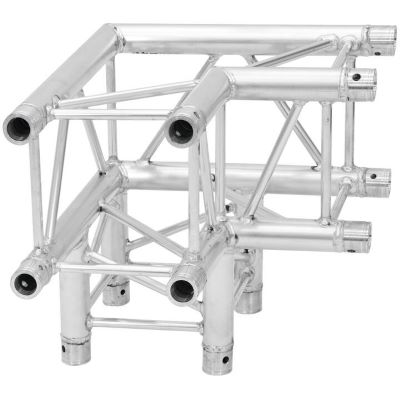

• 4 x ALUTRUSS QUADLOCK 6082L-30 3-way corner 90°

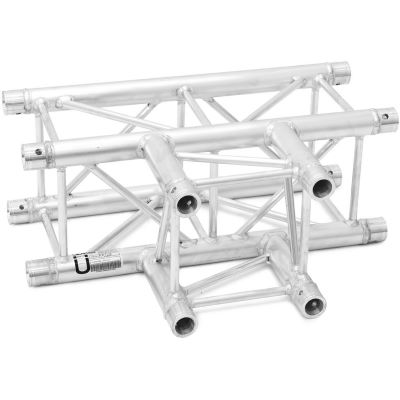

• 2 x ALUTRUSS QUADLOCK 6082T-35 3-way T-piece
• 8 x ALUTRUSS QUICK-LOCK replacement spigot incl. split pin

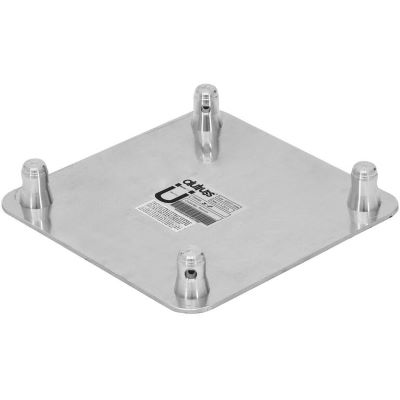

• 4 x ALUTRUSS QUADLOCK end plate QQG cone male M-10

Robust construction with high-quality aluminum

The set is based on the QUADLOCK 6082 4-point truss system, made from durable EN-AW 6082 T6 aluminum alloy. The 50 mm thick chord tubes with 2 mm wall thickness and the system-compatible struts ensure maximum stability combined with low weight. The hole center distance of 240 mm guarantees full compatibility within the system.

QUADLOCK 6082-3000 - basic element for large spans

The 11 trusses included , each 300 cm long, are ideal for large, stable spans - ideal for stage portals, LED walls, technical frames or truss roofs.

3-way corners & T-pieces for maximum flexibility

Thanks to the four 3-way corners (90°) and two 3-way T-pieces, a rectangular frame with an additional branch can be created quickly and precisely - perfect for the backs of stages or entrance areas at trade fair stands.

QUICK-LOCK accessories for quick installation

The scope of delivery includes 8 QUICK-LOCK replacement spigots incl. split pins - for quick, tool-free connection of the individual elements. The set is supplemented by 4 end plates with pre-assembled half cone (M10 thread), ideal for upright installation on the floor.

Tested safety - TÜV Süd certified

All components are TÜV Süd certified and meet the highest safety and load capacity requirements. Manufactured in Europe using TIG pulse welding technology and AlMg 5 welding material - processed by SLV-certified welders. A load table for static calculation is available online.

Ideal for professional applications

The truss set is ideal for:

• Stage portals and truss frames
• Trade fair construction and temporary exhibitions
• Light and sound rigs
• Roof constructions and entrance areas
• Permanent installations in clubs, theaters or studios

Features:

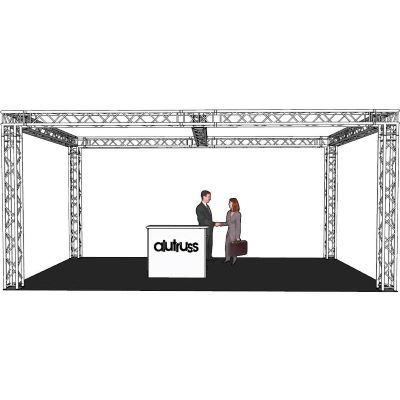

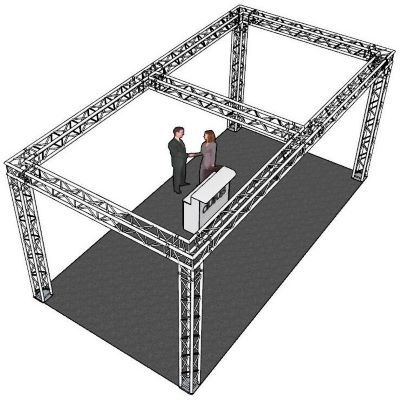

• Complete set: Rectangle 7.71 x 4 x 3.5 m (WxDxH)
• 4-point truss system with conical connectors
• Belt tube: 50 mm x 2 mm
• Material: aluminum EN-AW 6082 T6 (AlMgSi1 T6)
• QUICK-LOCK system for quick, tool-free installation
• Distance hole center - hole center: 240 mm
• Welding process: TIG pulse
• Welding material: AlMg 5
• End plates with pre-assembled half cone (M10 thread)
• Color: Aluminum color, polished
• All components Made in Europe
• TÜV Süd certified
