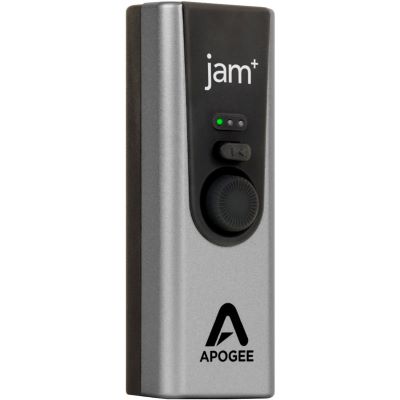

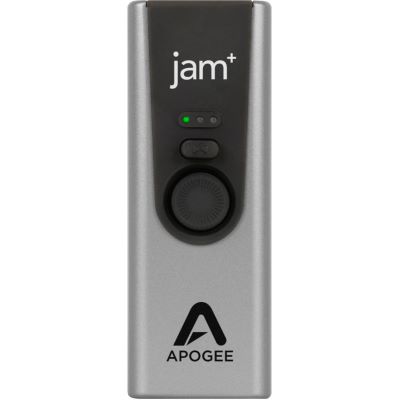

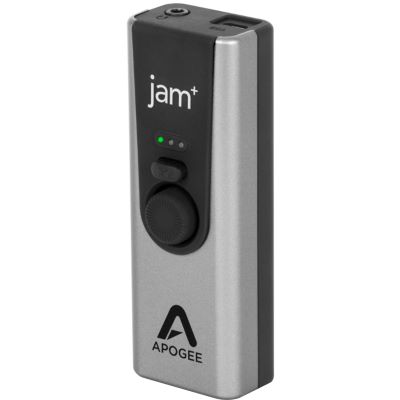

Apogee JAM Plus

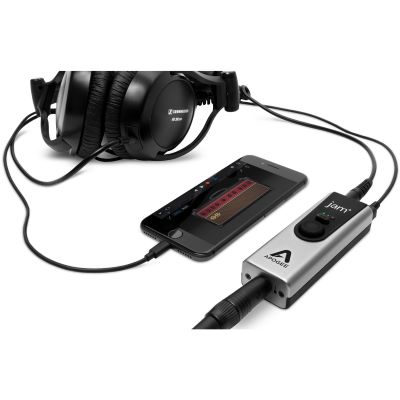

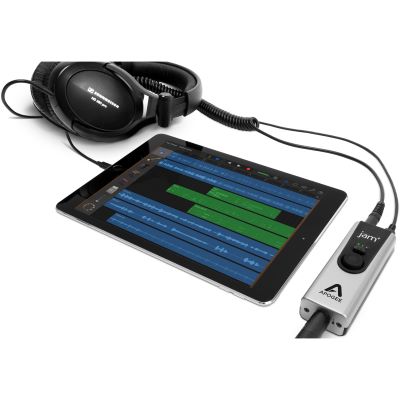

Apogee Jam+ is a professional, USB instrument input and stereo output. Jam+ connects your electric guitar, bass, acoustic instrument with pickup, dynamic mic or keyboard to your iOS device or computer. The simplicity and portability of Jam+ make it ideal for capturing your best take anywhere you go. And, the ease of use and sound quality make Jam+ a must-have for beginners and pros.

Connect any instrument-level input you can imagine to your computer or iOS device using Jam+. Synth and keyboard, electric guitar and bass, dynamic microphone and acoustic instrument with a pickup - it all works with Jam+. Transform your pristine direct signal into a rich, warm overdrive that can provide everything from a clean boost to a thick distortion in the tradition of the most coveted vintage amps and stompboxes. Dialing up Drive Mode also makes your favorite virtual amps and fx sound much more realistic. Drive Mode gives you great tone for direct, zero-latency recording. Jam+ also features an ⅛” stereo headphone output and Blend function for zero latency monitoring. The Blend setting allows you to easily adjust how much direct instrument input you hear mixed with software playback, enabling you to dial in the perfect mix.

Features:

• Apogee’s PureDIGITAL connection for pristine sound quality
• Works with guitar, bass, keyboards, synths, or any acoustic instrument with pick-up
• Dual mode option for Clean or Overdrive signal
• Drive mode makes virtual amps and effects sound more realistic
• Stereo output connects to headphones or powered speakers
• Blend mode minimizes delay in headphones while recording
• No configuration, just plug in and play with any audio recording app
• 24-bit/96kHz high resolution audio
• Rugged metal body with soft touch base
• Works with iOS, Mac and Windows PC
• Includes Lightning, USB and USB Type-C cables
• Includes BIAS FX Jam software with premium amplifiers and pedal effects
• Built in the U.S.A. using domestic and foreign parts
• Connect electric guitar or bass to iOS devices, Mac and PC
• Studio-quality you can take anywhere
• Direct digital connection for up to 96kHz / 24-bit high-definition recording
• Discrete, Class A input delivers punchy, tube amp tone
• Apogee’s PureDIGITAL circuit design eliminates signal noise
• No setup required, just plug in and play with any audio recording app
• Powered by iOS device or Mac (no batteries or ext. power required)

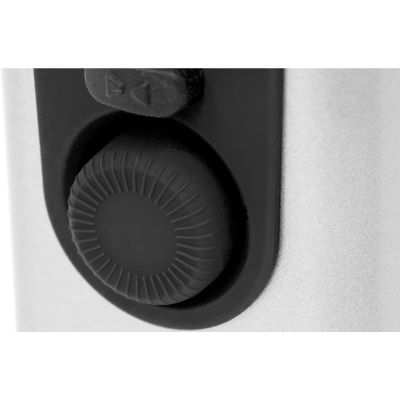

• Dial-in the perfect level with gain wheel and multicolor LED meter
• Works with GarageBand, Logic, and all Core Audio compatible applications
• 3 multicolor LEDs for status, input level and Blend mode indication
• Headphone output Blend control for zero latency recording
• Input Gain ajustment knob: Push to select Overdrive or Clean mode

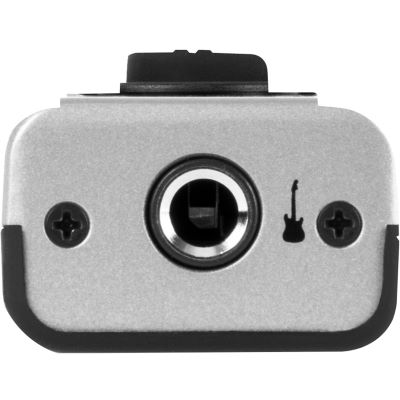

• Input: 1x 1/4″
• Output: 1x ⅛” Stereo Headphones
• Connection Type: Standard Micro USB
• Compatibility: Mac/iOS/Windows
• Cables included: USB A, USB C, Lightning
• Input Gain Control: Digital encoder knob for more precise gain setting Analog gain control wheel Analog gain control wheel
• Software included: Bias FX LE (Mac/Windows only)
• Low latency monitoring: Yes
• Overdrive: Yes
• Build quality : Die cast zinc with soft touch plastic
• Weight: 0.25 lbs (0.11 kg)
• Length: 4.0”
• Width: 1.5”
• Depth: .95”
• In the Box: Apogee Jam+, Quick Start guide, BIAS FX JAM software download instructions, Lightning cable (iOS devices), USB cable (Type C), USB cable (Type A)

System Requirements

• Mac OS 10.9 or later
• Computer: Mac, with an Intel processor
• Memory: 2 GB of RAM minimum
• Connection/power: USB port on computer
• Windows 10 or later
• Computer: Windows PC with Intel/AMD x86-64 processor
• Memory: 4GB of RAM minimum
• Connection/power: USB port on computer
• ASIO4ALL driver (for professional applications only)
• iOS 9 or later
• Connection: Lightning
• Power: From iOS device
• Made for: iPhone X,
  iPhone 8 Plus, iPhone 8,
  iPhone 7 Plus, iPhone 7,
  iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6,
  iPhone 5s, iPhone 5c, iPhone 5,
  iPad Pro (10.5-inch) iPad Pro (12.9-inch) (2nd generation), iPad Pro (9.7-inch), iPad Pro (12.9-inch),
  iPad Air 2, iPad Air,
  iPad mini 4, iPad mini 3, iPad mini 2, iPad mini,
  iPad (6th generation), iPad (5th generation),
  iPad (4th generation),
  iPod touch (6th generation), iPod touch (5th generation)

Specs:

• Color: Grey
• Rack Mountable: no
• Line Inputs: 1
• Line Outputs: 0
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 1
• digital Output: USB
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: None
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (861.92 KB)
