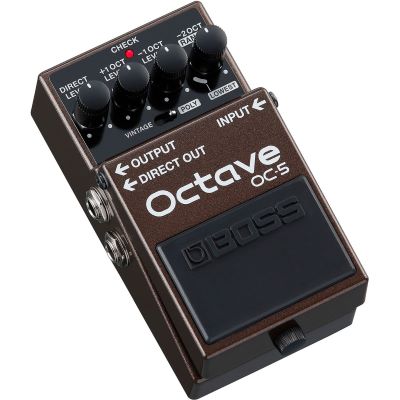

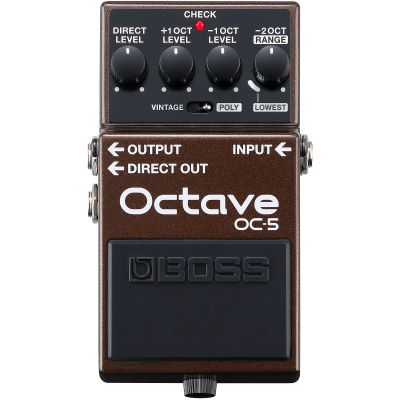

Boss OC-5

The OC-5 sets new standards for octave pedals. Classic octave sound meets new tracking technology to create a binding playing feel with the best playability on the market. From huge, deep mono sounds to octave chords, the pedal demonstrates outstanding sound quality and extended range. For all lovers, a vintage mode has also been added, allowing the classic mono sound of the famous OC-2 pedal to be imitated precisely.

Features:

• The industry standard among octave pedals with new functions
• Newly developed tracking technology for an even more precise response and a natural playing feel without latencyVintage mode
• as a replica of the original OC-2 mono soundsPolyphonic
mode for chord playing: The Range control determines the effect's range
• With the "Lowest Range" setting, the Octave effect only affects the lowest note of a chord
• New upward octave - as a stand-alone effect or in combination with downward octave
• Mode switch, optimizes the tracking engine for guitar or bass
• Direct output for Wet/Dry-Setu

Technical data:

• Nominal input level:-20 dBu
• Input impedance:1 M ohm
• Nominal output level:-20 dBu
• Output impedance:1 k ohm
• Recommended load impedance:10 k ohms or greater

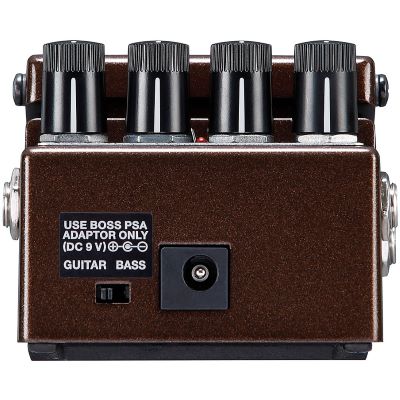

• Power supply: Alkaline battery (9 V, 6LR61 or 6LF22)
• Connectors:INPUT jack (6.35mm phone type) OUTPUT jack (6.35mm phone type) DIRECT OUT jack (6.35mm phone type) DC IN socket
• Dimensions (WxDxH): 73mm x 129mm x 59mm
• Weight: 440g

Specs:

• Color: Brown
• Effect Type: Octaver
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (384.2 KB)
