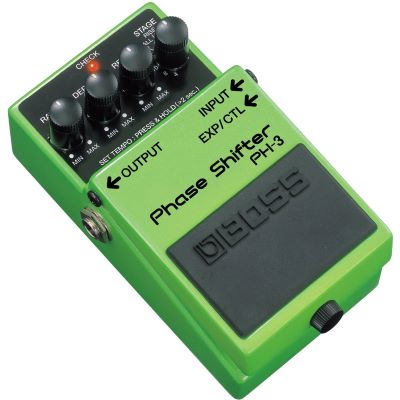

Boss PH-3 Phase Shifter

Modern Phasing with Tap Tempo Sync

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.

Features:

• Compact pedal with versatile vintage and modern BOSS phasing
• New "Rise" and "Fall" modes create unidirectional phasing
• Includes classic multi-stage phasers with selectable stages
• Realtime control of Rate, Filter, and Tempo via optional expression pedal
• Tap tempo sync of phasing effects

Specs:

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Residual Noise Level: -92 dBu (IHF-A, Typ.)
• Connectors: INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
• Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
• Current Draw: 50 mA (DC 9 V)
• Accessories: Dry Battery 9 V type (6F22/9 V)
• Options: AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
• Size (WxDxH): 2-7/8 inches x 5-1/8 inches x 2-3/8 inches
• Weight: 0 lbs. 15 oz.


Specs:

• Color: Green
• Effect Type: Phaser
• Type: digital Effects Processor
• Theme: Guitars and Basses
