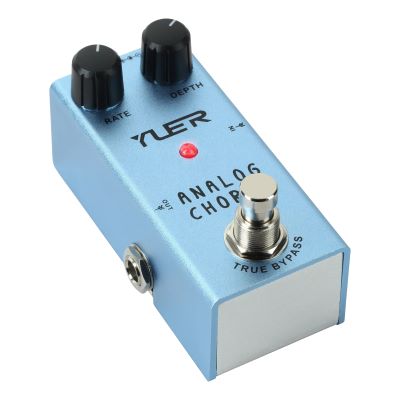

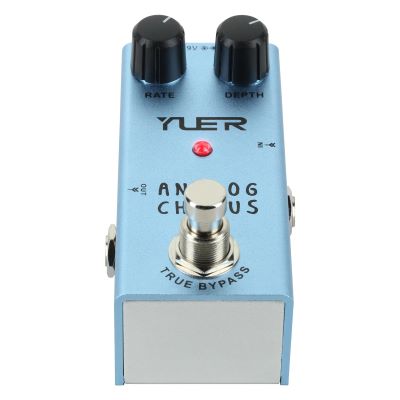

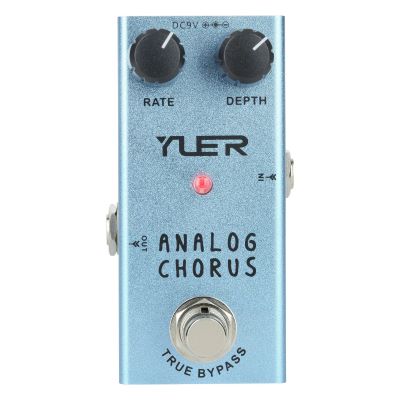

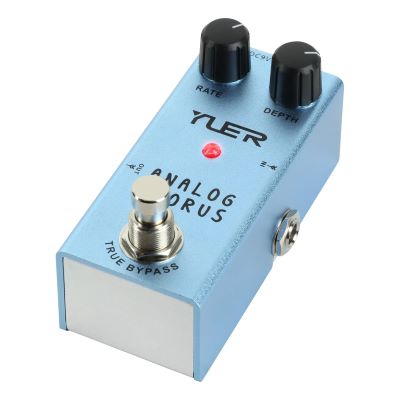

Yuer RF-10 Series Analog Chorus

Yuer RF-10 Series Analog Chorus

Classic analog sound in a mini format – Yuer RF-10 Series Analog Chorus

The Yuer RF-10 Series Analog Chorus packs the legendary sound of classic chorus effects into a compact, rugged enclosure, making it the perfect choice for guitarists seeking warm, modulating tones. With analog signal processing and a genuine BBD (Bucket Brigade Device) chip, this effects pedal delivers a natural, organic chorus that’s ideal for rhythmic playing, clean arpeggios, or dreamy lead lines.

Whether in the studio or on stage, the Yuer RF-10 combines vintage sound aesthetics with modern construction and ease of use. Thanks to true bypass, your signal remains unaltered when the effect is disabled. With just two controls for Rate and Depth, the pedal is ready to use right out of the box and offers a wide range of sounds—from subtle swells to intense modulations.

Yuer – Compact, Reliable, Musical

The Yuer RF-10 Series effects pedals are designed for guitarists who rely on compact yet expressive tonal tools. The Yuer RF-10 Series Analog Chorus proves that a high-quality analog effect doesn’t have to take up much space on your pedalboard. Thanks to its sturdy aluminum housing, the pedal is perfectly equipped for the rigors of daily stage use. The simple user interface and precise control make it an attractive choice even for beginners.

Power is supplied via a standard 9V power adapter (not included). Battery operation is intentionally not supported to keep the pedal as compact as possible. With a current draw of just 12 mA, the chorus pedal is also particularly energy-efficient—ideal for large pedalboards with multiple effects.

Authentic Analog Chorus with BBD Chip

At the heart of the Yuer RF-10 Chorus is a BBD chip—the foundation for the characteristic, warm chorus sound of analog classics. Unlike digital modulation effects, the BBD chorus produces a slightly fluctuating delay that adds depth and movement to your guitar signal—without sounding artificial. This organic sound is what makes analog chorus so popular for clean tones, funky grooves, or atmospheric textures.

Use the Rate knob to control the speed of the modulation, while the Depth knob determines the intensity of the effect. This lets you dial in everything from a gentle, subtle chorus to a full, pulsating soundscape—tailored to your style and setup.

Simple Operation, Powerful Performance

The Yuer RF-10 chorus pedal is stripped down to the essentials—two knobs, a footswitch, and a status LED. This minimalist approach ensures fast, intuitive operation both on stage and in the rehearsal room. The true bypass switch ensures that your original signal remains unchanged when the effect is deactivated—no compromises on tone.

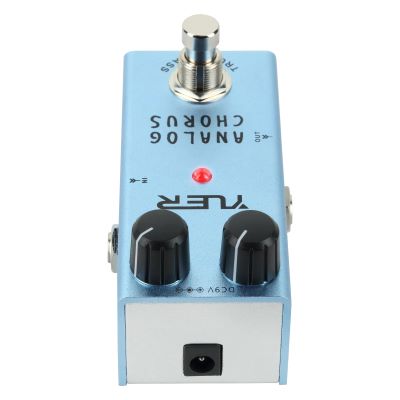

Thanks to the 6.3 mm mono jack input and output, the pedal can be easily integrated into any setup. Power is supplied via a standard 9V DC hollow-pin jack (5.5 x 2.1 mm, negative terminal inside). Its compact size and light weight of just 130 g make the RF-10 Chorus the ideal companion for musicians with limited space on their pedalboard—and high standards for their sound.

Conclusion: Yuer RF-10 – Classic Chorus for Modern Guitarists

The Yuer RF-10 Series Analog Chorus is the perfect choice for all guitarists seeking the warm, lively sound of analog chorus effects—compact, reliable, and intuitive to use. With a genuine BBD chip, true bypass, and a rugged aluminum housing, this effects pedal delivers not only authentic sound but also true stage-ready quality.

If you value classic analog sound but don’t want to sacrifice modern features and a space-saving design, the RF-10 is a faithful companion for every musical situation—from the rehearsal room to the big stage.

Features:

• Analog chorus effect with a classic BBD chip
• Controls for Rate (modulation speed) and Depth (modulation depth)
• Compact design for maximum space savings
• True bypass for an unaltered guitar signal when the effect is deactivated
• Sturdy aluminum housing for live use
• Status LED to indicate operation
• Footswitch to turn the effect on and off
• Input: 6.3 mm mono jack
• Output: 6.3 mm mono jack
• Powered by a 9V DC power supply (not included)
• Standard 5.5 x 2.1 mm hollow jack, negative pole inside
• Current draw: 12 mA
• Dimensions: 93 x 52 x 42 mm (L x W x H)
• Weight: 130 g – exceptionally lightweight and portable
• Battery operation not possible
• Does not include a flanger, phaser, or additional modulation effects

Specs:

• Color: Blue
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses
