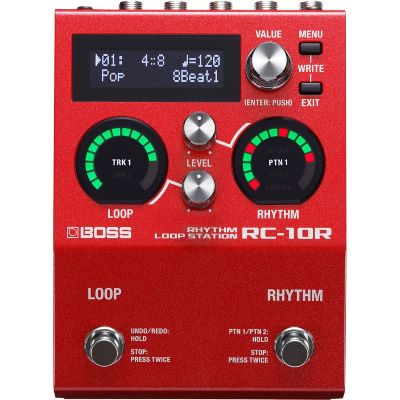

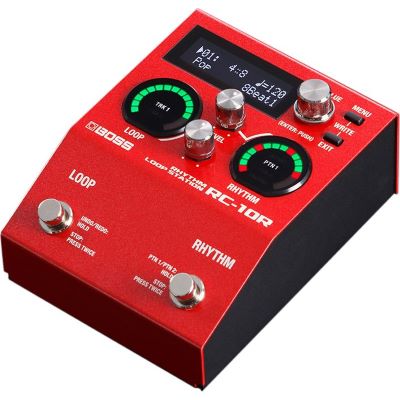

Boss RC-10R Rhythm Loop Station

The Boss RC-10R Rhythm Loop Station combines more than 280 preset rhythm styles with stereo looping. The device contains 16 high-quality drum kits. Up to 99 phrases and 50 user rhythms can be stored in the built-in memory.

Features:

• Next-generation performance tool that combines songbased looping and dynamic rhythms in one compact device
• More than 280 preset rhythm styles for almost every genre - two independent parts, intro/outro fills and two transition fills
• 16 versatile drum kits with high-quality sounds from the BOSS and Roland rhythm libraries
• Stereo Looper with six-hour recording capacity and premium 32-bit AD/DA conversion and 32-bit floating point signal processing
• Serial 2-track mode for creating loop performances with two independent parts
• Two circular displays for loop and rhythm playback status
• Simple operation thanks to informative LC display and intuitive user interface
• Integrated memory for 99 phrases and 50 user rhythms
• Selectable output filter for optimized guitar and rhythm sounds when connected to a guitar amp or PA system
• Extended control via external footswitches, expression pedal or MIDI
• MIDI input/output via space-saving mini-jack connectors (BMIDI-5-35 adapter cable sold separately)
• Mac/Windows software for importing your own WAV loops and rhythms in SMF format
• More content available on BOSS Tone Central

Technical data:

• Sampling rate: 44.1 kHz
• AD/DA conversion: 32 bit
• Processing: 32-bit floating point value
• Maximum recording time: approx. 6 hours (stereo)
• Maximum phrase memory: 99
• Number of tracks: 2
• Data format: WAV (44.1 kHz, 32-bit float, stereo)
• Number of rhythms: 280 types or more
• rhythm control: intro, pattern 1, pattern 1 filling, pattern 2, pattern 2, pattern 2 filling, end
• Rhythm set: 16 types
• Maximum polyphony: 24 voices
• Effect: Reverb (only for rhythm part)
• Memory: 99
• Nominal input level: INPUT A/MONO, B: -10 dBu
• Maximum input level: INPUT A/MONO, B: +8 dBu
• Input impedance: INPUT A/MONO, B: 1 M Ohm
• Nominal output level: OUTPUT A/MONO, B: -10 dBu
• Maximum output level: OUTPUT A/MONO, B: +8 dBu
• Output impedance: OUTPUT A/MONO, B: 1 kOhm
• Recommended load impedance: OUTPUT A/MONO, B: 10 kOhm or more
• Bypass: Buffered Bypass
• Controls: RHYTHM Switch, LOOP Switch, VALUE Button, RHYTHM LEVEL Button, LOOP LEVEL Button, MENU Button, EXIT Button
• Display: 16 characters x 2 lines LCD (with backlight)
• Indicator: RHYTHM display, LOOP display

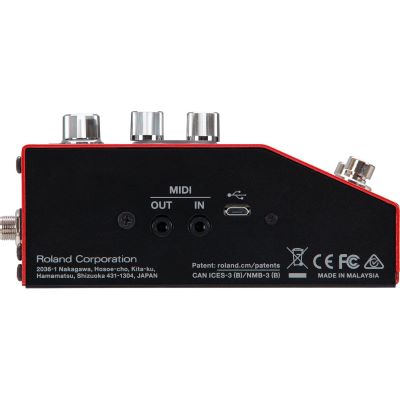

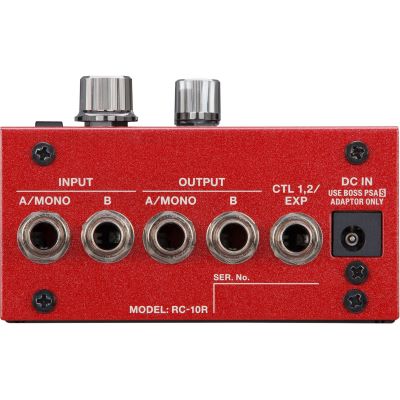

• Connections: Input (A/MONO, B) 6.3mm jack, Output (A/MONO, B) 6.3mm jack, CTL 1 6.3mm jack, CTL2/EXP 6.3mm stereo jack, MIDI IN/OUT 3.5mm stereo jack, DC input, USB Micro Type B
• Power supply: power supply
• Current consumption: 250 mA
• Supplied accessories: operating instructions, safety instructions, power supply, 4 rubber feet
• Optional accessories (not included): Single Foot Switch Boss FSU-5; Dual Foot Switch Boss FSU-6, FSU-7; Expression Pedal FV-500H, FV-500L, EV-30, Roland EV-5; Jack MIDI Cable BMIDI-5-35
• Dimensions (WxDxH): 101 x 138 x 63/65 mm (without/with rubber feet)
• Weight: 620 g (without power supply)

Specs:

• Color: Red
• Effect Type: Looper
• Type: digital Effects Processor
• Theme: Guitars and Basses
