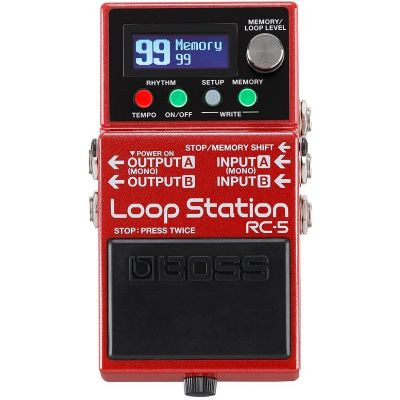

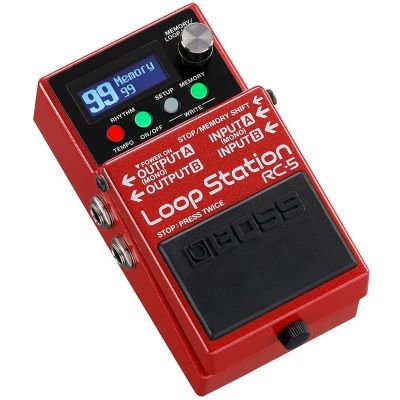

Boss RC-5 Loop Station

With more than 50 built-in rhythms, 13 hours of stereo recording and 99 phrase memories, the RC-05 from Boss gives you maximum looping power for your pedalboard setup.

Features:

• Advanced BOSS looping features in a compact package
• First-class sound quality thanks to 32-bit AD/DA conversion and 32-bit floating point calculation
• Stereo looping engine with 13 hours recording capacity
• LCD with multi-color backlighting to display loop status and edit parameters
• Reverse function for extraordinary loop structures
• Seven drum kits and 57 preset rhythms with A/B variations
• Advanced control via external foot switch, expression pedal or MIDI
• MIDI input/output via space-saving mini jack connectors (BMIDI-5-35 adapter cable sold separately)
• S99 Phrase memory integrated
• Save and load WAV loops via USB

Technical data:

• Sampling frequency: 44.1 kHz
• AD/DA conversion:32 bits
• Processing:32-bit floating point
• Recording/playback:1 track Data format in WAV (44.1 kHz, 32-bit floating point, stereo) maximum recording time is approx. 1.5 hours (1 track), approx. 13 hours (sum of all memories)
• Effect:Hall (only for the rhythm part)
• Power supply: Alkaline battery (9 V, 6LR61 or 6LF2

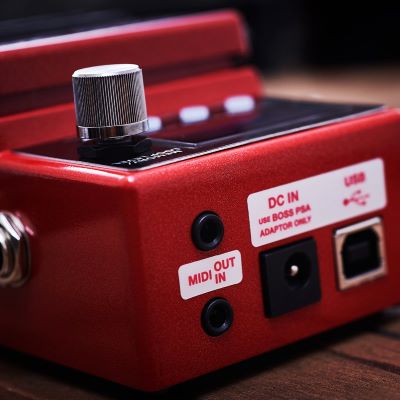

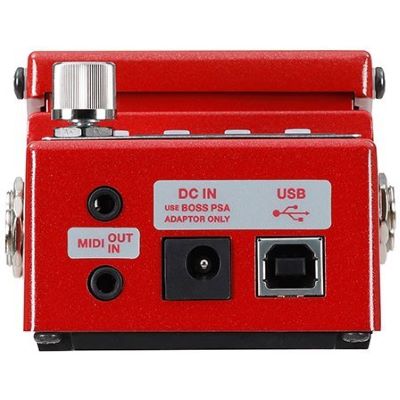

• Connections:INPUT A/MONO, B jack: 6.35mm phone Type OUTPUT A/MONO, B jack: 6.35mm phone Type STOP/MEMORY jack: 6.35mm TRS phone type MIDI (IN, OUT) jack: stereo miniature type DC IN jack
• Dimensions (WxDxH): 73mm x 129mm x 56mm

Specs:

• Color: Red
• Effect Type: Looper
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (626.95 KB)
