Cameo Control Pad - Stick Edition black

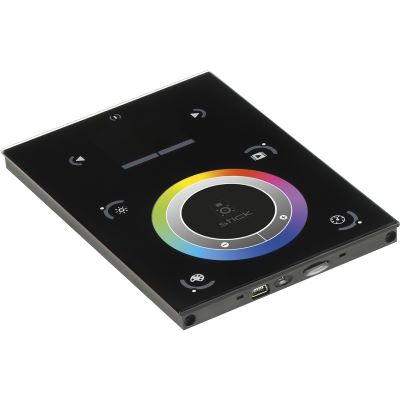

The Cameo Control Pad - Stick Edition in the colour black is a multi-zone light control for wall mounting with a control panel made of tempered glass.

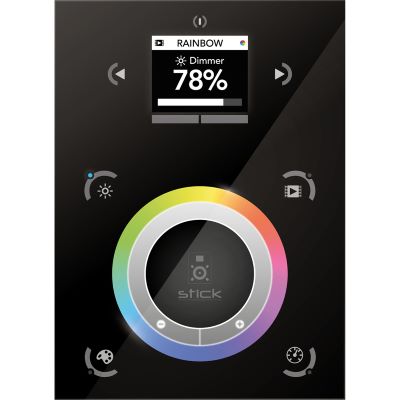

Comprehensive lighting control as easy as operating a switch: Cameo's Stick Edition multi-zone controller eliminates the need to navigate through complicated menus. Select a zone and select static or dynamic scenes. Adjust the desired brightness with the dimmer. Control the speed of dynamic scenes and browse over 16 million RGB colours - all with a scroll wheel or individual touch-sensitive access keys. With 1,024 DMX channels, 500 scenes and 10 zones, the Stick Edition DMX controller is the extremely user-friendly solution for controlling even complex lighting installations. It offers USB and Ethernet connections, is network-compatible and compatible with ESA, ESA2, ESA Pro and ESA Pro 2 software for Mac and Windows as well as iOS and Android apps for remote control. The controller is available in black or white and is mounted on walls. It has a high-quality tempered glass control panel with a display to show settings and colour scenes.

Features:

• Multi-zone light control for wall mounting, network-compatible
• 1,024 DMX channels, 500 scenes, 10 zones
• Hardened glass control panel
• Scroll wheel and keys for dimmer, scene, RGB color and dynamic scene tempo
• Colour display for easy setup
• Ethernet and USB connection
• MicroSD memory card
• Power supply via Ethernet or optional power supply unit (art. no. CLCPACDCSE)
• ESA software for Mac and Windows
• iOS and Android remote control apps

Technical data:

• Product type: Other lighting accessories
• Type: DMX Controller
• Colour: black
• Operating elements: touch-sensitive keys

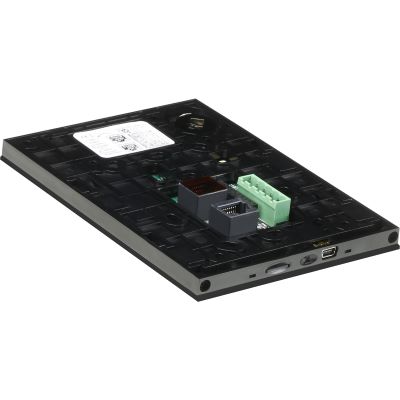

• Connections: 5 V Output Relay , 8 x Dry Contact Ports , Clock , Ethernet , RS232 , USB
• Software: Arcolis App , Cameo D4 , Daslight 4 , ESA Pro , ESA Pro 2 , ESA2 , Remote Control App
• Output Protocol: 2 x DMX 512
• Number of DMX channels: 1024
• Clock / calendar triggers: 100 / astronomical
• Live Control: Colour , Dimmer , Speed
• Zones: 10
• Scenes: 500
• Memory: Micro SD card
• Memory capacity (max.): 32 GB
• Battery type: LIR2032
• Power supply: 6 - 7 V DC / 0.6 A
• Power supply connection: RJ45 , screw terminal
• Ambient temperature: -10 - 45 °C
• Mounting: Single or double wall socket outlet
• Accessories (included in delivery): AC/DC adapter , RJ45 on board block
• width: 106 mm
• height: 146 mm
• Depth: 11 mm
• weight: 0,45 kg
