Cameo FLAT PAR CAN 7 x 3 W UV IR

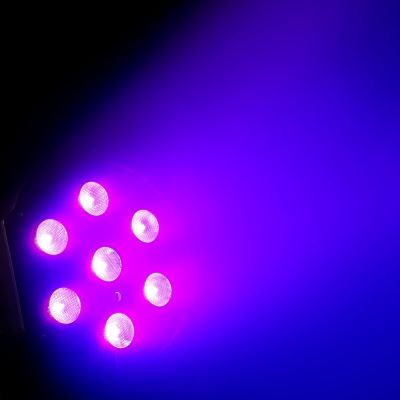

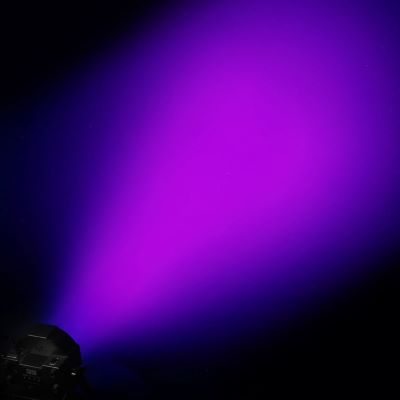

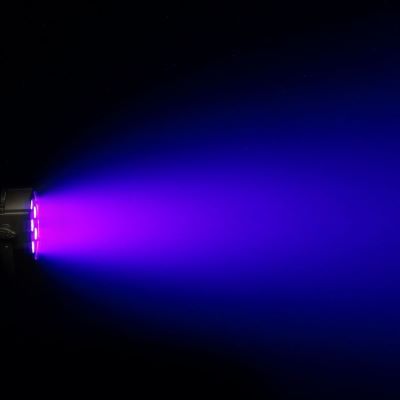

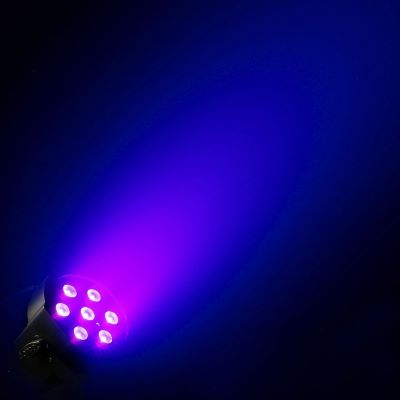

The Cameo CLPFLAT1UVIR is a very flat, luminous PAR projector with seven 3 watt high power UV LEDs, dimmer and strobe functions and a 40° beam angle. High-efficiency convection cooling provides noise-free operation.

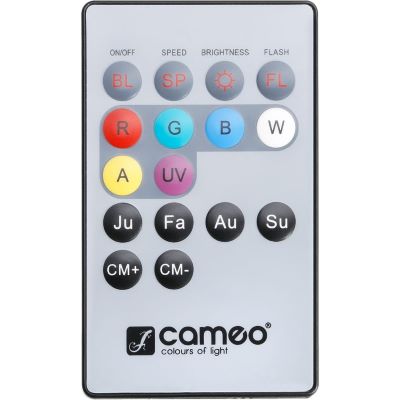

The CLPFLAT1UVIR features 3 modes of DMX control, master, slave and standalone capability. A 4-button display enables easy configuration, an infrared remote control is available as an optional accessory.

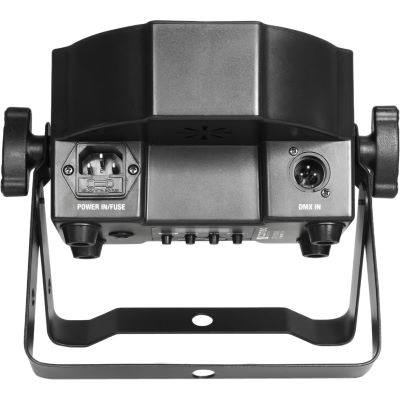

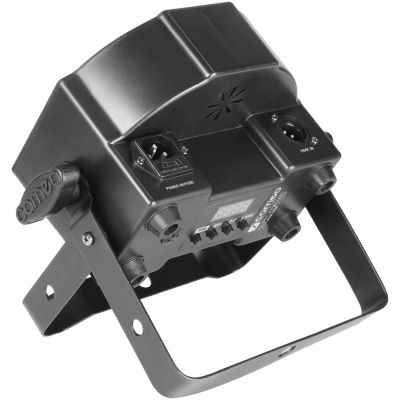

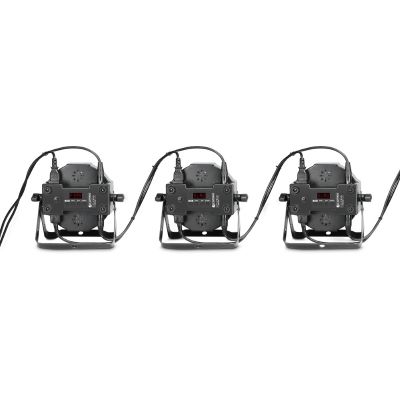

The compact ABS housing sports 3-pin DMX and IEC power inputs and outputs for daisy-chaining up to 10 units and adjustable twin brackets.

Features:

• Infrared remote control capability
• Low power consumption
• DMX and IEC power in and out for daisy chaining up to 10 units
• 3 DMX modes, master, slave and standalone operation plus IR remote option

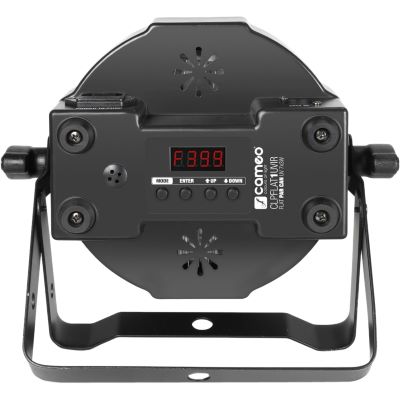

• 4-button LED display for intuitive configuration
• Twin brackets included as standard
• Flat, compact ABS housing
• Product type: LED PAR Lighting
• Type: Indoor
• Colour spectrum: UV
• Number of LEDs: 7
• LED type: 3 W
• Dispersion: 40°
• DMX input: XLR 3-pin male
• DMX output: XLR 3-pin female
• DMX mode: 1-channel, 2-channel, 3-channel
• DMX Functions: strobe, master dimmer
• Standalone modes: slave mode, strobe, static colour
• Controls: Enter, mode, Value Down, Value Up
• Indicators: LED Display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 20W
• Power connector: IEC power connector male, IEC power connector female
• Housing material: ABS plastic
• Cabinet colour: black
• Cooling: Convection
• Dimensions without mounting bracket: 180 x 175 x 115 mm
• Weight: 1.2 kg

Specs:

• Light source: LED UV
• Steuerung DMX: yes
• Light effect type: PAR
• Montageart: flexible Deployment
• Type: PAR Spotlight
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (1.25 MB)
