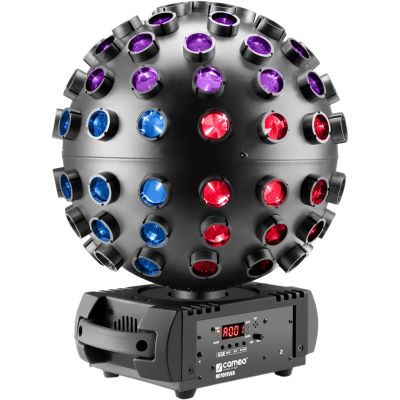

Cameo ROTOFEVER LED-Discokugeleffekt

The Cameo Rotofever is an LED disco ball effect, equipped with five 12 Watt strong hexacolour LEDs and a smooth running precision motor. It has three separately controllable LED zones, is easy to operate and can be set up to save space.

Features:

• LED discoball effect
• 5 x 12W Hexacolour LEDs RGBWA+UV
• 3 separately controllable LED zones
• Smooth running precision motor with 1.4 rpm to 19 rpm
• Clockwise and counterclockwise rotation
• Simple and space-saving installation
• IEC mains input and output for connection in series
• 3 DMX modes and master, slave or standalone operation
• Integrated microphone for music control
• Simple configuration via LED display with 4 keys

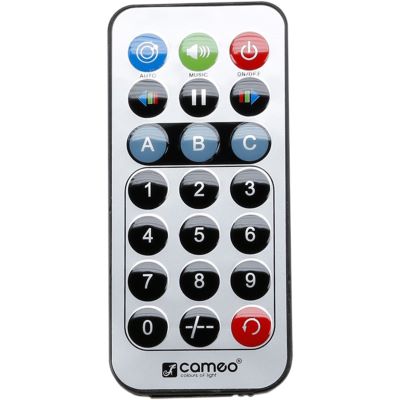

• Includes IR remote control and universal mounting bracket

Technical data:

• Product type: LED light effects
• Type: LED Effect Lights
• Colour spectrum: RGBWA+UV
• LED Number: 5
• LED type: 12 W
• DMX input: XLR 3-pin male
• DMX output: XLR 3-pin female
• DMX mode: 12 channel , 23 channel , 3 channel
• DMX functions: Auto- & Sound programs , Color macros , RGBWA+UV , Rotation clockwise & counter clockwise slow to fast
• Standalone Modes: Auto Programs , Master / Slave Mode , Sound Programs , Static Mode
• Control elements: Enter , Mode , Value Down , Value Up
• Display elements: 4-digit LED display
• Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
• Power consumption: 70 W

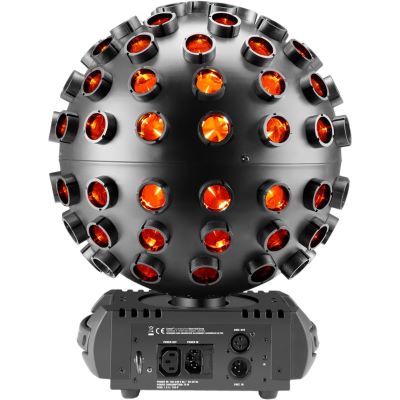

• Power supply connection: IEC input and output
• Housing material: Metal
• Housing colour: black
• Cooling: convection
• Dimensions (WxHxD): 390 x 320 x 320 mm
• weight: 3,9 kg
• IR remote control included

Specs:

• Steuerung DMX: yes
• Light effect type: Beam Effect
• Light source: LED RGBWA
• Montageart: flexible Deployment
• Type: Lighting Effect
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (1.69 MB)
