NEW Cameo TS 200 WW LED Theater-Spot 180W Warmweiß Fresnel Zoom

Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom

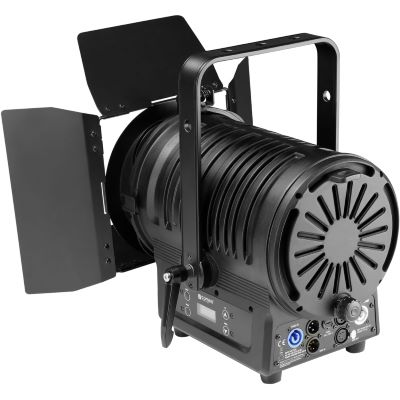

Are you looking for a professional theater spotlight with warm white light, a Fresnel lens, and a flexibly adjustable beam angle? The Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is a high-performance LED spotlight designed for stage, theater, event production, and professional lighting applications that require an even, softly defined beam.

With its 180 W warm white LED, a color temperature of 3,100 K, high luminous flux, and manual Fresnel zoom, the Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is particularly well-suited for applications where people, scenes, stage sets, or presentation areas need to be cleanly illuminated. The beam angle can be continuously adjusted from 14° to 38°, allowing for both narrow spot lighting and wider illumination.

Warm-White Theater Spot with Fresnel Lens

The Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is equipped with a Fresnel lens. This lens provides an even beam of light with soft edges, as is often required for theater, studio, and stage applications.

The warm-white LED with 3,100 K produces a pleasant light pattern that is particularly well-suited for faces, costumes, props, and stage surfaces. The high color rendering index supports a natural reproduction of colors and details.

Stepless manual zoom from 14° to 38°

A key feature of the Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is its stepless manual zoom. This allows the beam angle to be flexibly adjusted from 14° to 38°.

This flexibility is particularly useful when the spotlight is used at different distances or on surfaces of varying sizes. Narrower settings are suitable for targeted accents, while wider angles can be used for broader illumination.

High Light Output and Precise Dimming

The Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom achieves a luminous flux of 6,600 lm and an illuminance of 67,500 lx at a distance of 1 m. This makes the spot a powerful lighting solution for professional applications.

The dimmer resolution is 16 bits, allowing for precise control of brightness gradients. Various LED PWM frequencies up to 25 kHz ensure flicker-free operation, making the spotlight suitable even for demanding applications.

DMX, RDM, and Stand-Alone Operation

The Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom supports DMX512 and RDM. Three DMX control modes are available. Additionally, the spotlight can be used in master/slave mode.

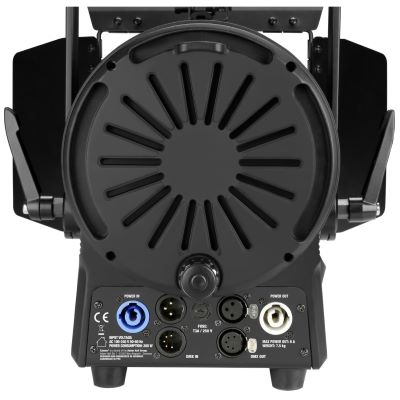

3-pin and 5-pin XLR connectors are provided for data transmission. This allows the spot to be flexibly integrated into existing lighting setups and connected to other devices.

Strobe, Dimming Curves, and Flicker-Free Operation

The effect functions of the Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom include a strobe with a range from 1 Hz to 20 Hz. This allows for the creation of dynamic lighting accents in shows, stage moments, or event settings.

The selectable PWM frequencies of 650 Hz, 1,530 Hz, 3,600 Hz, and 25 kHz allow for adaptation to different requirements. As a result, the spotlight can operate particularly quietly and flicker-free in suitable setups.

Robust metal housing and temperature-controlled fan cooling

The housing of the Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is made of metal and finished in black. This allows the spotlight to blend in well visually with stage, theater, and event environments.

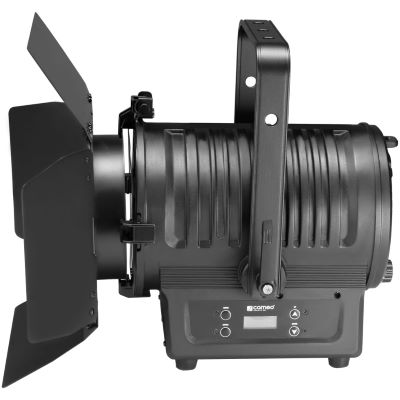

Cooling is provided by a temperature-controlled fan. A display with 4 buttons allows for convenient configuration directly on the unit. The protection rating is IP20, and the permissible temperature range is 0 °C to 40 °C.

Includes wing limiter and color filter frame

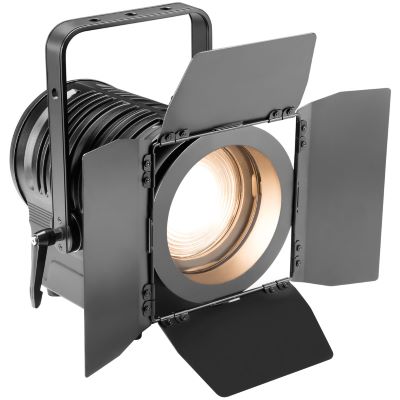

The package includes a rotatable barndoor and a color filter frame. These allow you to limit the beam angle and prepare the spot for typical theater and stage applications.

The combination of a Fresnel lens, manual zoom, warm white light, accessories, and professional control makes the Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom a versatile tool for lighting designers, theater technicians, event technology service providers, and stage companies.

Purchase Recommendation

The Cameo TS 200 WW LED Theater Spot 180W Warm White Fresnel Zoom is an ideal choice for anyone looking for a warm white LED Fresnel spot with high light output, precise dimming, and professional control. In particular, the stepless zoom range from 14° to 38°, the 180 W warm white LED, the high color rendering index, DMX512, RDM, and the rugged metal housing make this spotlight highly versatile.

If you need a theater spotlight for the stage, studio, events, presentations, or scenic lighting, the Cameo TS 200 WW LED Theater Spotlight 180W Warm White Fresnel Zoom offers a powerful combination of light quality, ease of use, accessories, and flexible control.

Features:

• LED theater spot with warm white light
• Powerful 180 W warm white LED
• Fresnel lens for an even light beam with a soft edge
• Stepless manual zoom from 14° to 38°
• High light output of 6,600 lm
• Illuminance: 67,500 lx at 1 m
• Color temperature: 3,100 K
• High color rendering index for natural color reproduction
• DMX512 and RDM compatible
• 16-bit dimmer resolution
• Strobe function from 1 Hz to 20 Hz
• Selectable PWM frequencies up to 25 kHz
• Flicker-free projection
• Rugged metal housing
• Temperature-controlled fan cooling
• Display with 4 buttons for configuration
• 3-pin and 5-pin DMX connectors
• Power-Twist power jacks for daisy-chaining
• Rotatable blade limiter included
• Color filter frame included

Technical Specifications:

• Product type: LED theater spot / Fresnel spotlight
• Model: Cameo TS 200 WW
• Photometric Specifications:
  • LED Specifications: 180 W warm white LED
  • Luminous flux: 6,600 lm
  • Illuminance: 67,500 lx at 1 m
  • Interchangeable lens: no
  • Interchangeable optics: no
  • Beam angle: 14°
  • Manual zoom: 14°–38°
  • LED PWM frequency: 650 Hz, 1,530 Hz, 3,600 Hz, 25 kHz
  • Dimmer resolution: 16 bits
• Colors:
  • Closest color temperature: 3,100 K
  • Halogen simulation (Redshift/DTW): No
  • Color rendering index: > 97
• Effects:
  • Strobe: 1 Hz – 20 Hz
  • Iris: no
  • Animation: No
  • Diaphragm slider: No
• Control:
  • Control protocols: DMX512, RDM
  • DMX control modes: 3
  • Standalone operating modes: Master/Slave
  • Data Input: 5-pin male XLR, 3-pin male XLR
  • Data Output: 5-pin female XLR, 3-pin female XLR
• Mains power:
  • Operating voltage: 100 V AC – 240 V AC / 50 – 60 Hz
  • Power consumption: 200 W
  • Fuse: T2A / 250 V
• Housing:
  • Housing material: Metal
  • Color: Black
• Cooling:
  • Cooling system: temperature-controlled fan cooling
• Environmental conditions:
  • Protection rating: IP20
  • Ambient temperature: 0 °C – 40 °C
  • Maximum humidity: 80%, non-condensing
• Dimensions and Weight:
  • Width: 320 mm
  • Height: 370 mm
  • Depth: 310 mm
  • Weight: 7.4 kg
