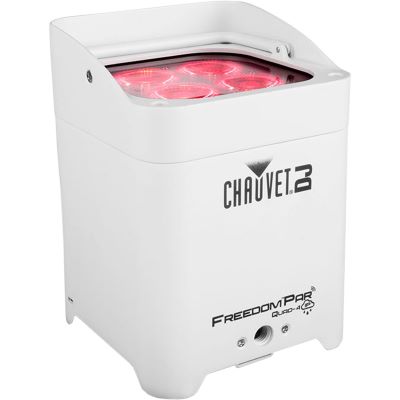

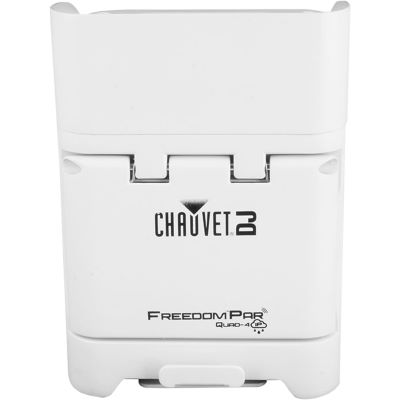

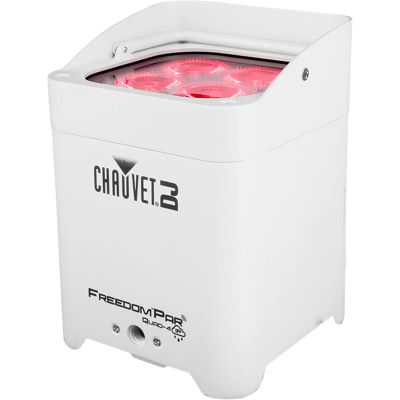

Chauvet DJ Freedom Par Quad-4 IP WH

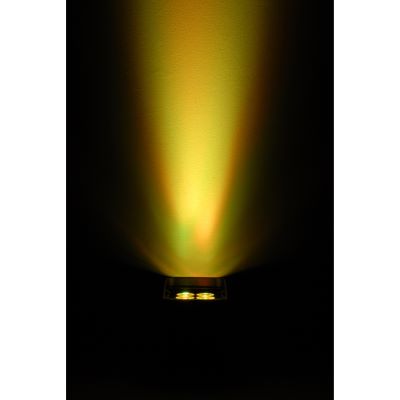

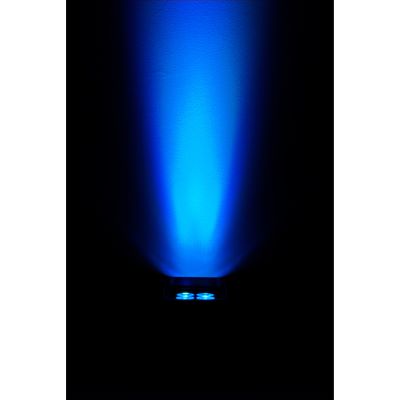

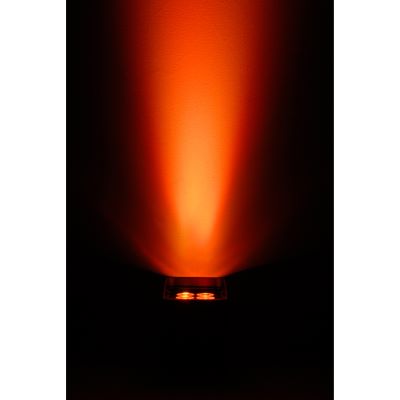

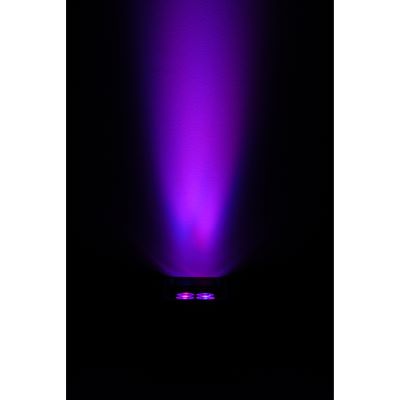

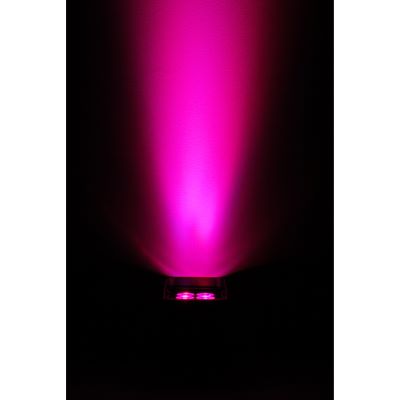

Freedom Par Quad-4 IP is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi transceiver. Its temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications and is available in black or white. Freedom Par Quad-4 IP works in Master/Slave mode with first-generation Freedom Pars and it has multiple wireless triggering and control options via the FlareCON Air and the FlareCON app. Convenient, wireless non-DMX control is available using the IRC-6 remote and customized colors can be created using the built-in LED display. Shine light where it is needed using the built-in adjustable kickstand and prevent light spillage with the built-in glare shield. Achieve smooth LED fading with built-in dimming curves and extend the battery’s lifespan with built-in discharge protection.

Features:

• Temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications
• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi transceiver
• Multiple wireless triggering and control options via the FlareCON Air and the FlareCON app
• Works in Master/Slave with first-generation Freedom Pars
• Shine light where it is needed using the built-in adjustable kickstand
• Built-in glare shield prevents light spillage
• Extend the battery’s lifespan with built-in discharge protection
• Convenient, wireless non-DMX control using the IRC-6 remote

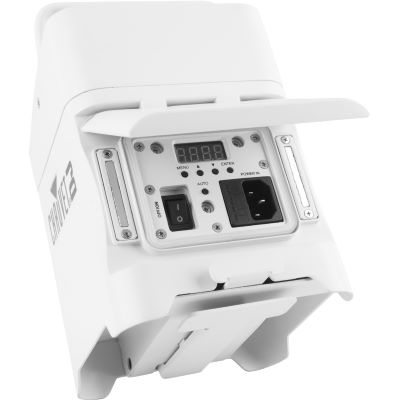

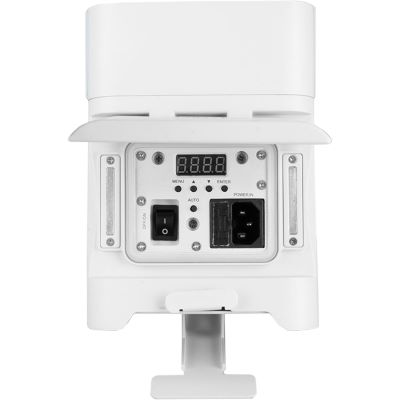

• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag
• Compact and lightweight design easily fits inside sticks of TRUSST
• Includet in delivery: IRC-6, Power Cord, Quick Reference Guide, Stickers

Technical Specificatons:

• DMX Channels: 4, 6 or 10
• Light Source: 4 LEDs (quad-color RGBA) 5 W, (2 A)
• Strobe Rate: 0 to 25 Hz
• PWM Frequency: 1,200 Hz
• Beam Angle: 15°
• Field Angle: 29°
• Maximum Run Time: (all on): up to 8 hours
• (single color): 20 hours
• Recharge Time: 7 hours
• Operating Frequency: 2.412 to 2.484 GHz
• Illuminance: 2,464 lux @ 2 m
• IP Rating: IP54
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 43 W, 0.6 A @ 120 V, 60 Hz (73 VA)
• 40 W, 0.3 A @ 230 V, 50 Hz (76 VA)
• Weight: 8.0 lb (3.6 kg)
• Size: 5.7 x 5.4 x 7.5 in (145 x 138 x 191 mm)
• Approvals: CE, FCC
