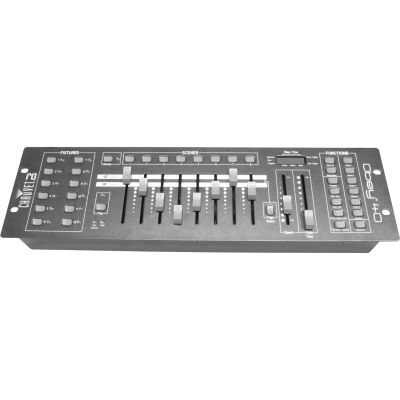

Chauvet DJ Obey 40 DMX Controller

The Chauvet DJ Obey 40 DMX Controller is the bigger brother of the Obey 10 and allows the control of up to 12 intelligent spotlights with 16 channels each like moving heads or LED effects. With the slightly larger dimension there is also a larger capacity for light control. The Obey 40 has 30 banks with 8 scenes, so it is possible to store up to 240 scenes. Designated controls (push-botton) and connections for stroboscope and fog effects facilitate control and overview of your light show and promise intuitive operation. Thanks to the MIDI input, scene and chase effects can also be triggered and controlled via MIDI.

Features:

• Versatile DMX controllers for flexible DMX applications
• Easy control of up to 12 intelligent spotlights with up to 16 channels
• Provides 192 DMX control channels and 30 banks of 8 scenes for a maximum of 240 scenes
• 6 memory locations for Chase programming with 240 scenes
• Even more effect possibilities thanks to fog and strobe control, beat activation, tap sync and auto run
• Designated Push-Botton controls with connections for stroboscope and fog effects by Chauvet DJ
• MIDI input triggers DMX scenes and chase effects via MIDI
• Convenient installation with the 3 U rack mounting kit
• DMX channels: 192
• DMX connector: 3-pole XLR
• Rack mounting: 3 U
• Input voltage: 9 V DC, 500 mA (external power supply: 100 to 240 V AC, 50/60 Hz)
• weight: 2,6 kg
• Size: 483 x 89 x 171 mm
• Included in delivery: Obey 40, external power supply, short manual

Instruction manual / Safety instructions:

• Manual (1.29 MB)
