Chauvet Wash FX 2

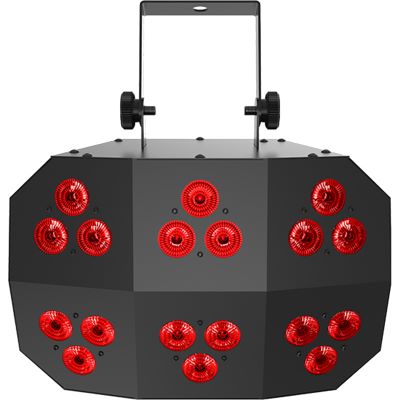

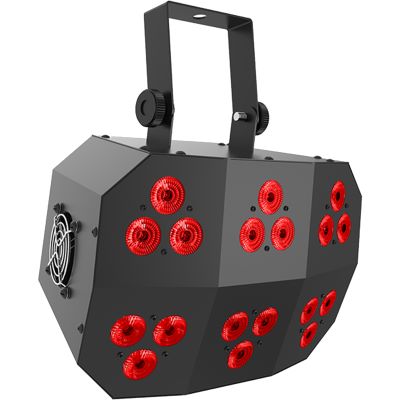

The Wash FX 2 can be used as a normal Wash effect or as an Eye-Candy effect with 6 zones in Chase mode. The device is equipped with 18 4-in-1 RGB+UV LEDs and can be operated either via DMX, remote control, in master/slave mode or in stand-alone mode.

Features:

• Versatile lighting effect for mobile entertainment
• Can be used as washlight or eye-candy effect with 6 zones in chase mode
• UV-LEDs for black light effect included

• Versatile control options such as stand-alone, DMX, IR or master/slave
• Remote control via IRC6 radio remote control
• Power Link saves time during wiring
• Is in good hands in the CHS-40 VIP Gear Bag (not included)

Technical data:

• DMX channels: 3, 8 or 28
• DMX connector: 3-pole XLR
• Light source: 18 LED (Quad-Color RGB+UV) 6 W, (2 A), 50,000 hours life typical
• Strobe rate: 0 to 25 Hz PWM frequency: 78,126 Hz Beam Angle: 40 degrees Field Angle: 64 degrees
• Luminous intensity: 1,795 Lux @ 2 m
• Power Link up to 12 devices

• Operating voltages: 100 to 240 V AC, 50/60 Hz (Auto-Range)
• Power consumption and current: 141 W, 0.6 A @ 230 V, 50 Hz

• weight: 2,6 kg
• Size: 12.2 x 5.5 x 9 in (310 x 140 x 230 mm)
• Optional control: IRC-6

Specs:

• Steuerung DMX: yes
• Light effect type: Beam Effect
• Light source: LED RGB + UV
• Montageart: has to be hanged / mounted
• Type: Lighting Effect
• Theme: Light and Show
