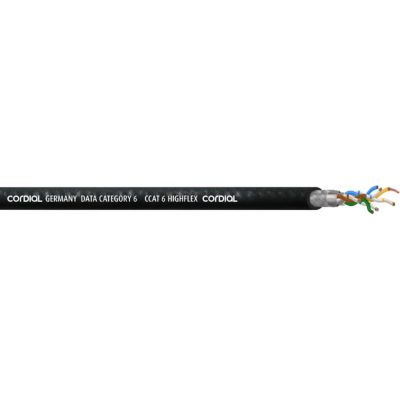

Cordial CCAT 6 HIGHFLEX BLACK

The CCAT 6 HIGHFLEX enables data transmission of up to 250 MHz.

The special design (separator cross) separates the wire pairs from each other, which reduces crosstalk between the wires. The double shielding of CU wire braiding and foil prevents external interference (SF/UTP). This special design achieves a higher bandwidth of up to 250 MHz (instead of 100 MHz for CCAT 5 and CCAT 5-PVC). It is suitable for drag chains due to its special construction and robust jacket and is therefore designed for mobile and moving applications.

Features:

• Highly flexible, robust, suitable for drag chains, reelable
• PUR jacket for mobile indoor/outdoor applications
• Data class Cat 6
• Overall shield SF/UTP
• 26 AWG 19/37, with 19 strands/conductors
• Length: 100m

Specs:

• Usage: Data Cable
• Type: Cable
• Theme: Cables and Pins
