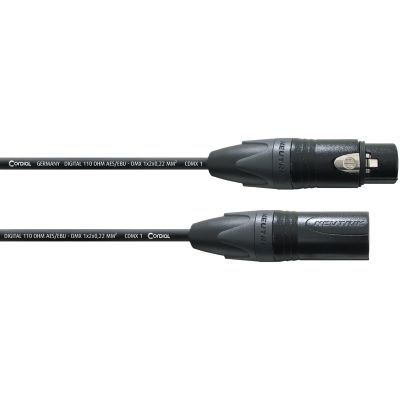

Cordial CDX 15-1 DMX Kabel 15m

The Cordial CDX 15-1 DMX cable is a high-quality cable with a generous length of 15 meters that has been specially developed for the transmission of DMX signals. It is often used in stage lighting and event technology to connect DMX controllers with lighting units such as spotlights or moving heads. Thanks to its robust construction and high-quality connectors, it ensures reliable signal transmission. With such a length, the Cordial CDX 15-1 DMX cable offers sufficient flexibility and scope for various applications in live events or studios.

• Color: black
• Length: 15 m
• 1 piece
• 5-pin
• Neutrik plug
• Plug: XLR 5-pin female / XLR 5-pin male
• Conductor cross-section: 0.22 mm²
• AWG: AWG 24
• Conductor construction: 7 x 0.20 mm
• Material: Tinned copper (CU)
• Conductor resistance: 95 Ω / km
• Shielding: Conductors made from tinned CU wires (spiral shield) + aluminum flow foil
• Capacitance conductor-conductor: 42 pF/m
• Conductor insulation: Polyolefin
• Diameter: 4.5 mm

Specs:

• Port A: XLR male
• Port B: XLR male 5-pin
• Usage: DMX cable
• Cable Length: 15 m
• Color: Black
• Type: Cable
• Theme: Cables and Pins
