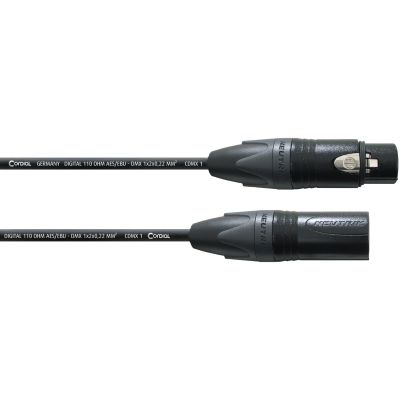

Cordial CDX 2-1 DMX-Kabel 2m
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Dresden: not on stock *
- Leipzig Connewitz: not on stock *
- Pick Up Point Oschatz: can be picked up immediately
- * The product can be delivered to this store within 2-4 business days. Simply select the "Pickup to Store" type of delivery during the checkout prozess.
Cordial CDX 2-1 DMX-Kabel 2m Product Details
Lighting technicians and technical service providers looking for a high-quality DMX cable with 5-pin connectors and 5-pin cable assignment will find the CDX-2 a reliable partner for the long term.
The inner workings of the CDMX-2 cable are protected from interference by a foil pair shield and a tinned copper wire braid.
The CDX-2 complies with the EIA 485 standard and DMX 512 specification. In order to withstand any load in the best possible way, Cordial paid attention to a particularly high tensile strength during development. This means that nothing can go wrong with the lighting control cable. A transparent shrink sleeve is attached to each end for individual cable labeling.
Note the logic of the DMX standard: it is the reverse of the XLR logic in the audio sector. With DMX, there is a female plug on the transmitter and a male plug on the receiver.
Features:
- By the meter: CDMX 2
- Overall jacket: PVC
- Assignment: CDX2
- Connector brand: NEUTRIK ®
- Connector: 1x NC5FXX; 1x NC5MXX
- Wire arrangement: 2 twisted pair
- Insulation: PE
- Category: Light DMX
- Material: Tinned copper
- Test voltage: 500 V rms
- Color: Black
- Length: 2 m
Specs:
- Port A: XLR male
- Port B: XLR male 5-pin
- Usage: DMX cable
- Cable Length: 2 m
- Color: Black
- Type: Cable
- Theme: Cables and Pins
