Cordial D-Sub Tascam/ 8x Stereo Klinke 6,3mm CFD 3 DVT

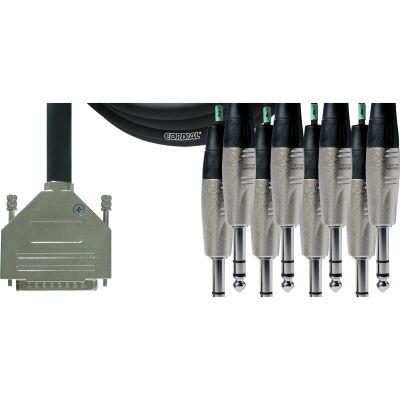

The Cordial D-Sub Tascam/ 8x Stereo Jack 6.3mm CFD 3 DVT has a length of 3 meters as well as a D-Sub and 8 jack stereo plug. The Digital Interface CFD DVT is used for balanced signal transport from D-Sub to jack. The assignment corresponds to the analog Tascam DSUB 25 specification (DA88). The D-Sub 25-pin male connector has a metal housing. The 8x 6.3mm jack plugs (balanced) are made of nickel plated metal.

Features:

• Cable: CMD 8
• Occupancy: DVT
• Plug mark: REAN
• Connector: 1 D-Sub; 8 jack stereo

Technical Specificatons:

• length: 3 m
• Conductor cross section (mm²): 0.14 mm²
• AWG: AWG 26
• Conductor structure (mm): 18 x 0.10
• Material: CU tinned
• Conductor resistance (Ohm/km): 130 Ohm/km
• Capacity conductor conductor (pF/m): 52 pF/m

Specs:

• Port A: 8 x mono jack 6.3
• Port B: Sub-D 25 male
• Usage: Multicore cable
• Cable Length: 3 m
• Inputs: 8
• Type: Cable
• Theme: Cables and Pins
