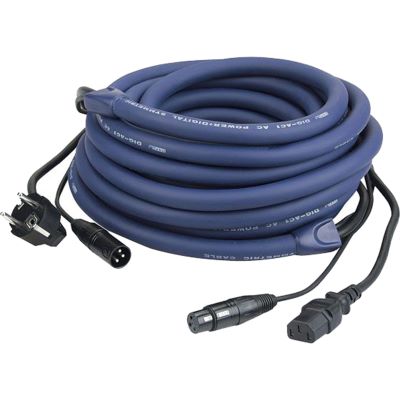

DAP DMX Schuko/XLR M - IEC/XLR F power signal cable

The DAP DMX Schuko/XLR M - IEC/XLR F Power Audio Signal Cable provides a 3P-XLR plug and socket, Schuko plug and an IEC socket.

Features:

• Power Audio Signal Cable
• Cable strands Ø mm: OFC 20x0, 10 (NF) & 3x1.5 (Power)
• Cable insulation: PE Red+White & PVC Black (Power)
• cable insulation Ø: 1,3mm (NF) & 3,7mm (Power)
• Filling material: paper+cotton yarn
• 1. protection: tinned copper braiding NF 96x0,10
• Outside insulation: PVC 15mm
• conductor resistance: 80 Ohm/Km
• Shield-Resistance: 30 Ohm/Km
• Capacity of inner pipe: 60 pF/m
• Shield / inner pipe: 78 pF/m
• Working temperature Min. / Max: -20~60 °C
• voltage overflash: 30V
• Nom. Impedance: 110 Ohm

Specs:

• Port A: Schuko/XLR
• Port B: IEC power connector female
• Usage: DMX cable
• Cable Length: 10 m
• Color: Blue
• Type: Cable
• Theme: Cables and Pins
