DAP Schuko/XLR M - IEC/XLR F - DMX / Power Powersignalkabel 20m

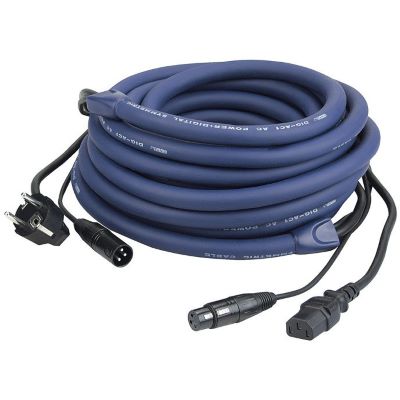

DAP presents the FP04, a blue power/DMX cable with 3P-XLR plug and jack. The cable also comes up with a Schuko plug and an IEC socket.

Features:

• DAP - FP04
• Rated current A: 16 A
• Flashover voltage: 30 V
• Impedance: 110 Ω
• Connector 1: Schuko plug
• Connector 2: IEC C13 female
• DMX connector IN: XLR 3P
• DMX connector OUT: XLR 3P
• Cable length: 20 m
• Contacts: 6
• Line resistance: 80 Ω/km
• Capacitance conductor;: 60 pF/m
• Capacitance conductor shield Inner conductor: 78 pF/m
• outer cable diameter: 15 mm
• outer insulation type: PVC
• Weight: 5.6 kg
• IP protection class: IP20 (indoor use only)
• Material: PVC
• Color: Blue
• Contact Type: Copper
• 1. shield: Twisted
• Shield resistance: 30 Ω/km
• Filler Material: Paper
• Leads: 6
• Maximum ambient temperature: 60 °C
• Minimum ambient temperature: -20 °C

Specs:

• Port A: XLR female
• Port B: XLR male
• Usage: DMX cable
• Cable Length: 20 m
• Color: Blue
• Type: Cable
• Theme: Cables and Pins
