dB Technologies ES 802

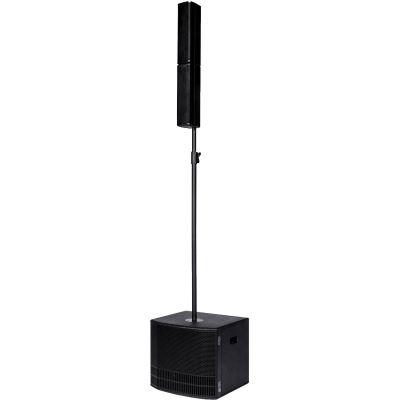

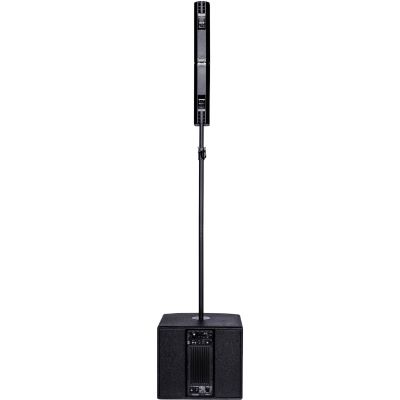

The dBTechnologies ES802 Entertainment System is an active, compact and powerful column speaker system.

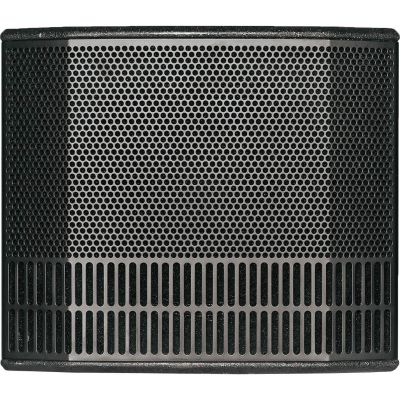

It includes a powerful 12" birch multiplex subwoofer and two ultra-lightweight 4x3" tops. These are connected by means of a sophisticated mechanical connection to form a single unit in just one movement. In addition to a higher maximum level, the ES802 also achieves a longer range by coupling the total of eight 3" neodymium speakers.

The system is powered by the latest generation of Digipro digital power amplifiers. It provides 1200W/PRG and reaches a maximum SPL of 124dB. The conscious renunciation of the use of fans ensures reduced susceptibility to dust and dirt and thus the lowest service expenditure as well as an extraordinarily long lifetime.

The integrated 24bit/48kHz digital processor offers eight presets selectable via rotary encoder: Flat, Bass Boost, Bass Reduction, Playback, Club, Vocal, Monitor and Anti-Feedback.

In addition, the ES802 system is equipped with active peak & RMS limiters and a thermal protection circuit.

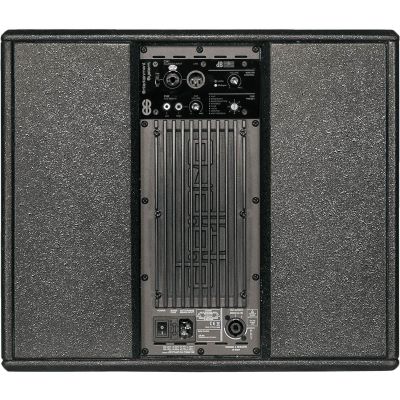

As inputs, ES802 offers an XLR/jack combo connector that can be set to microphone or line level via an input selector switch. A stereo RCA input is also available for connecting CD/MP3 players.

For larger applications, two ES802 can be expanded into one system via the XLR-Out. The satellites are connected via Speakon connectors, which are equipped with mounts for 25mm speaker stands.

Features:

• 12"/8x3" active system
• 12" subwoofer
• 1200W peak power
• DSP presets
• Frequency response[-10dB]: 37-15,000 Hz
• Max SPL: 124 dB
• MF-HF: 8x 3" Neodymium
• SUB: 12"
• Beam angle: 95x65°
• Power amplifier: Digipro® G3, Class-D 1200 W/PRG
• Cooling: Convection
• Controller: DSP 24 bit/48 kHz
• System Presets: 8
• Limiter: Dual Active, Peak, RMS, Thermal
• crossover frequency LF-HF: 206 Hz
• Controls: 1x rotary encoder for presets, 1x audio signal LED, 1x audio limiter LED
• Mic/Instrument input: 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
• Link output: 1x XLR
• Power supply: VDE
• tops
• Housing: Polypropylene PP
• Dimensions: 95 mm x 360 mm x 137 mm
• Tripod mount: 25mm
• Weight:1.9kg
• subwoofer
• Case: 15mm birch plywood, black
• Handles: 2x lateral
• Dimensions: 465 mm x 400 mm x 430 mm
• Weight: 16.4Kg
• scope of supply
• 2 x ES802 top
• 1 x ES802 Sub
• 1 x separable spacer 25mm
• 1 x Speakon cable (NL4) 2m

Specs:

• Power: 1200 W
• Housing Material: Multiplex
• Pole Mount: yes
• Woofer: 1 x 12
• Tweeter: 8 x 3
• Set Offer: no
• Bluetooth: No
• Type: PA System
• Theme: PA and Sonication
