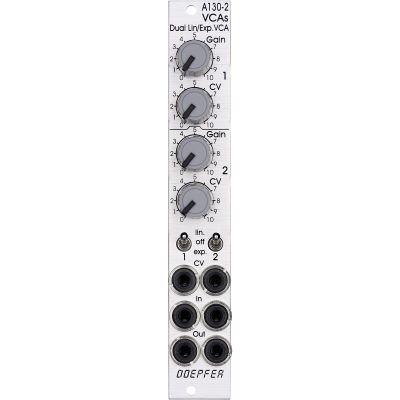

Doepfer A-130-2 Dual lin/log VCA Slim Line

Doepfer A-130-2 Dual lin/log VCA Slim Line - Compact dual VCA with flexible characteristics

If you are looking for a versatile, space-saving VCA module for your Eurorack system, the Doepfer A-130-2 Dual lin/log VCA Slim Line is the right choice. This slim module combines two independent voltage controlled amplifiers in a width of just 4 HP, offering maximum functionality in a minimum of space - ideal for compact modular setups or as an extension to existing systems. With switchable characteristics (linear or exponential) and controls for gain and CV attenuation per channel, the A-130-2 provides maximum flexibility for dynamic sound design.

Doepfer - pioneer of the modular world

The Doepfer brand has been synonymous with pioneering developments in the field of analog synthesizer technology for decades. As one of the first manufacturers in the Eurorack format, Doepfer has had a lasting impact on the modular synthesizer landscape and still offers a wide range of reliable, practical modules today. The Slim Line series, which also includes the Doepfer A-130-2 Dual lin/log VCA Slim Line, impresses with its compact design and high functionality - perfect for anyone who doesn't want to waste space in their rack.

With a clear operating structure, high-quality components and a focus on musicality, Doepfer always delivers modules that impress both in the studio and on stage. The A-130-2 is a prime example of this philosophy: clear, versatile and absolutely reliable.

Technical details - Two VCAs in one compact module

The Doepfer A-130-2 offers two completely independent VCAs (Voltage Controlled Amplifiers), each of which can be individually adjusted. Each channel has a controller for the basic amplification (gain) and a CV attenuator, allowing both static level adjustments and dynamic control via external modulation sources to be implemented precisely.

A particular highlight is the ability to switch the characteristic of each channel separately between linear and exponential. This makes the A-130-2 suitable for both audio and CV signals, as linear response is ideal for control and modulation signals in particular, while exponential response provides a more natural volume response for audio signals.

Each channel also has a practical mute function that allows quick and precise interventions in a running patch - perfect for performative applications or for selectively fading signals in and out. Despite its wide range of functions, the module has a very low power consumption: only 30 mA each at +12 V and -12 V.

With a depth of just 50 mm, the module also fits into shallower housings and can therefore be flexibly integrated into a wide variety of Eurorack cases. The narrow width of 4 HP makes it an ideal candidate for compact systems in which every unit is valuable.

Why the Doepfer A-130-2 is a must in every Eurorack

VCAs are among the essential modules in any modular synthesizer - they control volume, modulation intensity and enable dynamic sound progressions. With the Doepfer A-130-2 Dual lin/log VCA Slim Line, you get two of these important amplifier units in one compact module that impresses with its sophisticated features and high sound quality.

The option to choose between linear and exponential characteristics allows you to use it in a wide range of applications - from subtle modulation and controlled volume progressions to complex signal routing. The simple operation and clear structure also make the module attractive for beginners in the modular sector, while the high-quality construction and flexibility will convince even experienced synthesizer enthusiasts.

Whether as a central element in a small setup or as a useful extension in a large modular system, the A-130-2 is versatile, space-saving and powerful - a classic "utility" module that no system should be without.

Features:

• Compact 2-channel VCA in slim line format

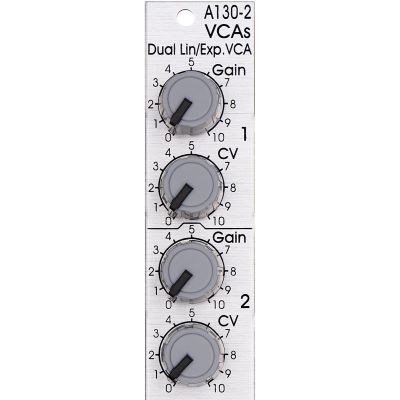

• Controls per channel for basic amplification (gain) and CV attenuation

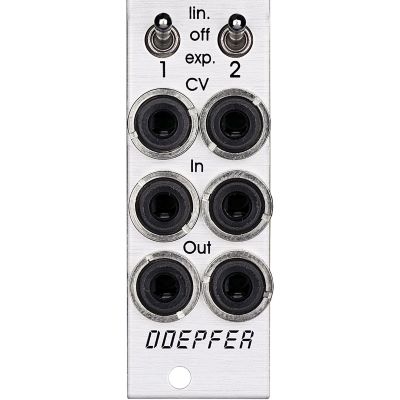

• Switchable characteristic: linear or exponential
• Mute function per channel
• Suitable for audio and CV signals
• Current requirement: 30 mA at +12 V / 30 mA at -12 V
• Width: 4 TE (HP)
• Installation depth: 50 mm
• Manufactured by Doepfer in Germany

Specs:

• Type: Amps
• Theme: Recording and Studio
