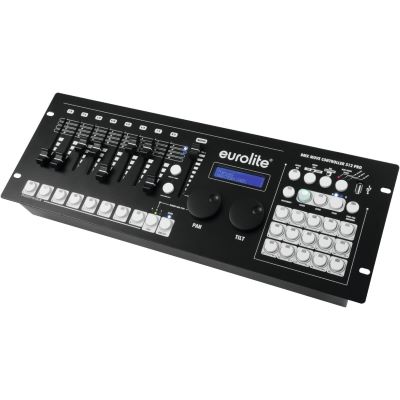

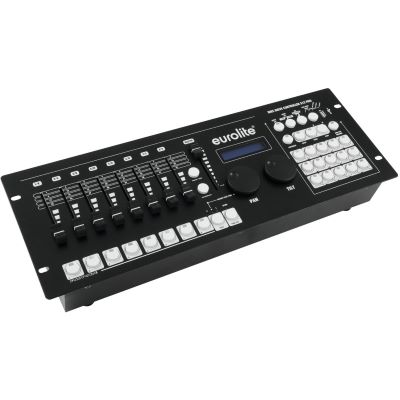

EUROLITE DMX Move Controller 512 PRO

The EUROLITE DMX Move Controller 512 PRO is a 512-channel DMX light controller with effect generator for movements. It offers 512 DMX channels on 34 control channels and is suitable for 24 devices with a maximum of 34 control channels each.

Features:

• DMX lighting control panel for DMX lighting effect devices such as moving heads, scanners and LED spotlights with RGBW colour mixing
• 512 DMX channels freely assignable to 34 control channels and individually invertible (soft patch)
• For 24 devices with max. 34 control channels each
• USB connection for data storage of light shows
• Fast programming thanks to 9 integrated motion patterns and 6 color effects (PAN/TILT position, fade time and process speed adjustable)
• Multiple motion patterns and color effects can be used simultaneously
• 30 programmable chases with up to 100 scenes each
• Chaser playback manually, music- or time-controlled possible
• 30 programmable scenes
• 3 DMX device levels controllable

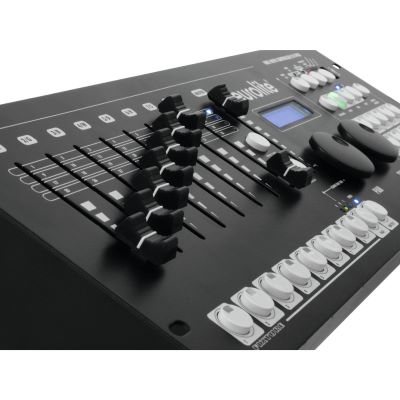

• 8 motorized DMX channel faders provide user-friendly control options
• The motor faders give you a precise overview of the parameters when switching between the individual banks, running light sequences and scenes

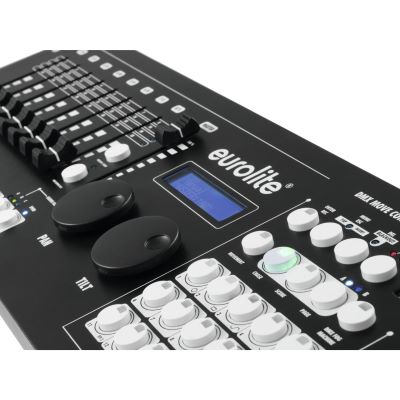

• 2 Jogwheels for Pan/Tilt
• Master fader for color and dimmer channels
• blackout function
• Coloured illuminated keys for easy orientation
• Music control via built-in microphone
• Backlit LCD display (2 x 16 characters)
• RDM functions (DMX address setting and identification)
• 3-pin XLR connector
• Firmware update via USB
• Rubberized feet for use as table-top unit
• Rack mounting with 4 height units

Technical Specificatons:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 20 W
• Number of control channels: 512
• Savable scenes: 30
• Storable sequences: 30 with max. 485 steps

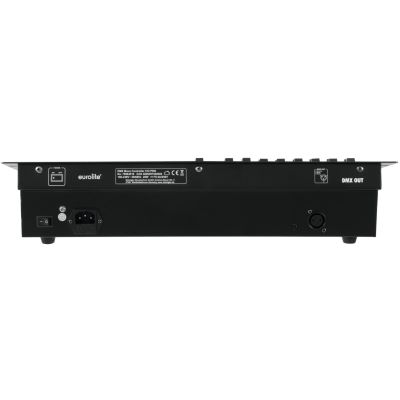

• DMX512/RDM output: 3-pin XLR female connector
• Suitable storage media: USB devices (FAT32)
• Dimensions (LxWxHx): 483 x 170 x 107 mm
• Rack mounting with 4 HE
• weight: 3,9 kg

Instruction manual / Safety instructions:

• Manual (10.1 MB)
