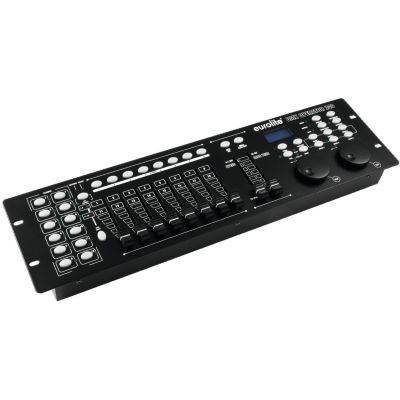

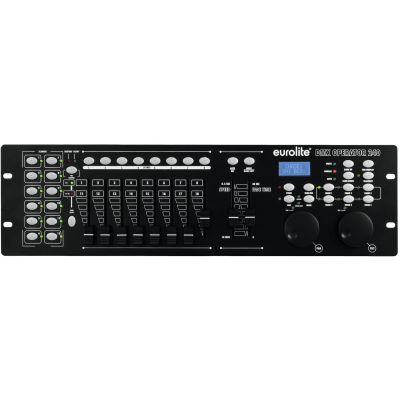

EUROLITE DMX Operator 240 Controller

Features:

• DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
• 12 fixtures with up to 20 channels each can be controlled
• 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
• USB port for storing program data
• 240 programmable scenes (30 banks x 8 scenes)
• 6 programmable chases with 240 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• Fade between scenes adjustable between 0-30 s
• Copy function for scenes and banks
• 2 DMX fixture levels can be controlled, each with up to 10 channels
• 8 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Sound control via built-in microphone or line input with adjustable sensitivity
• Backlit LCD (2 x 8 characters)
• RDM support (DMX address setup and identify)
• Fog machine control possible
• Supports standard MIDI
• 3-pin XLR connector with polarity selector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Power supply: 100-240 V AC, 50/60 Hz via power unit included in the delivery
• Power consumption: 2.7 W
• Number of control channels: 240
• Storable scenes: 240 (8 each in 30 memory banks)
• Storable chases: 6 with 240 steps each
• Sound control: via built-in microphone or via audio input
• Audio input: RCA
• Input sensitivity: 0.1-1 V
• DMX512/RDM output: 3-pin XLR connector with polarity selector
• MIDI input: 5-pin DIN
• Fog machine connector: 5-pin DIN
• Available storage media: USB devices (FAT32)
• Dimensions (L x W x H): 483 x 135 x 71 mm; Rack installation with 3 U
• Weight: 2 kg
