EUROLITE DMX Split 8X Splitter 3pol

EUROLITE DMX Split 8X Splitter 3pol - Reliable DMX signal distribution for professionals

The EUROLITE DMX Split 8X Splitter 3pol is the professional solution for anyone who needs stable, clean and reliable DMX signal management. Whether for large events, everyday touring, fixed installations in theaters or mobile setups - this DMX splitter ensures an even distribution of the input signal to up to eight electrically isolated outputs. It offers maximum operational reliability, a robust design and extremely easy integration into existing DMX infrastructures.

Thanks to 3-pin XLR sockets, a switchable terminating resistor and independent drivers for each output, the EUROLITE DMX Split 8X is ideally equipped for professional use in event technology. Thanks to passive convection cooling, the device operates completely silently - an invaluable advantage in studios, theaters and other noise-sensitive environments.

EUROLITE - Reliable event technology for stage, studio and installation

EUROLITE stands for practical, high-quality technology in the field of lighting and stage technology. Whether for DJs, technicians or installers - EUROLITE offers equipment that works, works reliably and fits seamlessly into any application. The DMX Split 8X Splitter 3pol is a prime example of this philosophy: It offers everything a professional splitter needs to do without unnecessary frills - robust, powerful and reliable.

Technical details of the EUROLITE DMX Split 8X splitter

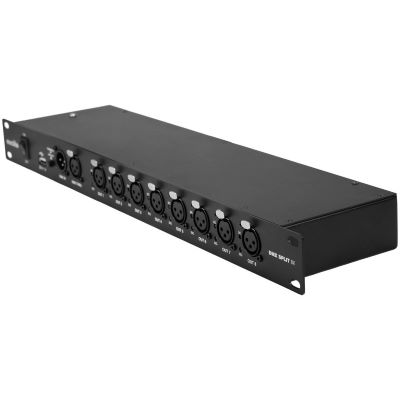

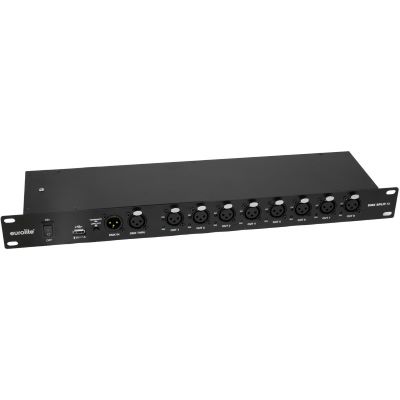

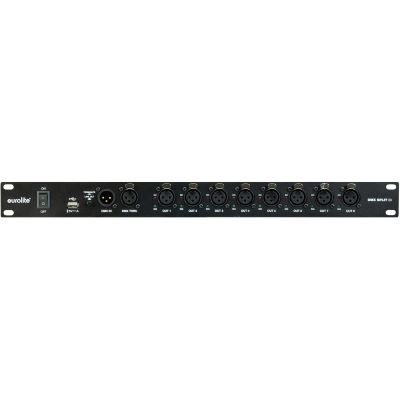

The heart of the device is the powerful DMX splitter, which splits an incoming DMX signal to eight separately controlled outputs. All outputs are galvanically isolated - this means maximum safety for your devices and protection against signal interference caused by ground problems or ground loops. In addition, each output has its own driver and a status LED for easy monitoring during operation.

Another plus point: the splitter has a switchable terminating resistor, which is particularly important for longer cable runs or open DMX ends to prevent reflections in the data stream. In addition to the eight outputs, there is also a DMX bypass output that can be used to loop through the input signal directly - ideal for passing through to other splitters or devices.

Installation in a 19-inch rack (1 U) is no problem thanks to the standardized housing with a width of 48.3 cm. With an installation depth of just 14 cm, the device also fits into shallower cases and is therefore ideal for mobile use. Despite its compact dimensions, the splitter impresses with its sturdy metal construction and a total weight of 1.65 kg - robust and suitable for touring.

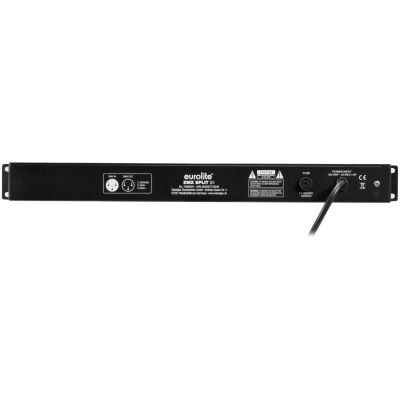

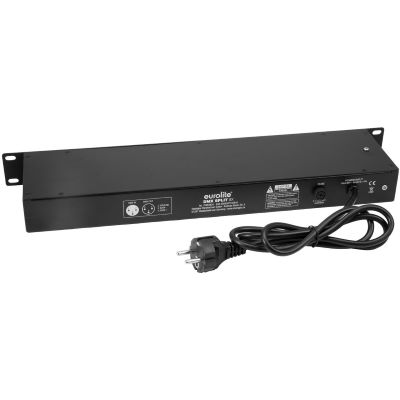

Power is supplied via a fixed power cable with a safety plug. The splitter works with 100-240 V AC at 50/60 Hz and has a replaceable fuse (F 1 A, 5 x 20 mm). The device also has a type A USB connection (1 A), for example to power small additional devices.

For particularly quiet environments - such as recording studios, museums or theaters - the silent passive convection cooling is a decisive advantage. The splitter falls under the "Class 0" noise classification, which means: no fan noise, no disturbing noises - just pure function.

Why the EUROLITE DMX Split 8X is the perfect choice

A stable and interference-free DMX data flow is the backbone of any lighting installation. The EUROLITE DMX Split 8X Splitter 3pin guarantees exactly that - with maximum signal separation, robust construction and easy handling. Whether you are running complex shows, operating a fixed installation or want to securely network your mobile equipment - this splitter is made for it.

Especially in professional applications with long DMX lines or many connected devices, it provides the necessary structure, overview and operational reliability. Galvanic isolation protects expensive lighting technology from overvoltage and ground problems - a must for anyone who relies on long-term functionality.

The splitter also scores with its reliability in daily touring operations. Thanks to its rack dimensions, robust housing and fixed mains connection, installation in the case is quickly completed and ready for use. No fan, no moving parts, no interference - just a splitter that simply works.

Scope of delivery and immediate use

The scope of delivery includes the EUROLITE DMX Split 8X Splitter 3pol and detailed operating instructions. This means that the device is ready for use straight out of the box. All you need is a suitable 19" rack space and a DMX input signal - and you can distribute your lighting system in a structured and professional manner.

Features:

• DMX distributor for splitting a DMX input signal to 8 electrically isolated outputs
• 3-pin XLR sockets - built-in version of inputs and outputs
• Each DMX output with its own driver and status display
• Switchable terminating resistor to stabilize the data stream
• 1x DMX bypass output for forwarding the input signal
• Housing for 19" rack installation (1 U), installation depth: 14 cm
• Passive convection cooling - silent operation (class 0)
• Robust metal housing with black paint finish
• Power supply via fixed mains cable, 100-240 V AC, 50/60 Hz
• USB type A connection (1 A) for powering external devices
• Total connected load: only 5 W - energy-saving and efficient
• Replaceable fuse: 5 x 20 mm, F 1 A
• Weight: 1.65 kg - stable and suitable for transportation
• Ideal for stage, trade fair construction, store fitting, studio, club and permanent installation
