EUROLITE EC-2 DMX Controller

EUROLITE EC-2 DMX Controller – Compact Control Center for Your Stage

The EUROLITE EC-2 DMX Controller is the ideal solution for anyone looking for simple yet effective control of DMX-compatible effects such as fog machines, strobes, or blinders. Despite its compact size, the EC-2 offers reliable performance and practical usability, making it attractive to both beginners and professionals in the field of lighting technology. Thanks to its battery-powered operation, the controller is particularly flexible and can be used even where no power supply is available—for example, in mobile applications, on small stages, or in rehearsal rooms.

With its robust construction, a sturdy metal desktop enclosure, and a well-thought-out operating concept, the EUROLITE EC-2 impresses not only technically but also in practical use. The controller truly shines when used with individual DMX devices or small setups—it’s straightforward, reliable, and space-saving.

EUROLITE—Experience and Innovation in Event Technology

For years, the EUROLITE brand has been one of the established names in event technology. With a broad product range spanning from simple lighting systems to complex DMX control systems, EUROLITE offers solutions for every need—from small clubs to large stages. The focus is on striking a balance between quality, functionality, and price. The EUROLITE EC-2 DMX Controller is a prime example of this philosophy: robustly built, versatile, and intuitive to use.

Technical Details of the EUROLITE EC-2 DMX Controller

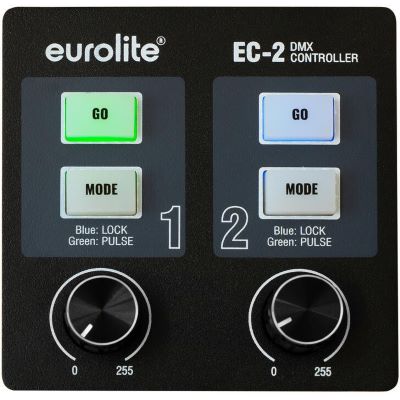

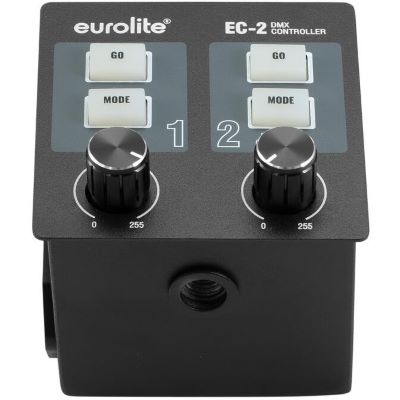

The EC-2 is a 2-channel DMX controller that is ideal for directly controlling fog machines, strobes, wash lights, or other effects that require only a few DMX channels. Each channel features its own backlit trigger and mode button, as well as a rotary knob for precise adjustment of the DMX value. This intuitive layout makes the controller particularly easy to operate—even in low-light conditions or during hectic stage operations.

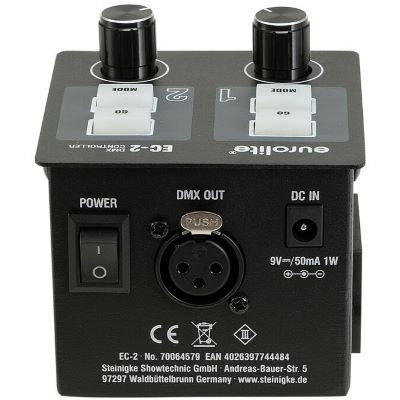

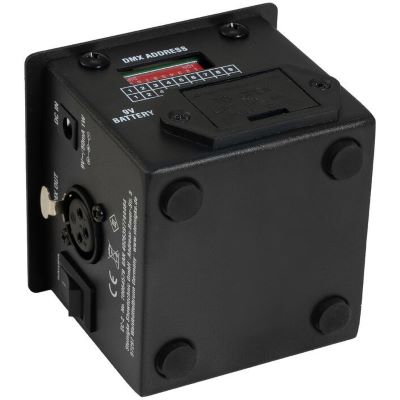

The DMX output is provided via a standardized 3-pin XLR jack (panel-mount version), ensuring the controller is compatible with common DMX devices. Another advantage: Power can be supplied flexibly via the included external power supply or, optionally, via a 9V battery. This gives you independence from power sources and allows you to use the controller in mobile setups or outdoor environments (taking into account protection class IP20).

Weighing just 0.42 kg and with compact dimensions of 8 x 8 x 8.2 cm, the EC-2 is extremely space-saving. The M8 threaded insert also allows it to be mounted on microphone stands or other mounts—ideal for flexible positioning during live performances.

Why the EUROLITE EC-2 Is an Excellent Choice

Especially for small events or mobile applications, a large DMX controller is often unnecessary—this is where the EUROLITE EC-2 DMX Controller comes into play. It offers all the essential functions for precisely and efficiently controlling DMX-compatible devices without having to navigate through complex menus or deal with space constraints.

The combination of simple operation, rugged construction, and flexible power supply makes the EC-2 a versatile tool for a wide range of applications. Whether you want to quickly fire up a fog machine, flash a strobe, or control a blinder—with the EC-2, you have full control without any unnecessary hassle.

The EC-2 is also a practical addition for permanent installations, small theater venues, or technical rehearsals when it comes to precise, manual DMX control. Its minimalist design and intuitive user interface make it exceptionally user-friendly—ideal for less experienced users or technical staff with basic requirements.

What’s Included and Ready to Use Right Away

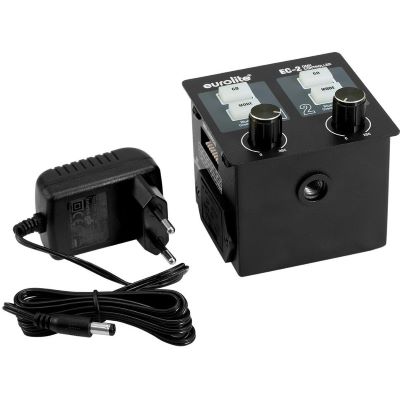

The EUROLITE EC-2 comes with everything you need for immediate use: In addition to the controller itself, an external power supply and a detailed user manual are included. For mobile use, a 9V E-Block battery can also be used (not included).

This means you can get started right after unboxing—whether you’re running a small show or want to perfect your setup in the rehearsal room.

Features:

• Compact 2-channel DMX controller for fog machines, strobes, blinders, and other stage effects
• Backlit trigger and mode buttons per channel for intuitive operation
• Controls for precise adjustment of DMX values
• DMX output via 3-pin XLR connector (panel-mount version)
• Power supply via AC adapter or 9V battery
• Extremely compact dimensions: 8 x 8 x 8.2 cm
• Lightweight at only 0.42 kg—ideal for mobile use
• Robust desktop console housing made of painted metal

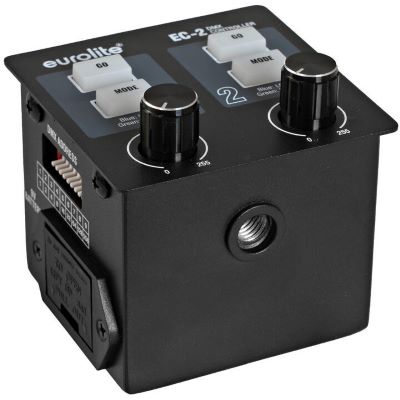

• M8 threaded insert for mounting on microphone stands or brackets
• Protection class SK III, protection rating IP20
• Total power consumption of only approx. 1 W – energy-efficient
