EUROLITE LED BAR-12 QCL RGB+UV Leiste

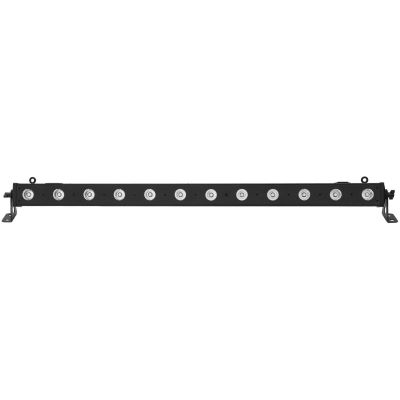

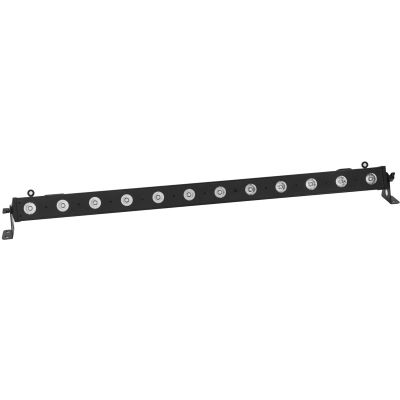

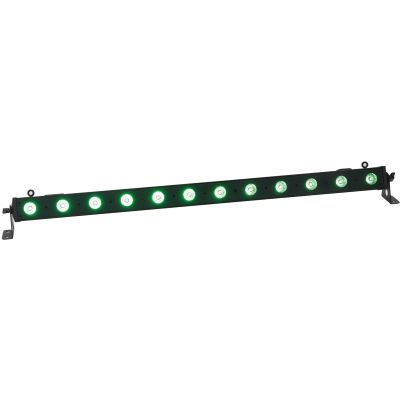

The EUROLITE LED BAR-12 QCL RGB-UV is a light effect bar with RGB+UV color mixing. The strip is black and 1m long.

Features:

• 12 powerful 4W RGB+UV LEDs (4in1)
• Auto, Music, Master/Slave and DMX mode
• Integrated show programs in auto and music mode
• Direct color selection for 20 colors
• Infinitely variable RGB+UV color mixing, color change, color fade, dimmer and strobe effect
• Addressing and settings via control unit with 4-digit LED display
• Music control via built-in microphone with adjustable microphone sensitivity
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom-powered USB jack for QuickDMX receiver (accessory)
• 2, 4, 5, 6 or 9 DMX channels selectable
• Pivoting mounting bracket
• Loop-through output for power supply of up to 8 devices
• LED: 12 x high-power 4 W 4in1 QCL RGB/UV (homogeneous colour mixing)
• Control: QuickDMX via USB (optional); stand-alone; music control via microphone; DMX
• Projection: flicker-free
• Effect: Stroboscope effect; UV

Technical data:

• Power supply: 100 - 240 V AC, 50/60 Hz
• Total connected load: 25 W
• LED: 12 x high-power 4 W 4in1 QCL RGB/UV (homogeneous colour mixing)
• Flash rate: 0 - 20 Hz
• DMX channels: 2, 4, 5, 6, 9

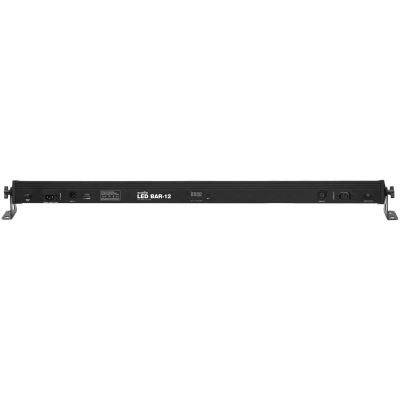

• DMX input: 1 x 3-pin XLR (M) built-in version
• DMX output: 1 x 3-pin XLR (W) built-in version
• Protection class: IP 20
• Power connection: Power supply for cold appliances (M) Built-in version Power connection cable with earth contact (supplied)
• Current output: 1 x cold appliances (W) Built-in version
• without fan
• Control: QuickDMX via USB (optional), stand-alone, music control via microphone, DMX
• Beam angle: 20°.
• Housing colour: black
• Length: 107 cm
• height: 10,3 cm
• depth: 6,5 cm
• weight: 3,1 kg

Instruction manual / Safety instructions:

• Manual (1.93 MB)
