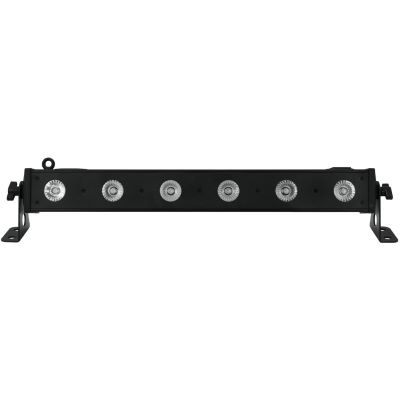

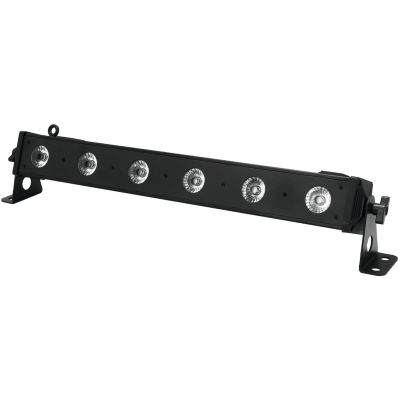

EUROLITE LED BAR-6 QCL RGBW Leiste

EUROLITE presents the LED BAR-6 QCL RGBW bar with 6 x 4W 4in1 LED.

Features:

• Standalone or DMX operation.
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom powered USB socket for QuickDMX, CRMX and WDMX receivers (accessories)
• Control panel with LED display for easy configuration
• Continuous color mixing, color change, dimmer and strobe effect
• Equipped with 6 x 4W 4in1 LED in red, green, blue and white colors
• Swivel mounting bracket
• Mains input and output for easy interconnection of up to 8 devices
• LED: 6 x high-power 4 W 4in1 QCL RGBW (homogeneous color mixing)
• Operable in 2; 4; 5; 6; 9 CH DMX mode
• The device is cooled by passive convection cooling
• Controllable via stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); W-DMX by Wireless Solution (optional); CRMX by LumenRadio (optional)
• Already pre-programmed with LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
• Flicker-free projection
• Effect: Stroboscope effect

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 15 W
• Protection class: IP20
• Power connection: Power supply IEC (M) built-in version Power connection cable with safety plug (included)
• Power output: 1 x IEC (W) built-in version
• Lamp type: LED lamp
• LED: 6 x high-power 4 W 4in1 QCL RGBW (homogeneous color mixing)
• flash rate: 0 - 20 Hz
• DMX channels: 2; 4; 5; 6; 9

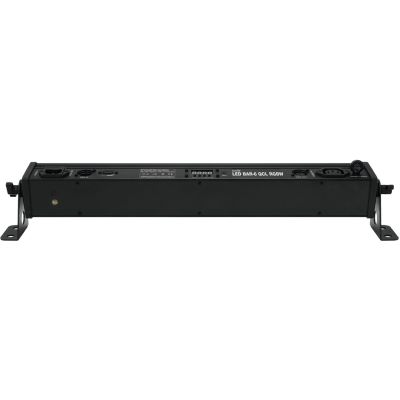

• DMX input: 1 x 3-pin XLR (M) built-in version
• DMX output: 1 x 3-pin XLR (W) built-in version
• Cooling: Passive convection cooling
• Control: Stand-alone; DMX; Music control via microphone; QuickDMX via USB (optional); W-DMX by Wireless Solution (optional); CRMX by LumenRadio (optional); LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
• Beam angle: 17
• beam angle (1/2 Peak): 17°
• beam angle (1/10 peak): 33°
• Housing color: Black
• Display type: 4-digit 7-segment LED display
• Length: 58.5 cm
• Depth: 6.5 cm
• Height: 10 cm
• Weight: 1.66 kg
• Noise classification: Class 0 (no noise at all)
