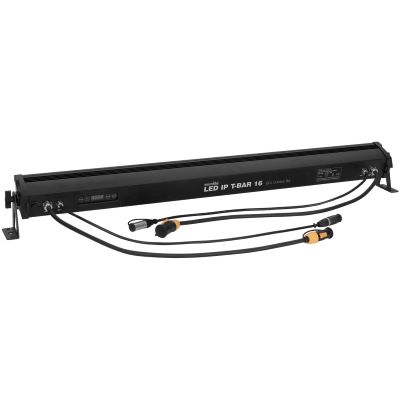

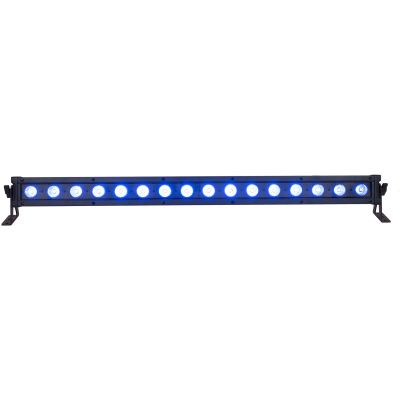

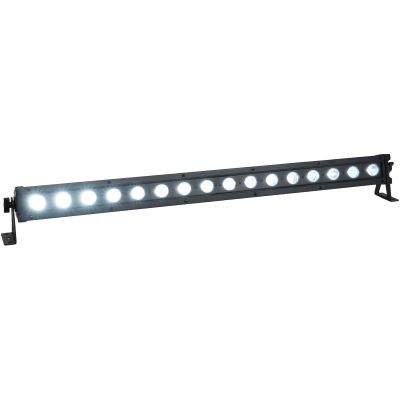

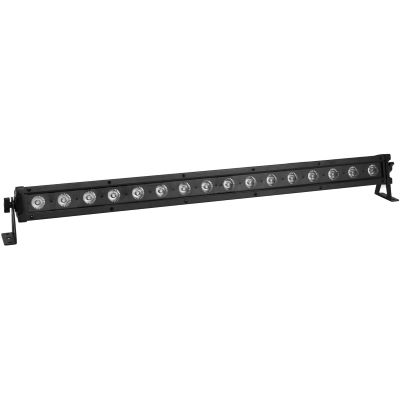

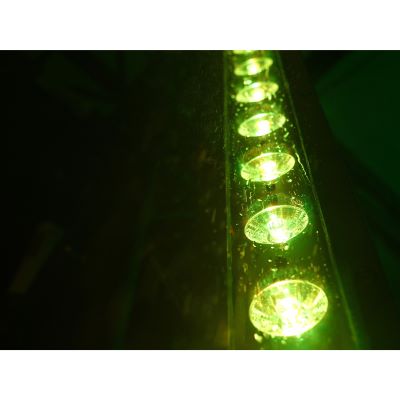

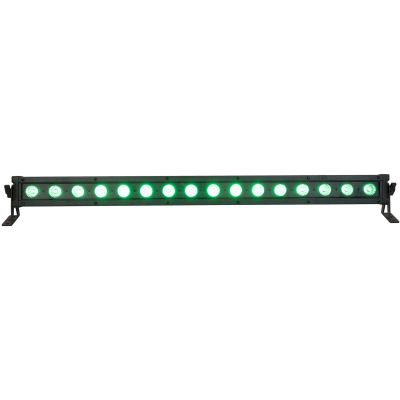

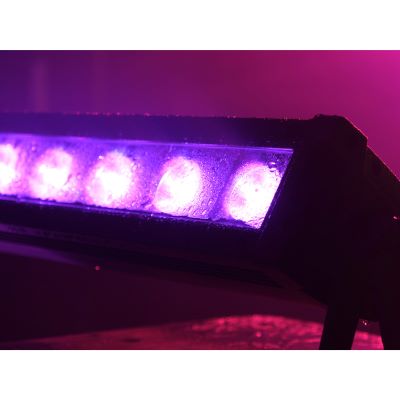

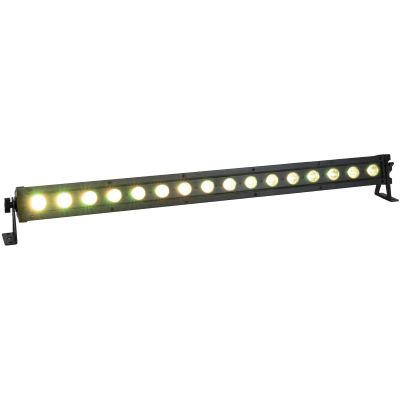

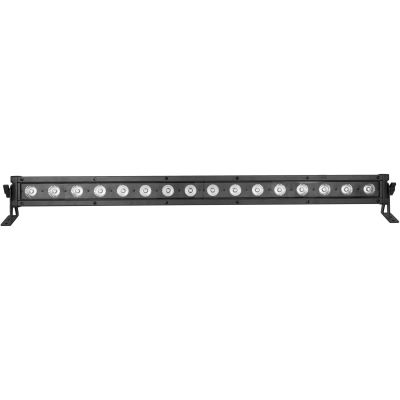

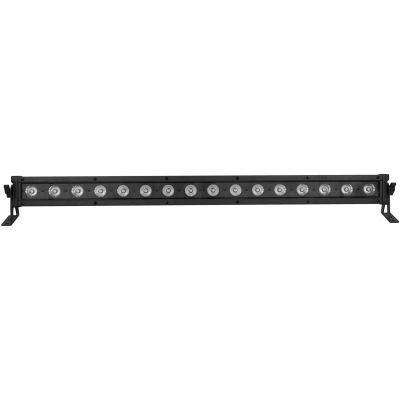

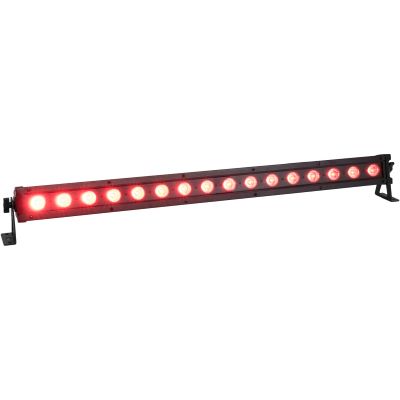

EUROLITE LED IP 65 Bar 16 QCL 20° RGBW

This product is a weatherproof (IP65) bar with high quality RGBW color mixing from Eurolite. Thanks to the waterproof housing, the powerful LED bar is perfectly suitable for outdoor applications. The EUROLITE LED IP T-Bar 16 QCL bar convinces with 16 powerful 8W RGBW LEDs (4in1) and offers integrated show programs in auto mode, as well as stepless RGBW color mixing with dimmer and strobe effects.

Features:

• 16 powerful 8W RGBW LEDs (4in1).
• Suitable for outdoor use (IP65)
• Auto, master/slave and DMX mode
• Integrated show programs in auto mode
• Direct color selection for 19 colors
• Stepless RGBW color mixing, color change with adjustable speed, dimmer and strobe effect

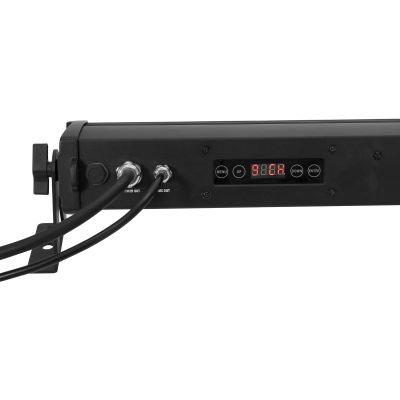

• Addressing and setting via control unit with 4-digit LED display
• Convenient remote control via included IR remote control EUROLITE IR-7
• 3, 4, 5, 6 or 9 DMX channels selectable

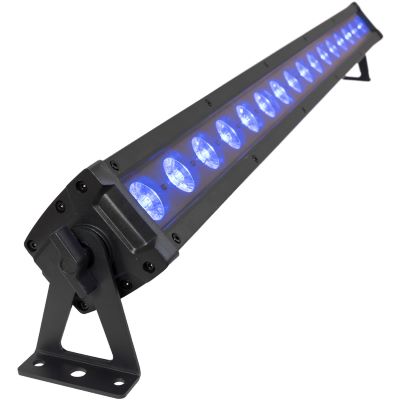

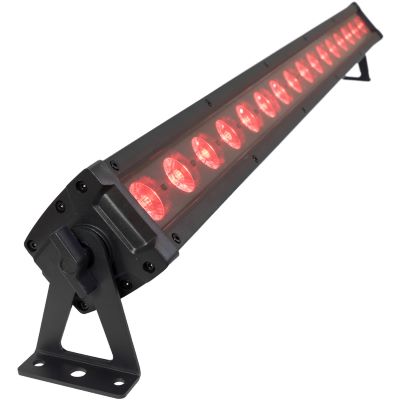

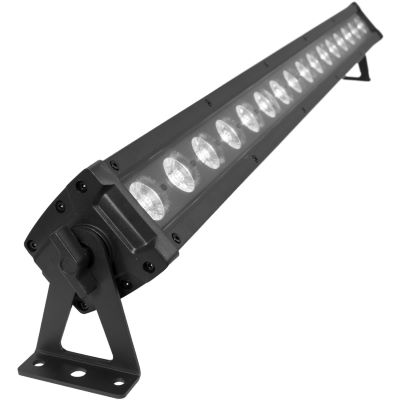

• Swivel mounting bracket
• Switching power supply technology for mains voltage between 100 and 240 volts
• IP T-Con mains connections for easy series connection of up to 8 units
• LED: 16 x high-power 8 W 4in1 QCL RGBW (homogeneous colour mixing)
• Operable in 3; 4; 5; 6; 9 CH DMX mode
• Device cooling via passive convection cooling
• Controllable via DMX; Master/Slave function; Stand-alone; IR remote control (included)
• Is already pre-programmed in the Light J software
• Flicker-free projection
• Suitable for outdoor use

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 50 W
• Protection class: IP65
• Protection class: SK I

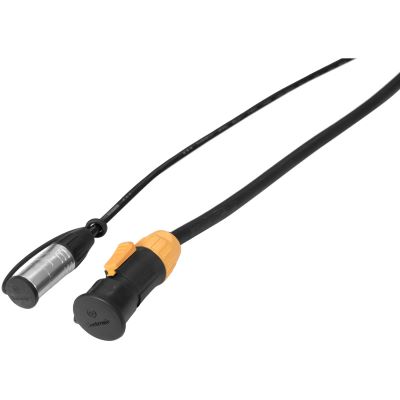

• Power connection: Fixed IP T-Con (M) power connection cable with protective contact plug
• Power output: IP T-Con (W)
• Lamp type: LED lamp
• LED: 16 x high-power 8W 4in1 QCL RGBW (homogeneous colour mixing)
• Flash rate: 0-20Hz
• DMX channels: 3; 4; 5; 6; 9
• DMX input: 3-pin XLR (M) IP
• DMX output: 3-pin XLR (W) built-in version
• Cooling: Passive convection cooling
• Control: DMX; Master/Slave function; Stand-alone; IR remote control (included); Light J software
• Beam angle: 20
• Beam angle (1/2 peak): 20
• Beam angle (1/10 peak): 35

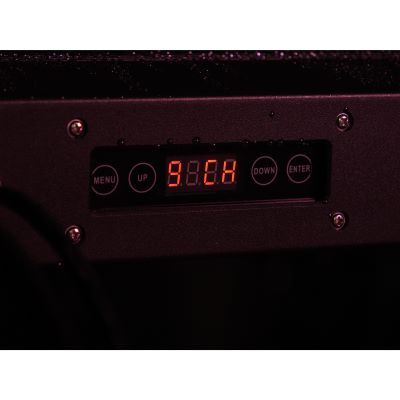

• Display type: 4-digit 7-segment LED display
• Housing color: Black
• Noise classification: Class 0 (no noise)
• Dimensions (LxWxH): 1.065 m x 10 cm x 12.65 cm
• Weight: 5.95 kg
