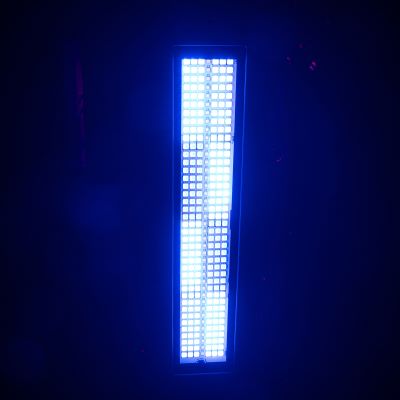

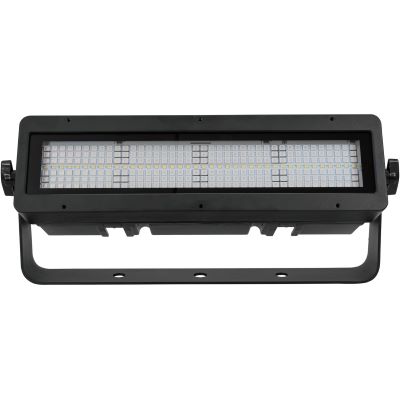

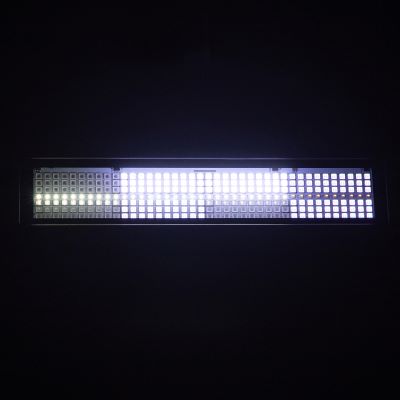

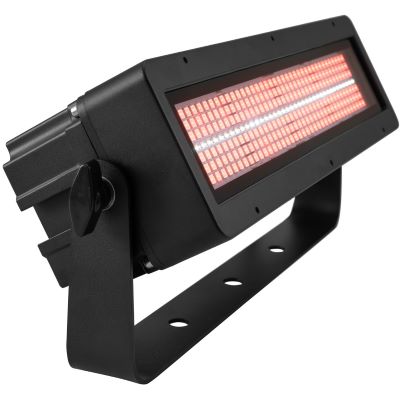

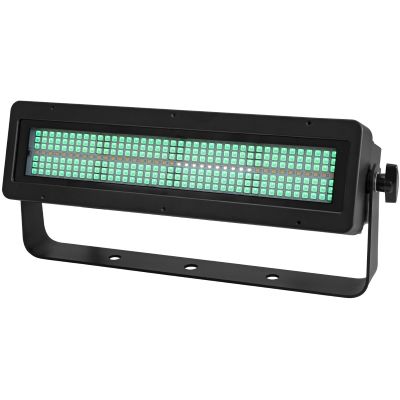

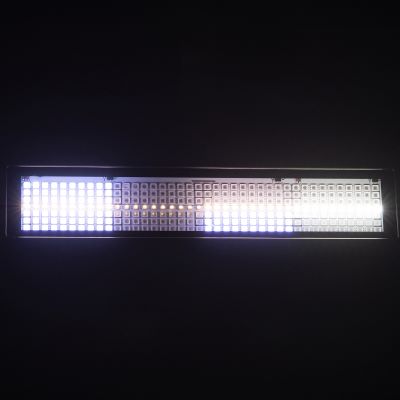

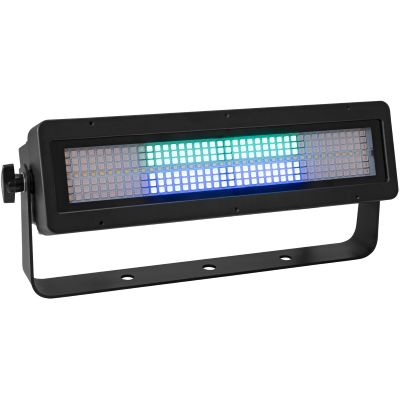

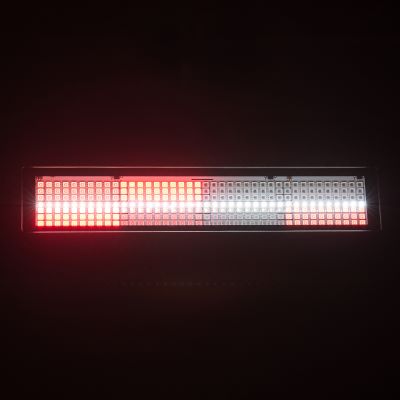

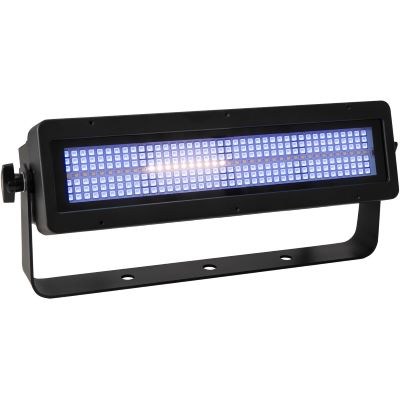

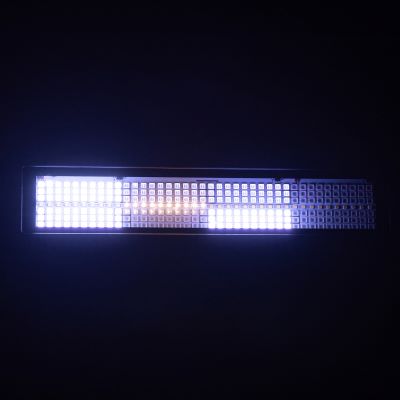

EUROLITE LED IP PIX Strobe RGB CW+WW

The EUROLITE LED IP PIX Strobe RGB CW+WW is compact and powerful, ideal for versatile lighting requirements. With numerous functions such as adjustable background colors, an electronic dimmer, infinitely variable color mixing and adjustable sequence speed, it offers maximum flexibility. It also has 20 integrated show programs and a practical mounting bracket for easy installation.

Features:

• Power supply: 100 - 240 V AC, 50/60 Hz
• Total connected load: 135 W
• Protection class: IP65
• Protection class: SK I
• Power connection: Power supply via IP T-Con (M) built-in version power connection cable with earthing contact plug
• Power output: IP T-Con (W) built-in version
• Fuse: T 5 A fuse fixed in the power supply unit
• Lamp type: LED lamp
• LED: 240 × 0.5 W SMD 5050 3in1 TCL RGB
• 40 × 1 W SMD 3030 2in1 BCL CW/WW
• Color temperature: 3200K - 6600K adjustable
• Flash rate: 0 - 20 Hz
• DMX channels: 6; 10; 18; 24; 25; 32

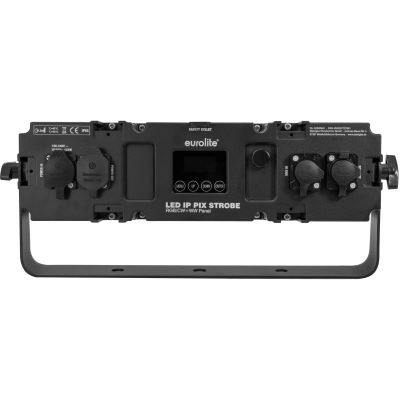

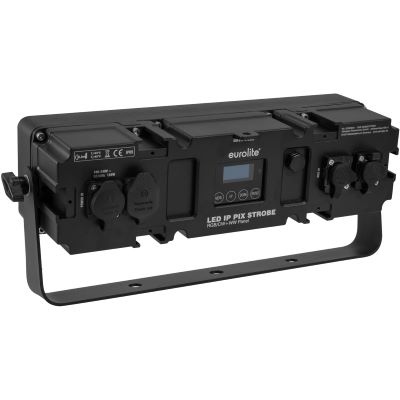

• DMX input: 1 x 3-pin XLR (M) installation version IP
• DMX output: 1 x 3-pin XLR (W) installation version IP
• Cooling: Passive convection cooling
• Control: Stand-alone; music control via microphone; master/slave function; DMX
• Pre-programmed with: Colorchief; Light Captain
• Projection: Flicker-free
• Beam angle: 120°
• Beam angle (1/2 peak): 120°
• Housing color: Black
• Mounting system: Mounting bracket

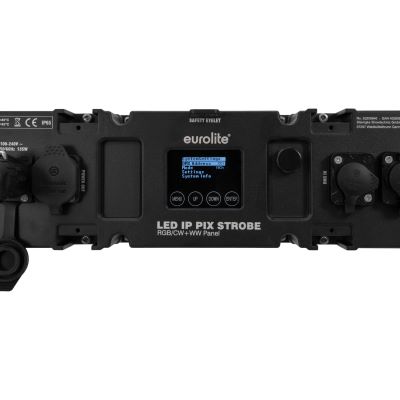

• Display type: OLED display
• Length: 38 cm
• Depth: 11 cm
• Height: 14.5 cm
• Weight: 3.30 kg
• Noise classification: Class 0 (no noise at all)

Scope of delivery:

• 1 x appliance
• 1 x operating instructions
• 1 x mains cable/power cable

Instruction manual / Safety instructions:

• Manual (2.01 MB)
