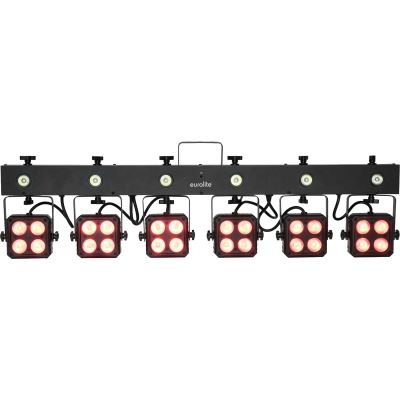

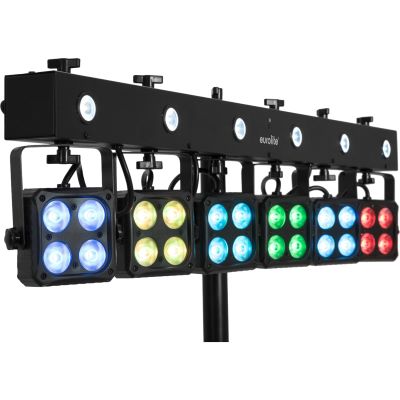

EUROLITE LED KLS-180/6 Kompakt-Lichtset

EUROLITE LED KLS-180/6 compact light set: Flexible lighting system for professional events

The EUROLITE LED KLS-180/6 compact light set is a powerful and versatile lighting solution for mobile DJs, event organizers and professional event technology. With six RGBW spots and integrated strobe LEDs, this set delivers impressive lighting effects that can be individually adjusted and controlled. Thanks to its robust construction, versatile functions and practical transport options, the KLS-180/6 is suitable for both mobile use and fixed installations.

EUROLITE: Leading in event technology

EUROLITE is known for innovative lighting technology and reliable products that have been specially developed to meet the requirements of the entertainment industry. With the LED KLS-180/6 compact light set, EUROLITE offers a sophisticated solution that combines maximum flexibility with impressive lighting performance.

Technical highlights of the KLS-180/6

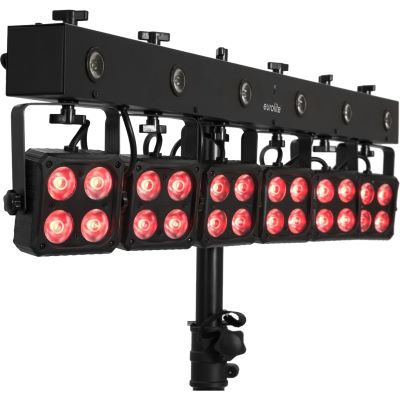

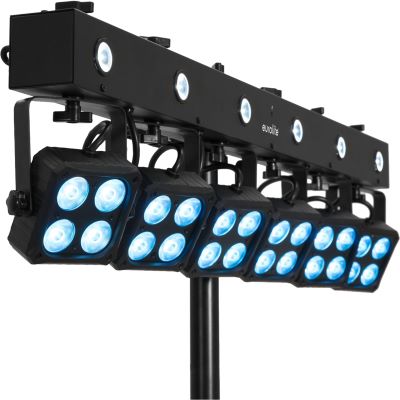

The LED KLS-180/6 combines six RGBW LED spots with powerful strobe LEDs. The spots are each equipped with 8-watt 4-in-1 LEDs that enable homogeneous color mixing. In addition, the six 1-watt strobe LEDs produce powerful lightning effects that can be varied in speed and intensity. With a beam angle of 9° (spots) and flicker-free projection, the set ensures precise and professional lighting.

Control options and flexibility

The light set offers a wide range of control options: It can be operated via IR remote control, via DMX, in standalone mode or via music control. The built-in DMX control unit supports up to 29 DMX channels, allowing individual light shows to be created. Thanks to compatibility with QuickDMX (USB module optional), the effects can also be controlled wirelessly.

The KLS-180/6 is designed for both mobile use and fixed installations. It can be easily mounted on a speaker stand or attached to trusses with swivel mounting brackets. The passive convection cooling ensures silent operation, ideal for sensitive environments such as stage productions or conferences.

Why the EUROLITE LED KLS-180/6 is the ideal choice

The EUROLITE LED KLS-180/6 compact light set offers an impressive combination of user-friendliness, flexibility and professional lighting technology. Whether for mobile DJs, event organizers or event technicians - this set is the perfect solution for impressive lighting effects with little effort. With its robust construction, simple operation and wide range of functions, it meets all the requirements of modern event technology.

Features:

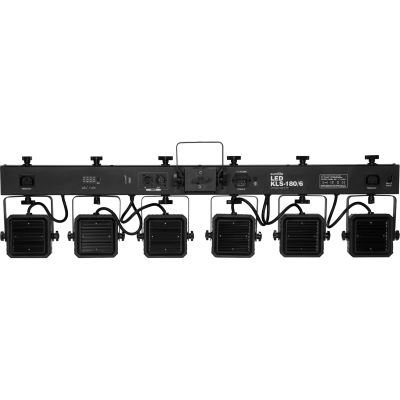

• Crossbar with integrated DMX control unit and stand sleeve
• Lightweight - ideal for mobile use

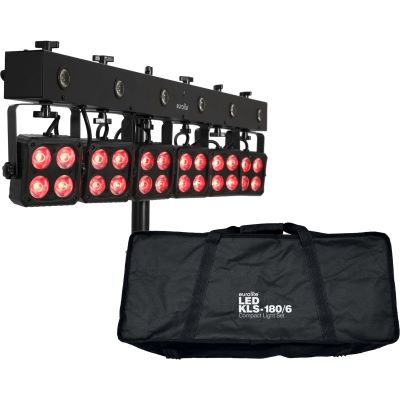

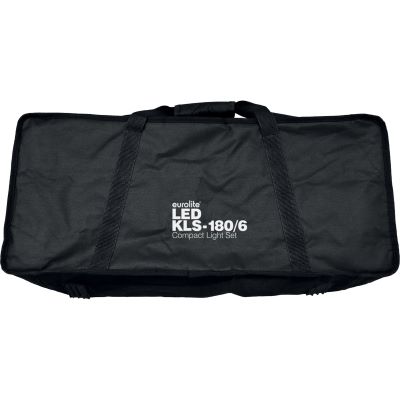

• Supplied pre-assembled in a practical transport bag
• 6 RGBW spots with 8-watt 4-in-1 LEDs each for homogeneous color mixing

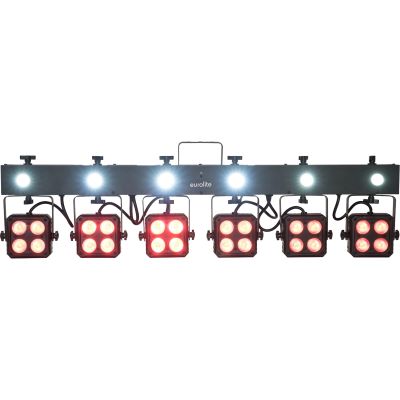

• 6 strobe LEDs with 1 watt for powerful lightning effects
• Pivoting and tilting spotlights
• DMX-controlled operation or standalone mode with master/slave function
• Music control via built-in microphone, adjustable sensitivity
• Compatible with QuickDMX (USB module optional)
• Up to 29 DMX channels selectable

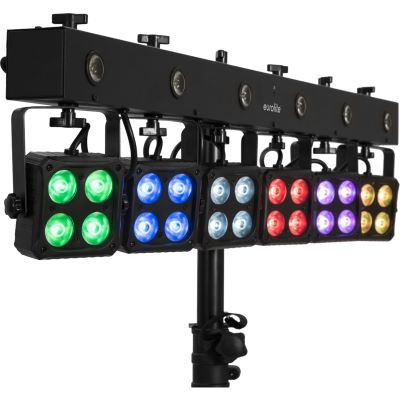

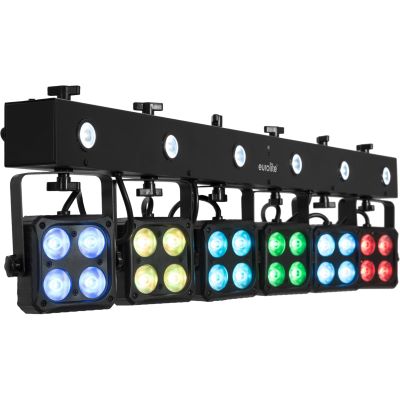

• RGBW color mixing, color presets, internal programs and strobe effects
• Flicker-free projection
• Black painted metal design with mounting brackets
• Passive convection cooling for silent operation
• IR remote control included in the scope of delivery
• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 90 W
• Protection class: IP20
• DMX channels: 3, 4, 6, 8, 9, 11, 21, 24, 29
• Flash rate: 0-20 Hz
• DMX connections: 3-pin XLR (input and output)
• Beam angle: 9° (spots), 18° (strobe, 1/10 peak)
• Housing color: Black
• Dimensions (WxHxD): 92.6 x 14.6 x 26.7 cm
• Weight: 6 kg
