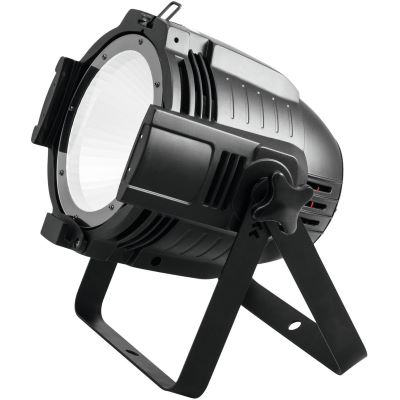

EUROLITE LED ML-56 COB 5600K 100W Floor sw

Equipped with a 100W COB LED, the EUROLITE LED ML-56 COB 5600K 100W Floor sw is ideal for theatres or other large stages.An additional stand bracket also allows it to be used as a floor spot.

Features:

• Equipped with a COB-100-W-LED
• Flicker-free projection
• Fan cooled
• Functions: dimmer, strobe effect, master/slave operation, various dimmer curves/dimmer speed (step response)
• DMX-controlled operation or stand-alone operation with master/slave function possible
• 1 or 3 DMX channels selectable
• Variable speed strobe effect
• Beam angle approx. 35

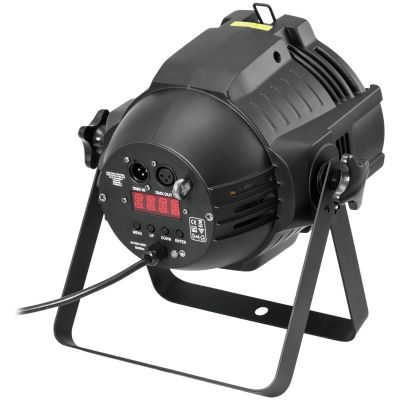

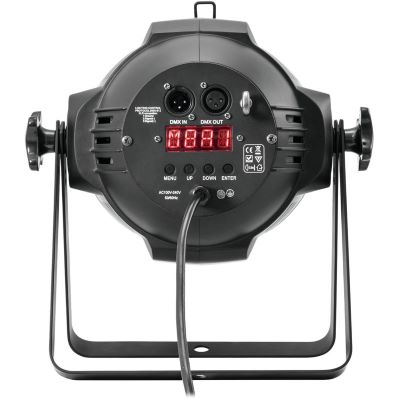

• Convenient addressing and setting via control board with four operating keys and LED display
• Ideal for use as floor spot due to additional stand bracket
• Locking possibility at the hangers
• Ideal for theatres, large stages as front stage spotlights and mobile use
• With colour filter frame, optional sash limiter available
• Ready for connection with mains cable and earthing contact plug
• Switch-mode power supply technology for mains voltage between 100 and 240 volts
• DMX512 control possible via any commercially available DMX controller
• Available in silver or black

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz ~
• Total connected load: 90 W
• DMX control channels: 1/3
• DMX512 connector: 3-pin XLR
• Flash rate: 17 Hz
• Number of LEDs: 1
• LED type: COB-100W
• Colour temperature: 5600 K
• Beam angle: 35°.
• Dimensions (LxWxHx): 250 x 290 x 315 mm
• Weight: 3 kg
• Colour rendering index: 70 Ra
• shipping weight: 4,00 kg
• Subject to ecodesign: Yes
• Special product: Not intended for room lighting in households.
• Intended use: Lighting for show effects

Specs:

• Light source: LED COB
• Steuerung DMX: yes
• Light effect type: Spot
• Montageart: flexible Deployment
• Type: Lighting Effect
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (902.05 KB)
