EUROLITE LED Multi FX Laser Bar

You are perfectly equipped - with the LED Multi FX Laser Bar - for party nights in the club, clubhouse or party cellar. In a compact housing you get a matrix effect with 192 LEDs, two UV LEDs for varied black light effects and a laser effect.

Features:

• Lighting effect with RGBAW LED matrix, UV, RG laser (class 2M) and stroboscope
• Matrix effect with a total of 192 LEDs generates countless moving colourful dots in the room
• 4 laser diodes project thousands of red and green laser beams
• Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
• Matrix, blacklight, laser and strobe can be controlled individually
• Mains input and output for power linking up to 8 units
• 36 powerful LEDs 0,5 W SMD cold white (CW)
• 2 powerful LEDs 3 W high-power ultra violet (UV)
• 192 powerful LEDs 5 mm R/G/B/W/A
• 14 integrated Showprograms
• Can be operated in 2; 5; 10 CH mode
• The device is cooled by cooling fan
• Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; IR remote control
• Preprogrammed in LED PC-Control 512; Light Captain
• Effect: Multi beam effect; flower effect; Strobe effect; UV effect; laser
• With Mounting bracket
• Monochrome 4 digits 7-segment LED display
• For application areas such as: Wedding/gala/events

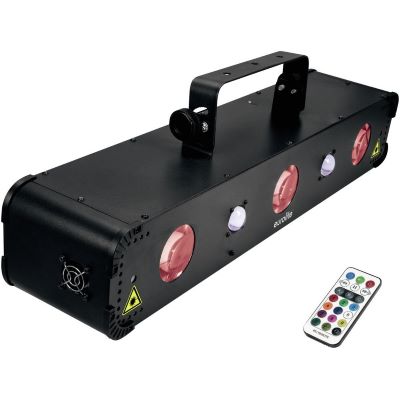

• Package Contents: 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

Technical Specifications:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 35 W
• Protection class: IP20
• Protection class: SK I
• Power connection: Power supply via power supply units (M) Built-in version Power connection cable with safety plug (included)
• Power output: 1 x power supply (W) built-in version
• Fuse: 5 x 20 mm, T 1 A fuse replaceable
• Lamp type: LED lamp
• LED: strobe effect 36 x 0.5 W SMD cool white (CW), UV effect 2 x 3 W, high-power ultraviolet (UV)
• Matrix effect 192 x 5 mm R/G/B/W/A
• Laser class: Class 2M
• Laser color: R/G
• Laser module: Green (G) 30 mW 532nm
• Red (R) 100 mW 650nm
• DMX channels: 2; 5; 10
• DMX input: 1 x 3-pin XLR (M) built-in version
• DMX output: 1 x 3-pin XLR (W) built-in version
• Cooling: fan
• Control: stand-alone; DMX; music control via microphone; master/slave function; LED PC-Control 512; Light Captain; IR remote control; music control
• Housing color: Black
• Mounting system: Mounting bracket
• Display type: Single color 4-digit 7-segment LED display
• Length: 76 cm
• Depth: 18 cm
• Height: 24.5 cm
• Weight: 5.25 kg
• Noise classification: Class 3 (clearly perceptible noise)

Specs:

• Power: 35 W
• Type: Laser
• Theme: Light and Show
