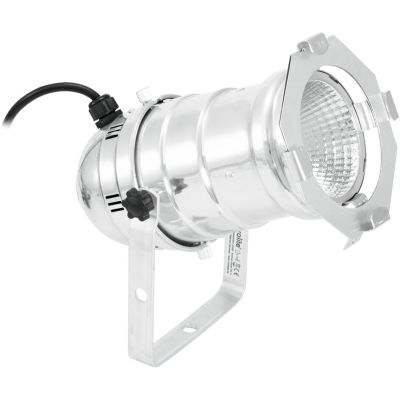

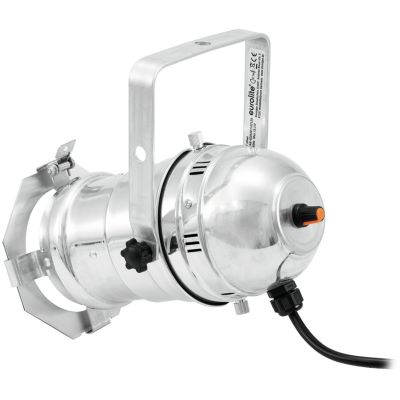

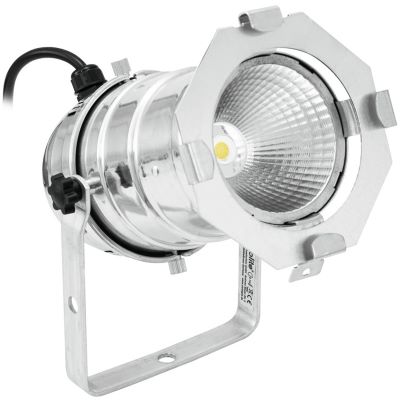

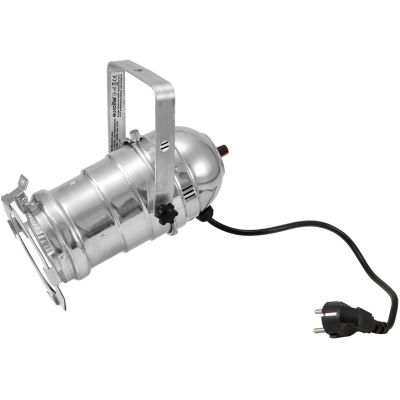

EUROLITE LED PAR-30 3CT silber

EUROLITE LED PAR-30 3CT is a LED spotlight with high color rendering index and three adjustable color temperatures. It is ideal for lighting stores, trade shows or even exhibitions and can be easily mounted using the included swivel bracket.

Features:

• Perfect white light for trade shows, exhibitions and store lighting
• Three color temperatures selectable (3000K, 4000K, 5000K)
• Brightness adjustable via rotary control
• Very high color rendering index (CRI >90)
• Swiveling mounting bracket
• Color filter frame included
• LED: 1 x COB (chip-on-board) 16 W 2in1 BCL CW/WW
• Device is cooled by passive convection cooling
• Controllable via quick selection potentiometer for brightness and color temperature
• Flicker-free projection

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: Max. 18.5 W
• Protection class: IP20
• Protection class: SK I
• Power connection: Fixed power connection cable with safety plug
• Cable length: Approx. 0.4 m
• Lamp type: LED lamp
• Lamp specification: Dimmable
• LED: 1 x COB (chip-on-board) 16W 2in1 BCL CW/WW
• Color temperature: 3000K; 4000K; 5000K
• Cooling: Passive convection cooling
• Control: Quick selection potentiometer for brightness and color temperature
• Beam angle: 20
• beam angle (1/2 peak): 20°
• Radiation angle (1/10 peak): 35
• Illuminance in lux (lx):
• 3000K 1m: 4483 lx, 3m: 582 lx, 6m: 156 lx
• 4000K 1m: 4908 lx, 3m: 634 lx, 6m: 166 lx
• 5000K 1m: 5049 lx, 3m: 646 lx, 6m: 170 lx
• Housing color: silver
• Material: aluminum
• Fixture in the spotlight: 12,8 cm x 12,8 cm
• Dimensions (LxWxH): 24 cm x 14,7 cm x 20 cm
• Weight: 840 g
• Noise classification: Class 0 (no noise at all)
• Filter frame
• Material: aluminum
• Dimensions (WxHxØ): 12.6 cm x 12.6 cm x 9.4 cm

Specs:

• Light source: LED COB
• Steuerung DMX: no
• Light effect type: PAR
• Montageart: has to be hanged / mounted
• Type: PAR Spotlight
• Theme: Light and Show
