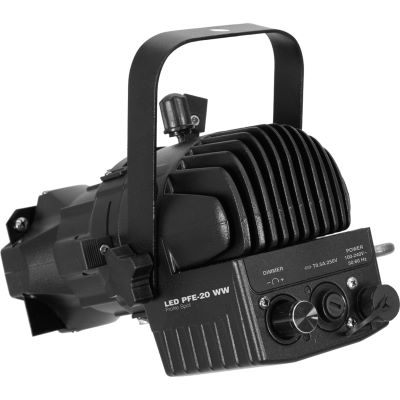

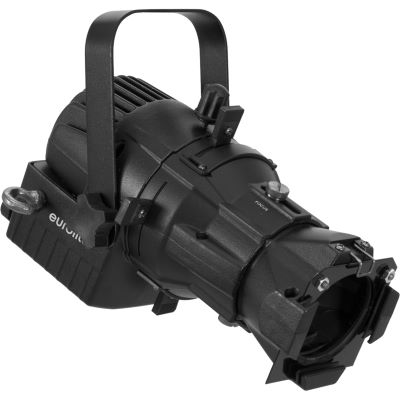

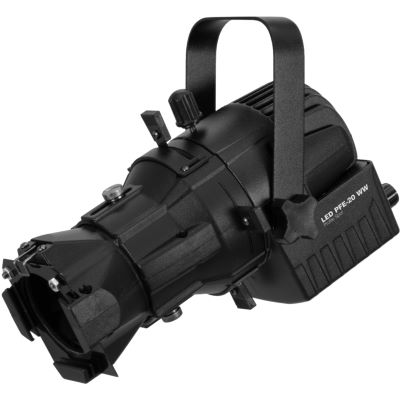

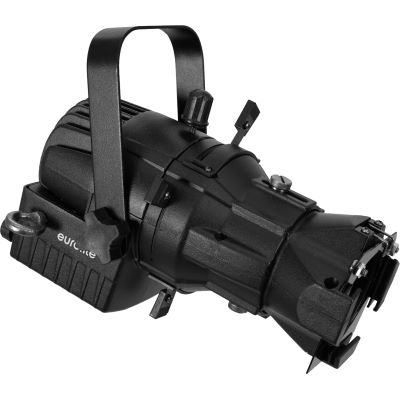

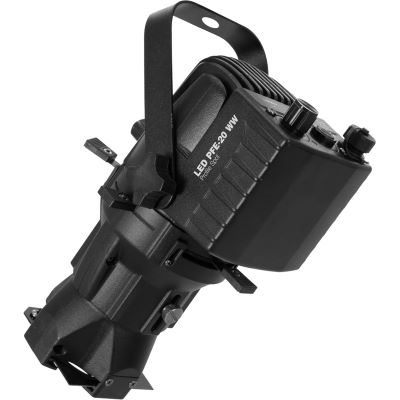

EUROLITE LED PFE-20 WW Profile Spot sw

The quality forge Eurolite offers with the PFE-20 WW a handy stage spotlight with 20 W COB LED. The snow spotlight has a CRI of less than 90, has locking options on the mounting bracket and 4 different profile sliders.

Features:

• CRI of >90
• Locking possibility at the bracket
• 4 profile sliders
• Colour filter frame included
• Gobo holder for own gobos with an outer diameter of 42 mm, image diameter max. 18 mm, not included in delivery
• Dimmer
• Switching power supply technology for mains voltage between 100 and 240 volts
• Ready for connection via connection cable with safety plug
• LED: 1 x COB (chip-on-board) 20 W WW
• Device is cooled via passive convection cooling
• Flicker-free projection

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 20 W
• Protection class: IP20
• Protection class: SK I
• Power connection: Power supply 3-pin screw-type connector (M) Built-in version Power connection cable with earthing contact plug (supplied)
• Fuse: 5 x 20 mm, T 0.5 A fuse replaceable
• Lamp type: LED lamp
• LED: 1 x COB (chip-on-board) 20 W WW
• Color temperature: 3000K
• Gobos: outer diameter 42mm
• Image diameter 18mm
• Cooling: Passive convection cooling
• Color rendering index (CRI) greater than: 95 Ra
• Beam angle: 19
• beam angle (1/2 peak): 19°
• Housing colour: Black
• Dimensions: Length: 22.2 cm
• Width: 15.8 cm
• Height: 20.3 cm
• Weight: 1.2 kg

Instruction manual / Safety instructions:

• Manual (2.77 MB)
