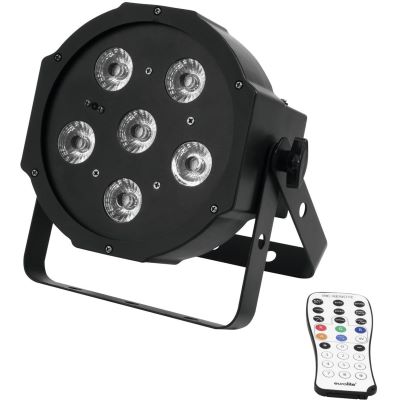

EUROLITE LED SLS-603 TCL + UV Floor

Slimline LED spot with 6 x 3 W LEDs

features

• Operable in stand-alone mode or via DMX interface
• DMX512 control possible via any commercially available DMX controller (occupies max. 8 channels)
• 4 or 8 DMX channels selectable for different applications
• Master/slave operation for synchronous sequences with several devices
• Music control via built-in microphone
• Microphone sensitivity adjustable

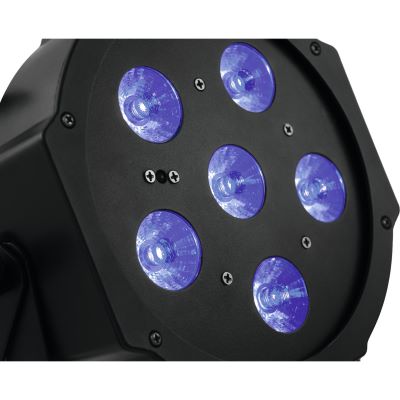

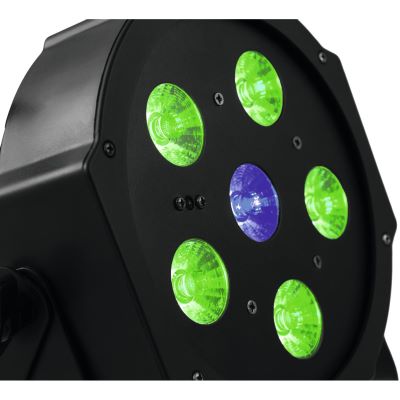

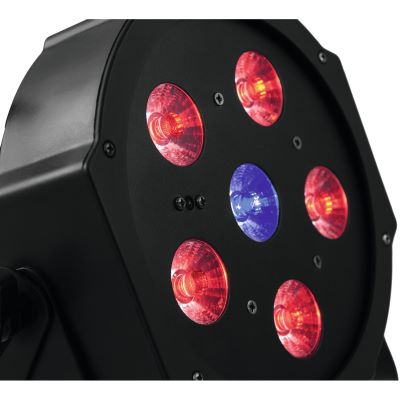

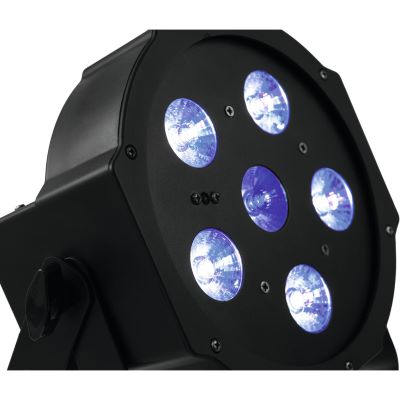

• Equipped with 5 x 3 W TCL LEDs in red, green and blue and a 3 W UV LED
• Flat housing shape for minimum space requirement during assembly
• Suitable for hanging as well as standing installation
• Second mounting bracket for secure hold during installation
• Additional rubber feet if the spot is to be placed on the floor without a bracket
• Power supply input and output or DMX input and output mounted opposite each other on the device - for easier cabling
• Convenient addressing and setting via control unit with LED display and 4 operating keys
• Additional control option via EUROLITE IR-7 remote control, included in scope of delivery

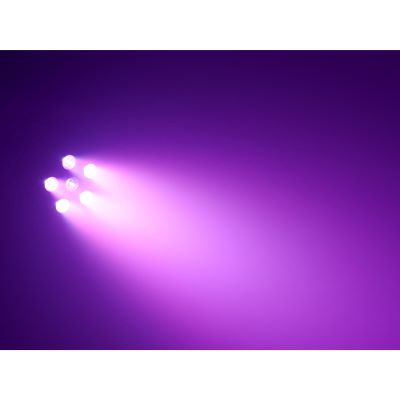

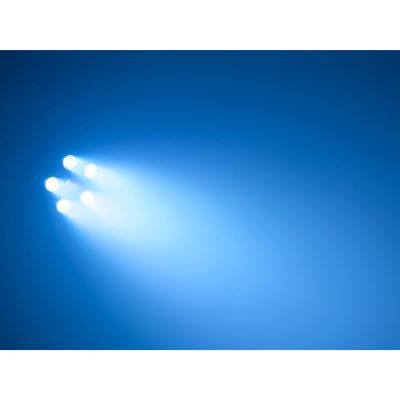

• Functions: static colors, RGBUV color mixing, internal programs, dimmer, strobe, music control
• Speed of internal programs and strobe effect adjustable
• Ready for connection via supplied cold appliance power cable with earthing contact plug
• Loop-through output for power supply of up to 8 devices
• Switch-mode power supply technology for mains voltage between 100 and 240 volts

Technical data

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 20 W
• DMX channels: 4/8
• DMX connector: 3-pin XLR
• Music control: via built-in microphone
• LED type: 3-W
• Number of LEDs:5 TCL, 1 UV
• Beam angle: 11°.
• Dimensions (LxWxHx): 230 x 110 x 230 mm
• Weight: 1 kg
• Shipping weight:1,67 kg
• Special product:Not intended for household room lighting.
• Intended use: Lighting for show effects

Specs:

• Light source: LED RGB + UV
• Steuerung DMX: yes
• Light effect type: PAR
• Montageart: flexible Deployment
• Type: PAR Spotlight
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (873.57 KB)
