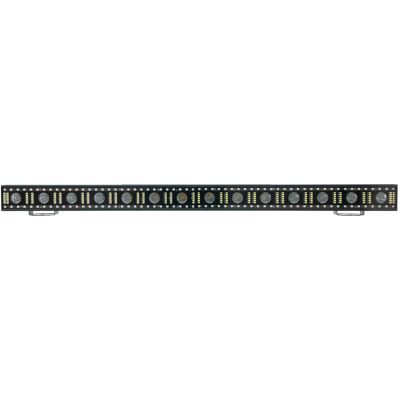

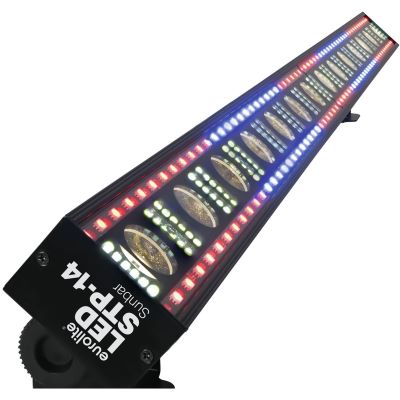

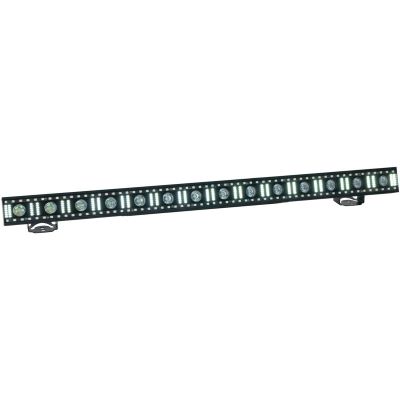

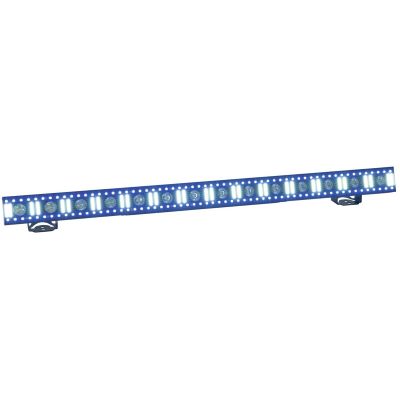

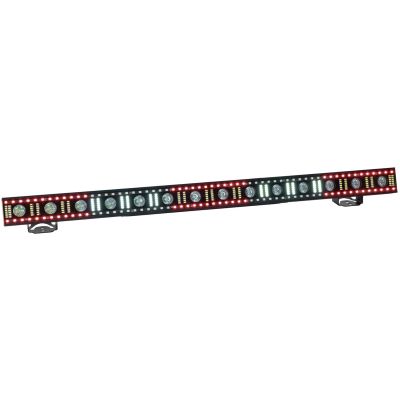

EUROLITE LED STP-14 Sunbar

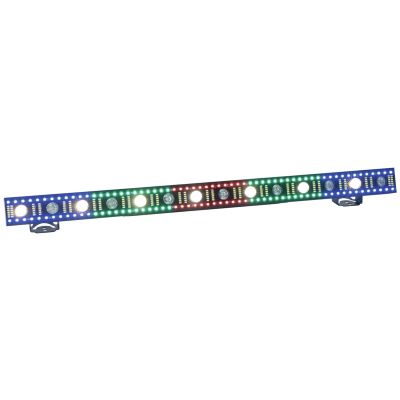

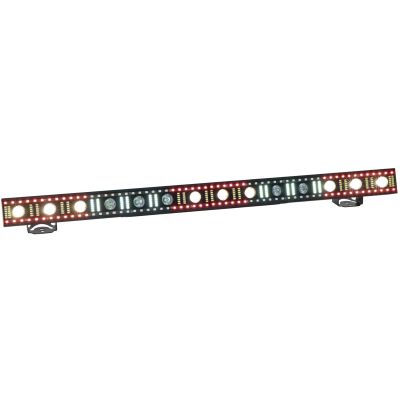

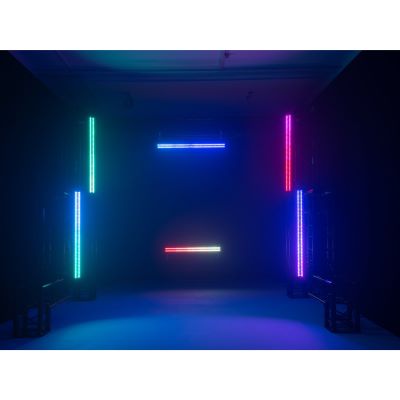

This 3in1 LED bar has 180 cold white and 120 bright RGB LEDs for many different color animations. The effects produced are particularly effective in fog in space. The device has an integrated microphone which allows control via music.

Features:

• 3 impressive effects in one device: beam effect, stroboscope and ambient light

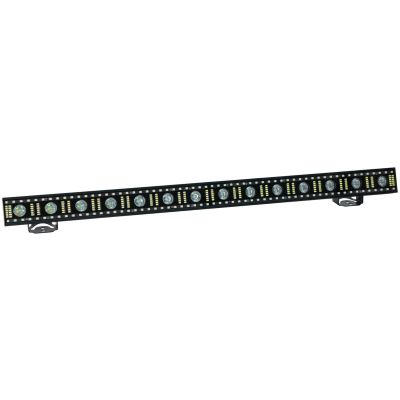

• 14 warm white 3W LEDs with 6.5° beam angle for narrow beams

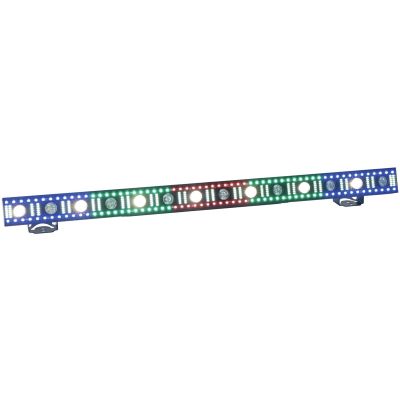

• 120 bright RGB LEDs for mood lighting and colour animations

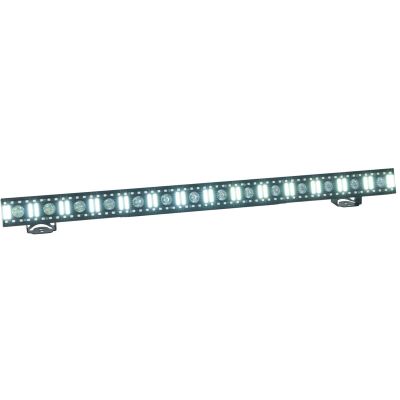

• 180 cold white LEDs for fast, dynamic strobe effects

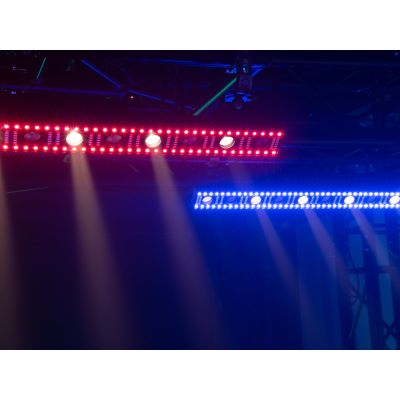

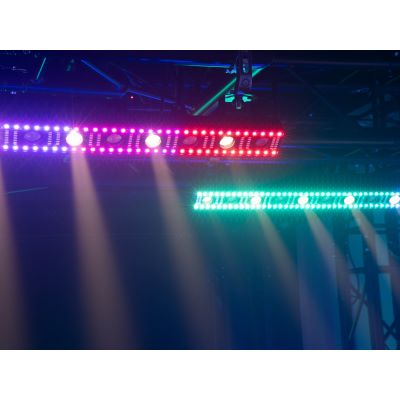

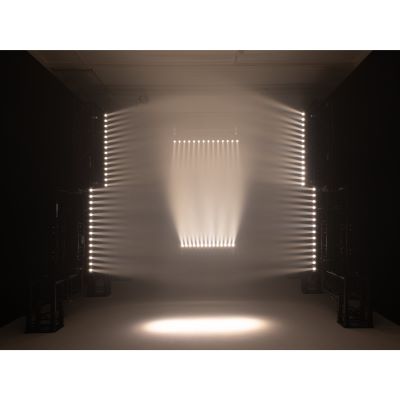

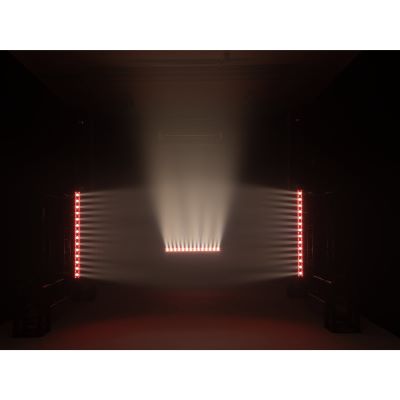

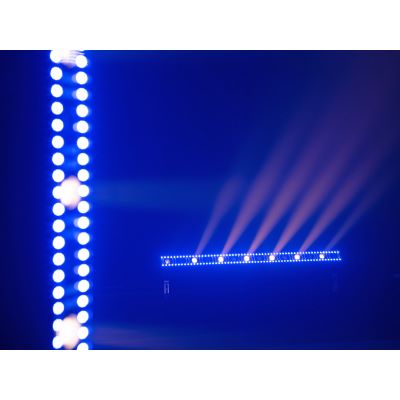

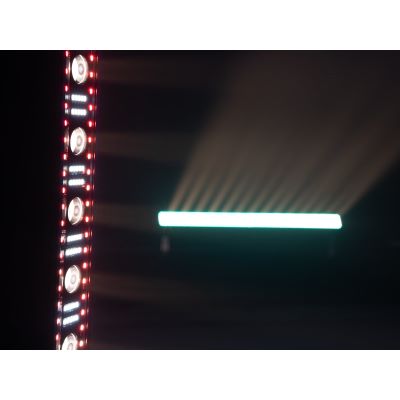

• When fog is used, the effects are particularly effective
• All 3 LED types are divided into different segments, which can be controlled individually via DMX.
• Auto, Music, Master/Slave and DMX mode
• Integrated show programs in auto and music mode
• Direct color selection for 10 colors
• Continuous RGB colour mixing, running light, dimmer and strobe effect with variable speed and via random generator

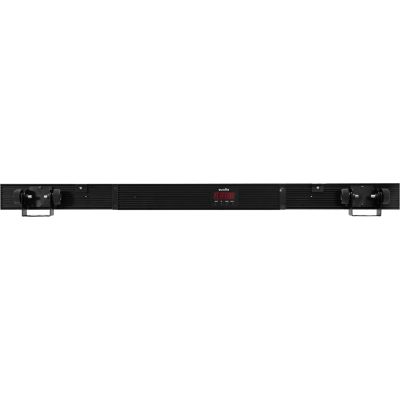

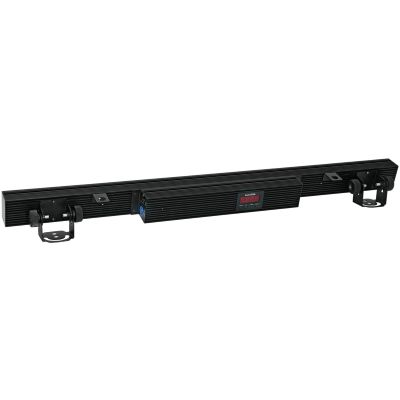

• Addressing and settings via control unit with 4-digit LED display
• Music control via built-in microphone with adjustable microphone sensitivity
• 2, 6, 34 or 37 DMX channels selectable

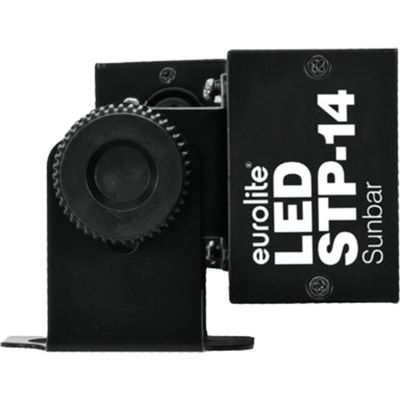

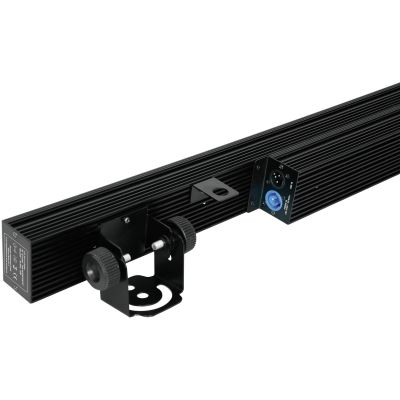

• 2 swivelling mounting brackets
• P-Con mains connection with loop-through output for power supply of up to 8 devices
• Pure convection cooling via cooling fins, no fans, particularly quiet operation
• LED: 180 x SMD CW (homogeneous color mixing)
• LED: 120 x SMD 5050 3in1 TCL RGB (homogeneous color mixing)
• LED: 14 x high-power 3 W WW (homogeneous colour mixing)
• Control: Music control via microphone; DMX
• Projection: flicker-free

Technical data:

• Power supply:110-240 V AC, 50/60 Hz
• Total connected load:95 W
• LED:180 x SMD CW (homogeneous color mixing)
• 120 x SMD 5050 3in1 TCL RGB (homogeneous colour mixing)
• 14 x high-power 3 W WW (homogeneous colour mixing)
• DMX channels: 2; 6; 34; 37
• Protection class:IP20
• Power connection: Power supply P-Con (blue), built-in version Power connection cable with earth contact (M)
• Fan:Without, because convection cooled
• Control:Music control via microphone
• DMX
• Beam angle: 6.5° Spot
• Housing colour:Black
• Length:100 cm
• Height:8,5 cm
• Depth:9 cm
• Weight:3,92 kg
• DMX512 connector:3-pin XLR
• Not intended for room lighting in households
