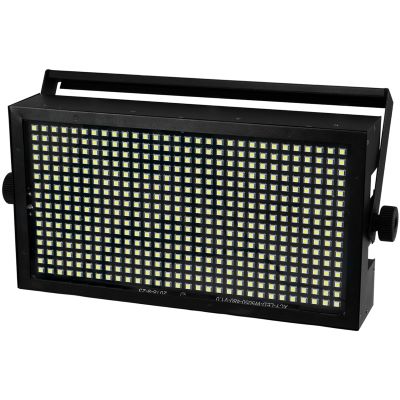

EUROLITE LED Super Strobe

The EUROLITE LED Super Strobe with its 480 cold white SMD LEDs and adjustable flash frequency between 1 and 20 Hz combines stroboscope, blinder and wash effects. This means that both energy-charged stage shows and the quieter lighting in between can be created with one and the same device. In addition, the device has a very wide 120° beam angle, so that the effects are effective from any angle.Control is in master-slave or stand-alone mode or in one of three DMX modes (1, 2 or 3 channels). The metal housing provides stability and is equipped with a mounting bracket, three-pole DMX connectors and a P-Con input and output for connection to the mains.

Features:

• 480 cold white LEDs (SMD 5050) for fast, dynamic strobe and blinder effects
• Master/Slave and DMX mode
• Flash frequency infinitely variable (1-20 Hz)
• Brightness infinitely variable (0-100 %)
• Addressing and settings via control unit with 4-digit LED display
• DMX512 control possible via any commercially available DMX controller
• 1, 2, or 3 DMX channels selectable
• Pivoting mounting bracket
• Mains connection via P-Con socket and enclosed mains cable with earthing contact plug
• Loop-through output for power supply of up to 8 devices
• LED: Stroboscope Effect 480 x SMD 5050 CW
• Projection: flicker-free
• Stroboscope Color: White
• Effect: Stroboscope effect

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 75 W
• LED: Stroboscope Effect 480 x SMD 5050 CW
• Colour temperature: 6500K
• Flash rate: 1 - 20 Hz
• DMX channels: 1; 2; 3
• DMX input: 1 x 3-pin XLR (M)
• DMX output: 1 x 3-pin XLR (W)
• Beam angle: 120°.
• width: 46 cm
• height: 25,5 cm
• Depth: 8 cm
• weight: 3,75 kg

Instruction manual / Safety instructions:

• Manual (1.59 MB)
