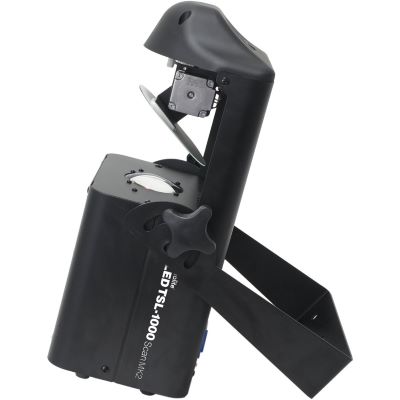

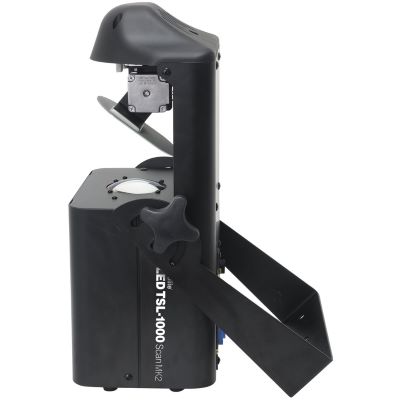

EUROLITE LED TSL-1000 Scan MK2

EUROLITE LED TSL-1000 Scan MK2 - Powerful scanner with 100 W LED and impressive effects

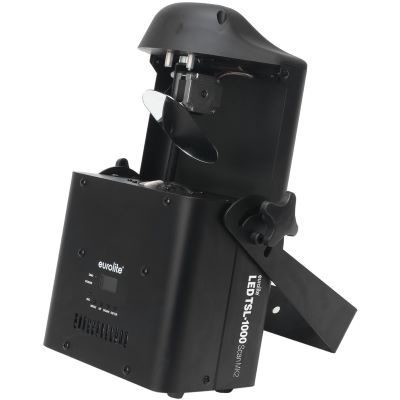

The EUROLITE LED TSL-1000 Scan MK2 is a modern scanner with a powerful 100 W COB LED in cold white. Thanks to its extensive features, including rotating gobos, a 3-facet prism, a motorized focus and a precise PAN and TILT system, this device is ideal for professional light shows in clubs, at events or for mobile DJs. The versatile control options and high light output make the TSL-1000 Scan MK2 an excellent choice for demanding users.

EUROLITE - Quality and innovation for impressive light shows

The EUROLITE brand is known for its high-quality lighting effects and lighting systems, which have been specially developed for use in clubs, theaters, mobile DJ setups and event locations. With innovative technologies, reliable workmanship and user-friendly features, EUROLITE offers products that impress both professionals and beginners. The TSL-1000 Scan MK2 continues this tradition and offers a wide range of functions for impressive lighting scenarios.

Technical details of the EUROLITE LED TSL-1000 Scan MK2

The scanner is equipped with a 100 W COB LED, which ensures a high light output and uniform projection. Thanks to the exact 16-bit resolution in the positioning of PAN (160°) and TILT (50°), precise light movements can be realized. The device has a color wheel with 8 dichroic colors and open positions, allowing dynamic color changes. In addition, the gobo wheel with 7 rotating gobos and an open position offers numerous creative design options.

A special highlight is the 3-facet prism, which creates impressive lighting effects by splitting and multiplying the light. The motorized focus allows flexible adjustment of the projection, while effects such as strobe and shake effects add further visual accents.

Cooling is provided by an integrated fan, which ensures reliable temperature regulation. Thanks to the flicker-free projection, the scanner is also suitable for use with camera recordings. It is operated via an OLED display, which enables intuitive control.

Why buy the EUROLITE LED TSL-1000 Scan MK2?

The EUROLITE LED TSL-1000 Scan MK2 is the ideal choice for anyone looking for a powerful, flexible and easy-to-control scanner. Thanks to the numerous functions and effects, impressive light shows can be realized. Particularly noteworthy are the precise PAN and TILT control, the high light output and the extensive control options via DMX, stand-alone or music control.

With the option of easily connecting up to 8 devices, this scanner is suitable for both small and large events. The robust design and versatile mounting options also make it very flexible to use. Whether for clubs, weddings, galas or mobile DJs - the TSL-1000 Scan MK2 impresses with its versatility and professional performance.

With the EUROLITE LED TSL-1000 Scan MK2, you get a professional light effect scanner that impresses with its powerful features and ease of use. Perfect for impressive light shows in any environment!

Features:

• 100 W COB LED (chip-on-board) in cool white (CW)
• PAN movement: 160° with 16-bit resolution
• TILT movement: 50° with 16-bit resolution
• Color wheel with 8 dichroic colors and open position
• Half colors selectable
• Rainbow effect with variable speed in both directions
• Gobo wheel with 7 rotating gobos and open position
• Shake effect
• Interchangeable gobos thanks to slot-in gobo system
• 3-facet prism for fascinating light effects
• Motorized focus
• Integrated show programs
• Stroboscope effect (1-25 Hz)
• Flicker-free projection
• Electronic dimmer
• Controllable via DMX (10 or 15 channels), stand-alone, master/slave or music control
• OLED display for easy operation
• Compatible with Light'J, Light Captain, EASY SHOW 2 and EASY SHOW 3
• Cooling by fan
• Robust metal and plastic housing
• Black housing color
• Beam angle: 20°
• Color temperature: 8000K
• Illuminance: 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
• Noise classification: Class 2 (low noise)
• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 110 W
• Protection class: IP20, protection class SK I

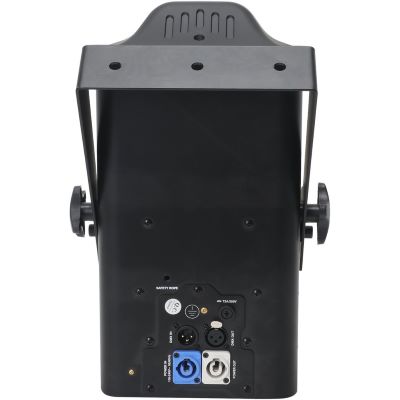

• Power connection via P-Con (blue) with built-in version
• Power output via P-Con (gray)
• DMX input and output via 3-pin XLR
• Mains cable with 1.5 m length (3 x 1.0 mm² H05VV-F)
• Mounting bracket with 3 x Ø10mm mounting holes
• Safety cable eye with M6 thread
• Rubber feet for stability
• Mounting options: Standing, flying, on tripod
• Dimensions: 25.1 cm (width) x 14.1 cm (depth) x 37.7 cm (height)
• Weight: 5.75 kg

Specs:

• Beam: Spot
• Light source: LED COB
• Colour mixing: Up to 9 Color Wheels
• Gobo: up to 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head Spot
• Theme: Light and Show
