EUROLITE NH-50 DMX Dunstnebelmaschine

EUROLITE NH-50 DMX haze machine - Compact fazer for professional lighting production

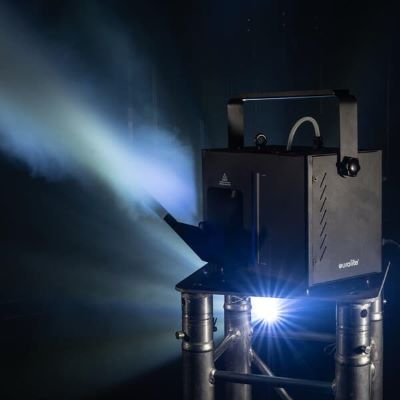

The EUROLITE NH-50 DMX haze machine is the ideal solution for anyone looking for a compact, efficient and modern fazer for stage, events or mobile applications. With its fine, translucent fog distribution, it creates impressive light and laser effects without fogging the entire room - perfect for clubs, galas, dance schools, weddings or DJs.

Thanks to DMX control, optional wireless control (QuickDMX, W-DMX, CRMX) and a vertically adjustable output angle, the NH-50 offers maximum flexibility in use. The short warm-up time, even output and robust housing make this model a reliable companion for any event.

Powerful and well-designed - Fades like the pros

The EUROLITE NH-50 works on the principle of a vaporizing fog machine with compressor and produces fine, even haze that makes light beams and effects perfectly visible. In contrast to classic fog machines, the room remains clear - the audience is not affected by dense smoke.

The output of 170 m³/min at a range of approx. 2 meters makes the NH-50 ideal for small to medium-sized venues. The output angle can be adjusted vertically to adapt the fog distribution to the respective stage situation.

Technical details of the EUROLITE NH-50 DMX fog machine

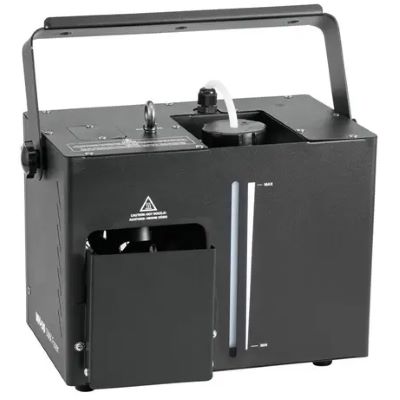

The Fazer is operated via 230 V AC and has a power consumption of around 500 watts. The machine is ready for operation after just 1.5 minutes of warm-up time. The device works with water-based fluid and has a 1.3-liter tank that is illuminated and removable - ideal for quickly changing the fluid and checking the fill level.

The consumption in fazer mode is around 5.7 ml/min, which ensures long operating times without frequent refilling. The built-in fan ensures even distribution of the mist in the room. The automatic temperature control protects the device from overheating.

It is controlled via 1 DMX channel or optionally in stand-alone or master/slave mode. It can also be controlled via QuickDMX, W-DMX or CRMX - provided the appropriate USB dongles are used. All settings can be made intuitively via the monochrome 4-digit LED display.

Installation and ease of use

The NH-50 can be mountedboth upright and suspendedMounting bracketwith 3 mounting holes (Ø10 mm) ensures flexible application options. The housing is made of robust, painted metal and is finished in matt black - discreet, elegant and suitable for any stage look.

The device weighs just 3.53 kg and measures 30 cm x 18.5 cm x 29.5 cm, making it easy to transport and integrate into existing setups. Power is supplied via an IEC power cable with a length of approx. 1.2 m, which is included in the scope of delivery.

Why the EUROLITE NH-50 DMX is the perfect fazer for events

The NH-50 is a powerful, versatile fazer that combines professional fog effects with a compact design. Its versatility with DMX and wireless control options makes it the ideal choice for a wide range of applications - from mobile DJs to clubs and stage shows. The efficient fog distribution ensures impressive lighting effects without disturbing the audience.

Thanks to its low power consumption, maintenance-friendly design and quick set-up, the NH-50 is a worthwhile investment for any professional or semi-professional use. The high-quality workmanship and sophisticated features make it a durable and reliable part of any lighting setup.

Features:

• Compact DMX fazer with adjustable output angle
• Produces fine, translucent haze - ideal for light and laser effects
• Short warm-up time of only approx. 1.5 minutes
• Output volume: approx. 170 m³/min at 2 m output distance
• Continuous output possible
• Tank volume: 1.3 l, illuminated and removable
• Fluid consumption: approx. 5.7 ml/min (water-based fluid)
• Control via DMX (1 channel), stand-alone, master/slave
• Compatible with QuickDMX, W-DMX, CRMX via USB (optional)
• Auto temperature control with overheating protection
• 4-digit LED display for easy menu navigation
• Suitable for standing or hanging operation (with mounting bracket)
• Power connection: IEC (cable included in scope of delivery)
• Power consumption: approx. 500 W at 230 V AC, 50 Hz
• Dimensions: 30 x 18.5 x 29.5 cm
• Weight: 3.53 kg
• Scope of delivery: appliance, mains cable, fluid container, filter, operating instructions, mounting bracket, screws & washers
