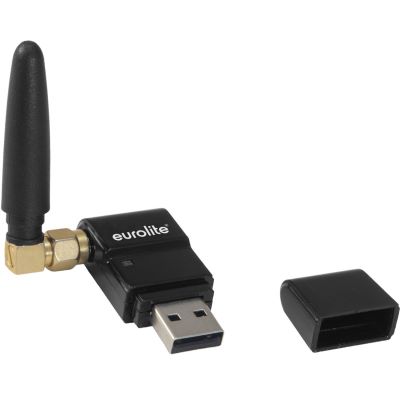

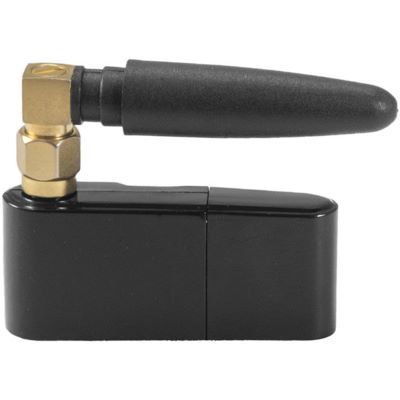

EUROLITE QuickDMX USB Funksender/Empfänger

Wireless mini DMX transceiver 2.4 GHz, phantom-powered

features:

• Compact DMX radio transmitter/receiver in miniature format for wireless transmission of up to 512 DMX channels
• User-friendly USB plug with swivelling antenna
• Wireless DMX eliminates the need for complex cabling between DMX controllers and DMX-controlled devices in lighting systems.
• GFSK modulation with 78 channels ensures interference-free operation even with additional QuickDMX receivers and other wireless devices in the 2.4 GHz band (such as W-LAN and Bluetooth)
• Range up to 400 m (with visual contact)
• Simultaneous operation of up to 6 transmitters, thus control of 6 DMX512 universes (3072 DMX channels) possible
• Plug & Play: Quick and easy commissioning with a button for connecting/disconnecting QuickDMX receivers
• LED function display
• Transceiver usable as transmitter and receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band - free of registration and fees worldwide
• Control: DMX
• Control: Quick-DMX

Technical data:

• Power supply: 5 V DC Phantom powering
• Radio transmission: in the 2.4 GHz band (ISM), 78 channels
• Modulation:GFSK
• Range: 400 m (with visual contact)
• Parallel operation: up to 6 transmitters
• QuickDMX connector: USB, Type A
• DMX channels:1 universe (512 channels)
• Dimensions with antenna (L x W x H): 86 x 40 x 11 mm
• Weight: 15 g
• DMX control channels: 512
• Protection class: IP20
• Color: Black
• weight: 0,0147 kg
• Control: Quick-DMX
