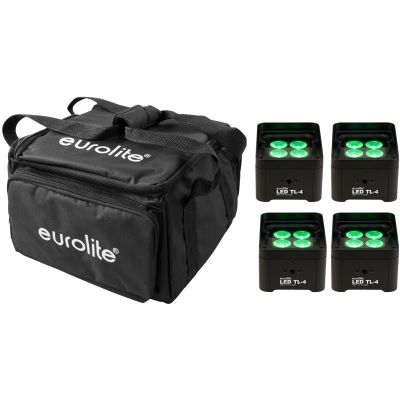

EUROLITE Set 4x LED TL-4 Trusslight + Softbag

The EUROLITE Set 4x LED TL-4 Trusslight + Softbag consists of 4 pieces EUROLITE LED TL-4 QCL RGB+UV Trusslight and a EUROLITE SB-4 Soft-Bag M. It is compact and powerful and can therefore be ideally mounted on trussing.

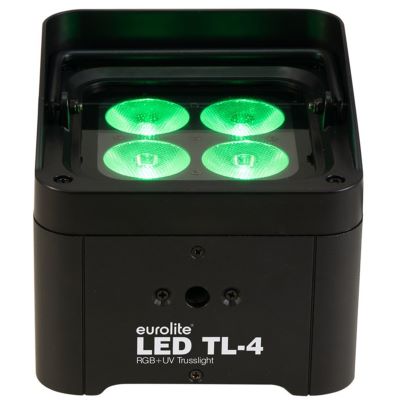

Features EUROLITE LED TL-4 QCL RGB+UV Trusslight:

• Compact and powerful, therefore ideal for mounting in trusses
• Equipped with 4 x 8-W-4in1 LEDs in red, green, blue and UV
• DMX-controlled operation or stand-alone operation with master/slave function possible
• 3, 4-1, 4 or 8 DMX channels selectable
• Integrated show programs in auto and music mode
• Direct color selection for 18 colors
• Functions: static colors, infinitely variable RGB+UV color mixing, internal programs, dimmer, strobe effect with variable speed, music control, master/slave mode
• Music control via built-in microphone with adjustable microphone sensitivity
• Flicker-free projection
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom-powered USB jack for QuickDMX receiver (accessory)
• Addressing and setting via control unit with 4-digit LED display
• Convenient remote control via supplied IR remote control EUROLITE IR-7
• DMX512 control possible via any commercially available DMX controller
• Ideal for stand construction, on stages and anywhere trussing is used
• Perfect for ALUTRUSS 4-point SYSTEM QUADLOCK
• Hanging as well as standing mounting possible
• M10 threaded insert for hanging mounting
• Stand extendable in 5 steps for angled installation
• Additional rubber feet if the spot is to be placed on the ground
• Ready for connection via enclosed mains cable with earthing contact plug
• Loop-through output for power supply of up to 8 devices
• LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogeneous colour mixing)
• Control: QuickDMX via USB (optional); IR remote control included; music control via microphone; DMX

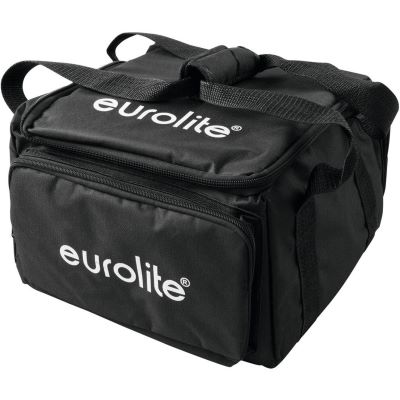

Features EUROLITE SB-4 Soft-Bag M:

• Practical carrying bag offers sufficient space for various lighting effects and accessories
• Large interior, 4 compartments, partition walls and foam upholstery for easy partitioning and adjustment
• Suitable for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540), etc.
• Foam padding to protect the devices
• Two outside pockets for accessories such as cables, hooks, lamps and tape
• Durable and water-repellent nylon surface
• carrying handles

Technical Specificatons:

• Power supply: 110-240 V AC, 50/60 Hz
• Total connected load: 15 W
• LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogeneous colour mixing)
• Flash rate: 0 - 20 Hz
• DMX channels: 3; 4; 4; 8
• Protection class: IP20
• Fan: Without, convection cooled
• Control: QuickDMX via USB (optional); IR remote control included; music control via microphone; DMX
• Beam angle: 13°.
• Housing colour: Black
• weight: 1,30 kg
• DMX512 connector: 3-pin XLR
• QuickDMX connector: USB, Type A
• Dimensions (L x W x H): 155 x 145 x 130 mm
• Subject to ecodesign: Yes
• Special product: Not intended for room lighting in households.
• Intended use: Lighting for show effects

Specs:

• Steuerung DMX: yes
• Light effect type: PAR
• Light source: LED RGB + UV
• Montageart: flexible Deployment
• Type: PAR Spotlight
• Theme: Light and Show
