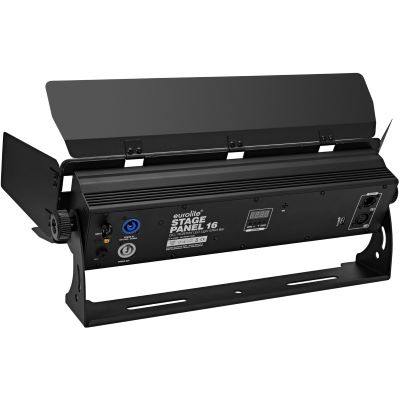

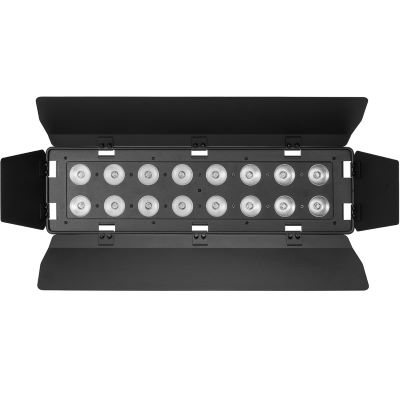

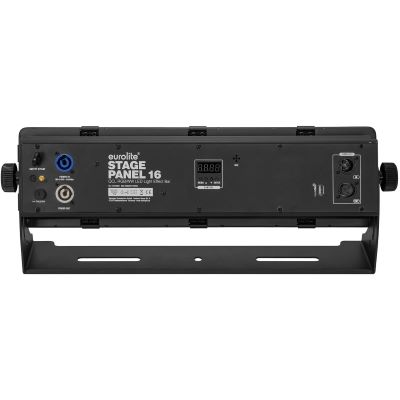

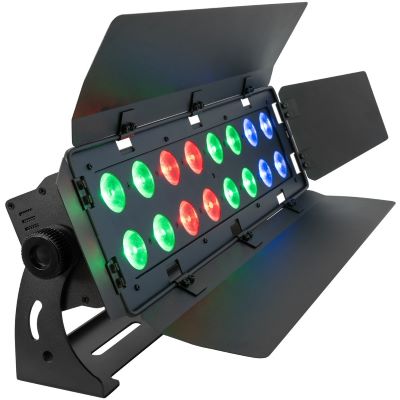

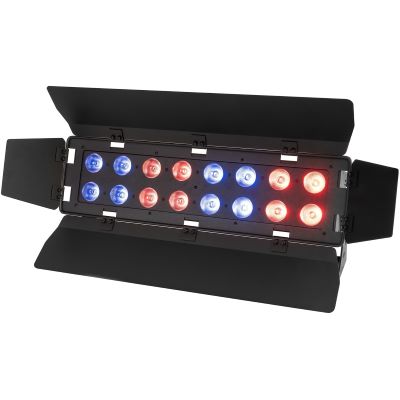

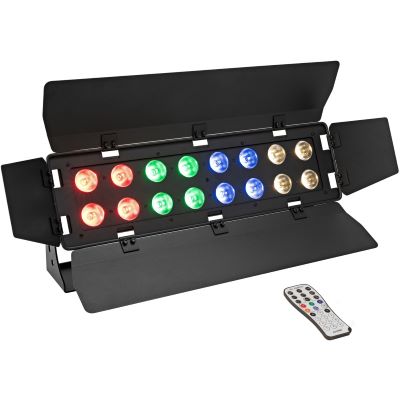

EUROLITE Stage Panel 16 QCL RGB/WW LED

The EUROLITE Stage Panel 16 QCL RGB/WW LED with 16 powerful 7 W SMD 4in1 QCL RGB/WW LEDs offers a homogeneous color mix and impressive lighting effects. Equipped with 9 integrated show programs and direct color selection for 19 colors, it enables versatile application possibilities. The 15° beam angle ensures precise lighting, while the 4-digit 7-segment LED display makes control easy.

Features:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 65 W
• Protection class: IP20
• Protection class: SK I
• Power connection: Power supply via P-Con (blue), built-in version power connection cable with earthing contact plug
• Power output: P-Con (gray), built-in version
• Fuse: T 1 A replaceable fuse
• Lamp type: LED lamp
• LED: 16 x 7 W SMD 4in1 QCL RGB/WW (homogeneous color mixing)
• Flash rate: 0 - 20 Hz
• DMX channels: 3; 4; 5; 6; 8; 9; 16; 24
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (W) built-in version
• Cooling: Passive convection cooling
• Control: Stand-alone; music control via microphone; master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional); IR remote control
• Pre-programmed with: Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light'J
• Projection: Flicker-free
• Beam angle: 15°
• Beam angle (1/2 peak): 15°
• Beam angle (1/10 peak): 32°
• Housing color: Black
• Mounting system: Mounting bracket
• Display type: 4-digit 7-segment LED display
• Width: 52.5 cm
• Depth: 9.9 cm
• Height: 18.1 cm
• Weight: 5.35 kg
• Noise classification: Class 0 (no noise at all)

Scope of delivery:

• 1 x spotlight
• 1 x mains cable/power cable
• 1 x blade limiter
• 1 x remote control
• 1 x operating instructions

Specs:

• Steuerung DMX: yes
• Light effect type: LED Bar
• Light source: LED RGB
• Montageart: flexible Deployment
• Type: Lighting Effect
• Theme: Light and Show
