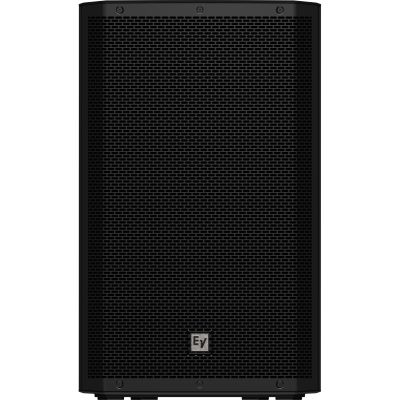

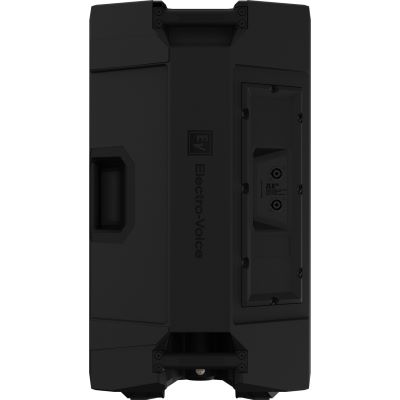

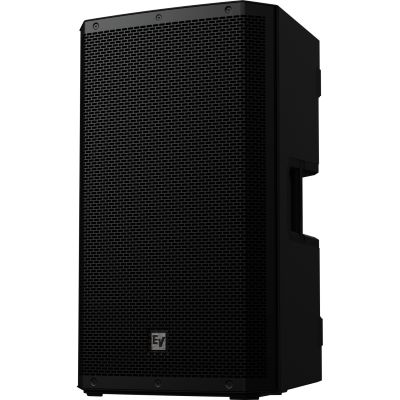

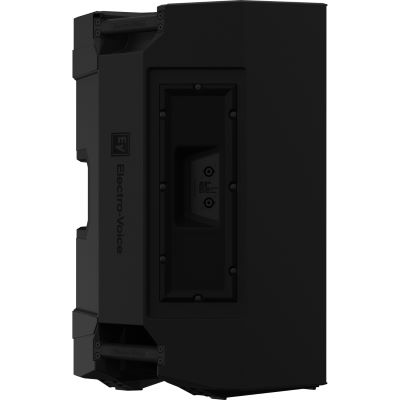

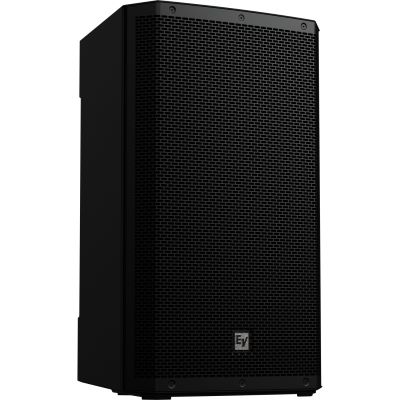

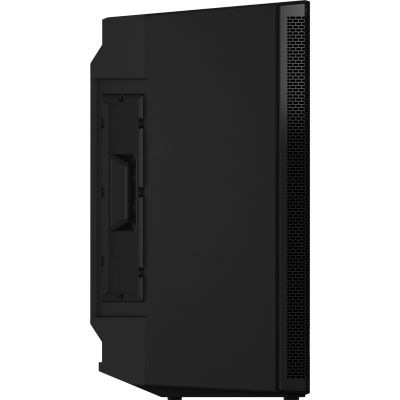

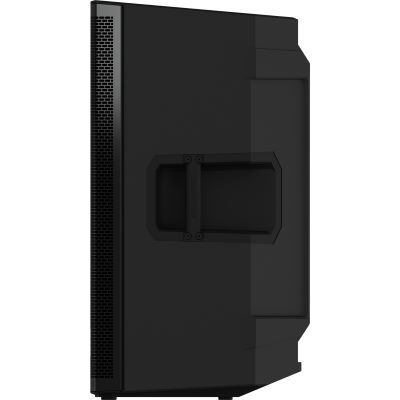

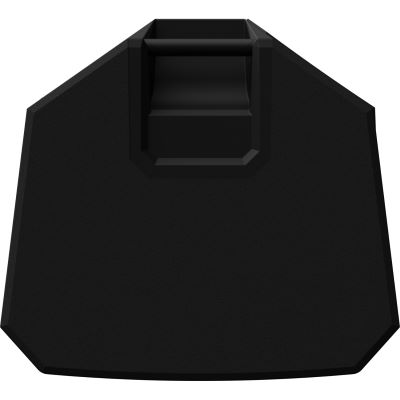

EV Electro Voice ZLX 15 Passiver Lautsprecher

With the ZLX-15, you can count on the most reliable components in the industry, engineered to exacting standards to deliver exceptional EV audio quality for larger applications with or without a subwoofer. The ZLX features a premium 15-inch woofer for extended low-frequency response, a 1.5-inch titanium compression driver for high frequencies, and with a frequency response of 56 Hz - 18 kHz, it's a must-have for any producer.

Features:

• EV Electro Voice - ZLX 15 Passive speaker
• 15-inch woofer for extended low frequency range and 1.5-inch titanium compression driver for high frequencies
• Frequency response: 56 Hz - 18 kHz
• Frequency range: 44 Hz - 20 kHz
• Axial sensitivity: 96 dB
• Maximum sound pressure level: 126 dB
• Recommended HP frequency: 40 Hz
• Dispersion angle (Hort. x Vert.): 90° x 60°
• Power handling: 250 watts continuous power, 1000 watts peak power
• LF transducer: EVS-15L, 380 mm (15 inch) woofer
• HF transducer. DH-1K
• Crossover frequency: 1.7 kHz
• Nominal impedance: 8 Ω
• Minimum impedance: 7 Ω
• Connector: Dual NL4
• Housing: Polypropylene
• Grille: 18-gauge steel with black powder coating
• Dimensions (H x W x D): 685 mm x 423 mm x 383 mm (27 inch x 17 inch x 15 inch)
• Weight: 16.6 kg (36.5 lb)

Specs:

• Impedance: 8 Ω
• Power: 250 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 15
• Tweeter: 1 x 1
• Set Offer: no
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (8.09 MB)
