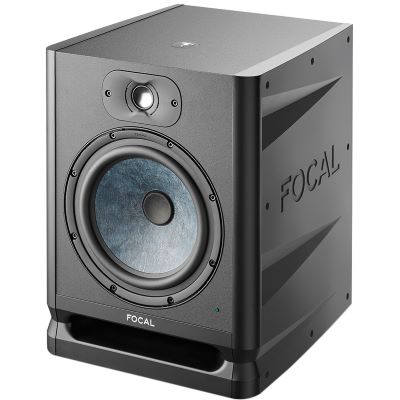

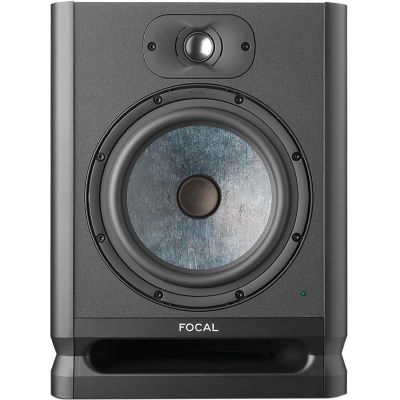

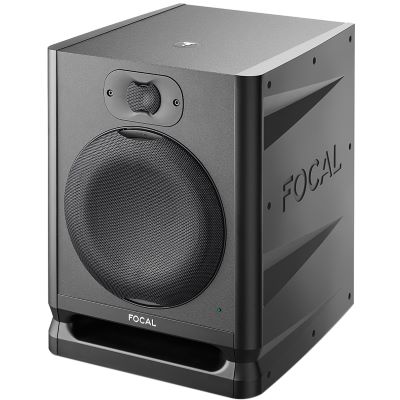

Focal Alpha 80 Evo

The Alpha 80 Evo has a 1" (25mm) aluminum tweeter and an 8" (20cm) slate fiber cone woofer, both designed and manufactured in Focal's workshops in France. This monitor features excellent dynamics and neutral tonal balance. Thanks to new technologies and features, the Alpha 80 Evo is extremely versatile. The Alpha 80 Evo is perfect for producers looking for high sound pressure levels while maintaining accurate low-frequency reproduction

Features:

• Excellent dynamic range
• Wide dispersion, so the same sound is achieved throughout the room
• French-made slate fiber cone ensures sound neutrality and no distortion
• Identical sound balance at low and high volumes
• Connection of up to 3 audio sources
• Inserts for wall mounting

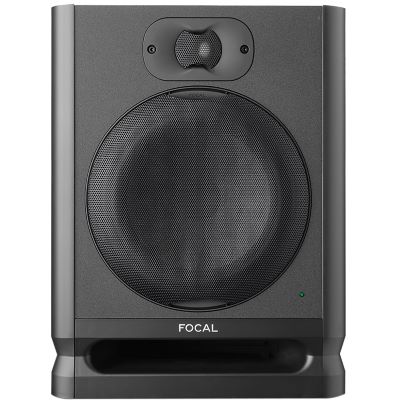

• Protective grille included

Technical data:

• Frequency response: (+/- 3dB) 38Hz - 22kHz
• Maximum sound pressure level: 106dB SPL (peak @ 1m)

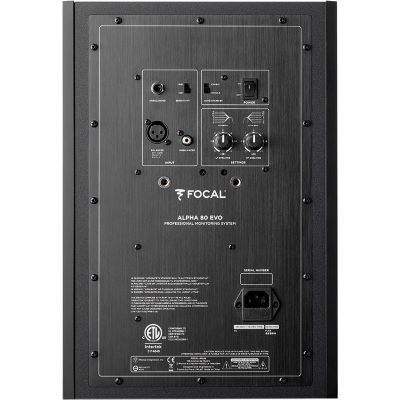

• Inputs: TRS - balanced 10kOhm; XLR - balanced 10kOhm; RCA - unbalanced 10 kOhm
• Amplifier power low-mid: 80W
• Amplifier power tweeter: 35W
• Automatic stand-by mode: After approx. 15 minutes without use by signal detection >6mV
• Power supply: 100 - 240V~ (T2AL fuse/250V)
• Power cord connection: IEC socket and detachable power cord
• Sensitivity: Adjustable, 0 or +6dB
• Level Midrange/Bass (0 - 250Hz): Adjustable, +/-6dB
• Tweeter level (4.5 - 35kHz): Adjustable, +/-3dB

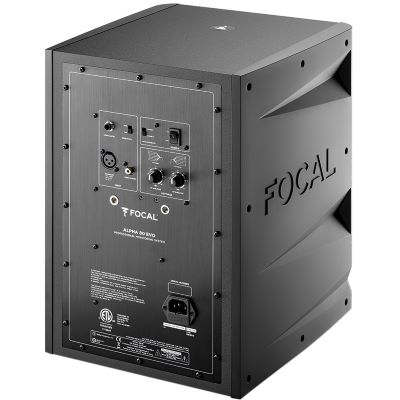

• On/Off switch: On/Off switch on the rear panel
• Stand-by consumption: <0.5W
• Controls: On/off LED - stand-by LED
• Woofer: 8" (20cm) slate fiber cone
• Tweeter: 25mm (1") with inverse aluminum dome tweeter
• Cabinet material: 15mm MDF
• cabinet finish: black vinyl and color paint
• Dimensions with 4 rubber feet (HxWxD): 390x296x330mm
• Weight: 9.8kg

Specs:

• Color: Black
• Woofer: 1 x 8
• Frequency Range from: 38 Hz
• Frequency Range to: 22000 Hz
• Set Offer: no
• Number of paths: 2-way
• Type: Studio Monitor
• Theme: Recording and Studio
