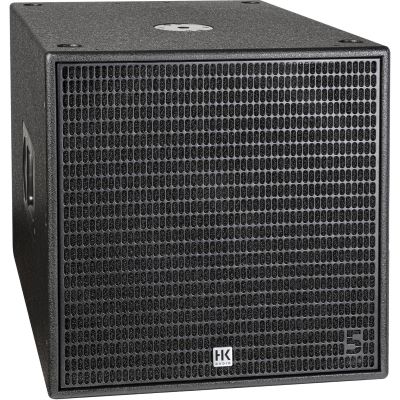

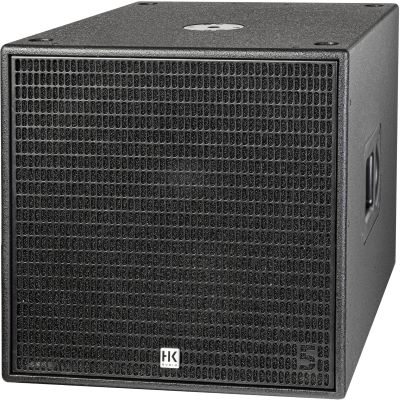

NEW HK Audio Linear 5 MKII 118 Sub A

HK Audio Linear 5 MKII 118 Sub A - Active 18" bass reflex subwoofer with 2000 W peak

Are you looking for a powerful low-end foundation for professional sound reinforcement applications? The HK Audio Linear 5 MKII 118 Sub A is a high sound pressure active bass reflex subwoofer made of robust birch multiplex. With uncompromising performance, dry and defined bass reproduction and integrated DSP technology, it takes your LINEAR 5 MK2 systems into the professional league.

Thanks to easily selectable cardioid presets and modern MILAN network technology, the subwoofer can be flexibly integrated into a wide variety of setups - from classic 2.1 systems to complex touring configurations.

Powerful bass performance with DSP control

The HK Audio Linear 5 MKII 118 Sub A works as an active bass reflex subwoofer with a Class D power amplifier and an RMS output of 1000 W (2000 W peak). The maximum sound pressure reaches up to 131 dB SPL peak and ensures powerful low bass reproduction right into the low-end range.

The transmission range extends from 42 Hz (-6 dB) or 38 Hz (-10 dB) up to the set crossover frequency (X-Over).

Professional DSP equipment

The integrated DSP preamp with 48 kHz sample rate and a latency of less than 2 ms offers extensive control options. A fully parametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter and mute enable precise system adjustments.

Easily selectable filter options such as front, cardioid 1:1 vertical, cardioid 1:1 horizontal or remote make system configuration much easier.

Remote and network capability

The subwoofer supports MILAN for digital audio transmission and can be controlled remotely via the HK Audio DSP CONTROL software (Windows, Mac OS).

Robust enclosure for touring and installation

The cabinet is made of durable birch plywood with an acrylic lacquer finish in deep black (RAL 9005). Two HK Audio MultiGrip handles facilitate transportation, while an M20 high stand flange enables flexible installation options.

The anti-corrosive coated steel grille with acoustic foam backing reliably protects the components.

Features:

• Model: HK Audio Linear 5 MKII 118 Sub A
• Concept: Active bass
• Housing principle: Bass reflex
• Max. SPL peak: 131 dB
• Frequency response -6 dB: 42 Hz - X-Over
• Frequency response -10 dB: 38 Hz - X-Over
• Preamplifier type: DSP preamplifier
• Power amplifier type: Class D
• Power amplifier output RMS: 1000 W
• Power amplifier peak power: 2000 W
• Maximum input level: +20 dBu
• Speaker protection: RMS/peak limiter
• Sample rate: 48 kHz
• Latency: less than 2 ms
• DSP functions: 10-band fully parametric EQ, low-pass filter, polarity, level, delay, limiter, mute
• Filter presets: front, cardioid 1:1 vertical, cardioid 1:1 horizontal, remote
• Digital audio transmission: MILAN
• Remote software: HK Audio DSP CONTROL (Windows, Mac OS)
• Power consumption: 1.9 A / 100-240 V (according to EN 62368-1)

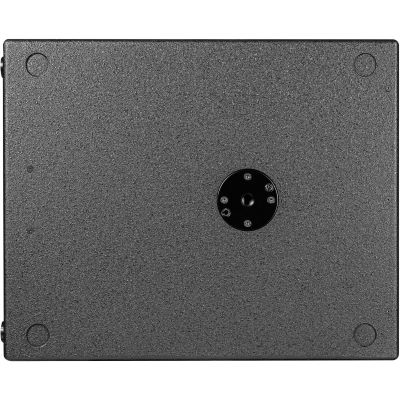

• Rigging: 1 x M20 high stand flange

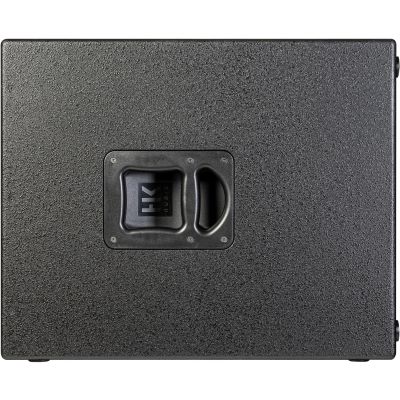

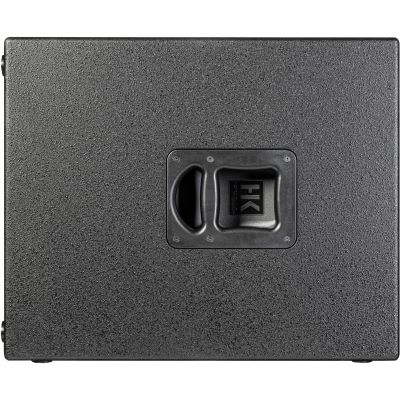

• Handles: 2 x HK Audio MultiGrip
• Housing material: Birch multiplex
• Enclosure surface: Acrylic lacquer
• Color: Deep black (RAL 9005)
• Front grille: Anti-corrosive coated steel grille with acoustic foam
• Weight: 41.6 kg

Specs:

• Theme: PA and Sonication
• Type: Subwoofer
• Power: 1000 W
• Housing Material: Multiplex
• Pole Mount: yes
• Woofer: 1 x 18
• Set Offer: no
