IMG Stage Line DEQ-230

The DEQ-230 is a professional digital parametric/graphic 2 x 30 band stereo equalizer with high-quality DSP processors and digital converters. The variable Q factor of the filters in each equalizer allows for a very fine adjustment and thus a matching to existing acoustic conditions. Additionally, the DEQ-230 also features: delay, RMS compressor and high-pass/low-pass filters. Each feature and adjustment can be edited and stored in individual presets directly at the unit or via the intuitive graphical user interface at the PC or via the USB interface or RS-485 interface.

Features:

Digital parametric/graphic 2 x 30 band stereo equalizer
• 2 inputs and 2 outputs (XLR, balanced)
• S/PDIF digital input stereo
• Dynamic range: > 110 dB
• User-defined routing of the inputs to the outputs

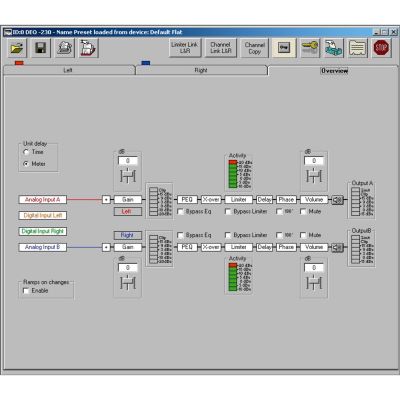

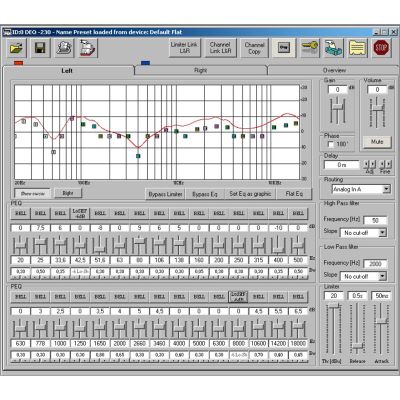

• Graphical user interface, PC editing software
• 24 user presets can be stored
• Remote control via USB, RS-485. With optional USB/RS-485 converter DA-70157, it is possible to connect a PC or laptop with USB interface to the serial RS-485 interface and to address and configure several devices connected to each other
• Dot matrix display with 2 x 20 characters
• VU meter with 7 LEDs for each channel, optionally for level display or limiter
• 482 mm (19") rack installation, 1 RS
Input (data for each channel)
• Gain control
Output (data for each channel)
• 30 equalizers in each output with filters: high-shelf, low-shelf, bell
• 1/24 octave steps
• Gain filter: ± 15 dB each
• Variable Q factor of the filters: 0.05 to 3 in 0.05 steps
• RMS limiter, threshold: 20 dBu to -10 dBu, release time: 0.01-3 s, attack time: 5-200 ms
• Delay to be switched between time (ms) and distance (m): 849 ms max. in steps of 22 µsec or 288 m max in steps of 6.8 mm
• High-pass filter and low-pass filter to 24 dB/oct. according to Butterworth, Linkwitz-Riley or Bessel
• Selectable phase (180°)
• Gain control

Technical Specificatons:

• Type: equalizer
• Frequency range: 20-20,000 Hz
• S/N ratio: > 110 dB
• THD: < 0.005%
• Admiss. ambient temp.: 0-40 °C
• Power supply: ˜ 230V/50Hz/20 VA
• Dimensions: 482 x 44 x 230 mm,1 RS
• Weight: 2.9 kg

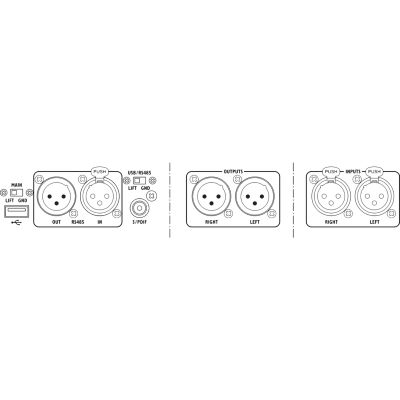

• Inputs: 2 x XLR, bal., 1 x S/PDIF, stereo
• Outputs: 2 x XLR, bal.
• Other features: USB, RS-485

Specs:

• Type: Equalizer
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (5.98 MB)
