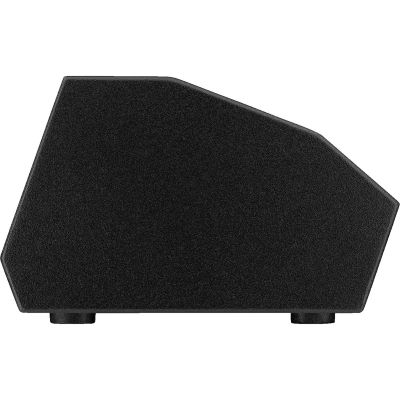

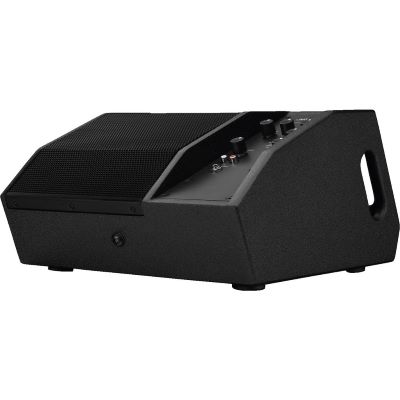

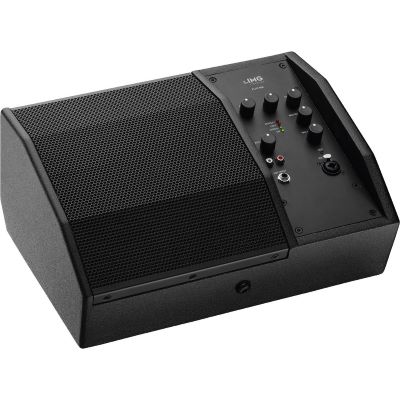

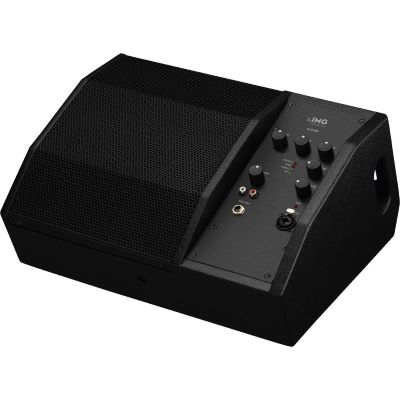

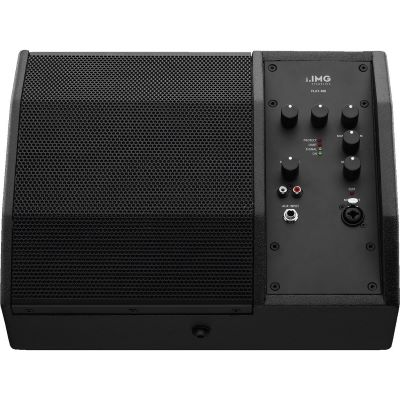

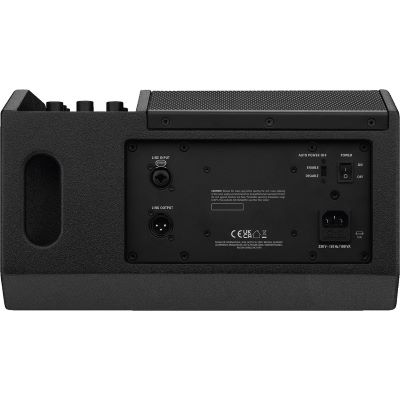

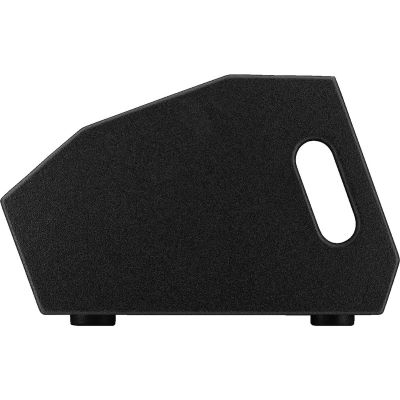

IMG Stage Line FLAT-M8

With the FLAT-M8, IMG Stage Line presents a compact and flat full-range system, which is equipped with a 20 cm (8") coaxial speaker with treble horn Class D amplifier system. The system features a volume and 3-way tone control (bass, midrange and treble), a 121 dB sound pressure level at rated power, and a high-quality multiplex wooden cabinet with metal protection grille.

Features:

• IMG Stage Line - FLAT-M8
• Very compact and flat full-range system
• Equipped with a 20 cm (8") coaxial speaker with high-frequency horn Class D amplifier system
• 121 dB sound pressure at nominal power
• Protect, limiter, signal and power-on display
• Volume and 3-way tone control (bass, midrange and treble)
• Balanced line or mic input and loop-through output
• Asymmetrical line input cinch L/R or 6.3 mm jack
• Switchable auto power-off
• High-quality multiplex wood housing with metal protection grille
• M10 threaded insert for stand adapter or mounting bracket
• Output power, total: 300 W
• Rated power: 100 W
• Frequency range: 70-21000 Hz
• Input signal: 180 mV/5.6 kΩ (line, balanced), 180 mV/5.6 kΩ (aux, RCA), 1.5 mV/1.2 kΩ (mic, balanced), 70 mV/4 kΩ (aux, jack, asym.)
• System: 1 x 2-way coaxial speaker
• woofer: 1 x 20 cm (8")
• Tweeter: 1 x horn tweeter coaxial
• Number of built-in LS drivers: 2
• Speaker size: 20 cm (8")
• Sound pressure level: 99 dB/W/m
• Max. Nominal sound pressure: 121 dB
• Dispersion angle horizontal: 70
• Radiation angle vertical: 50
• Enclosure material: MDF
• Color: Black

Specs:

• Power: 100 W
• Housing Material: Wood
• Woofer: 1 x 8
• Tweeter: 1 x 1
• Set Offer: no
• Type: Full Range Speaker
• Theme: PA and Sonication
