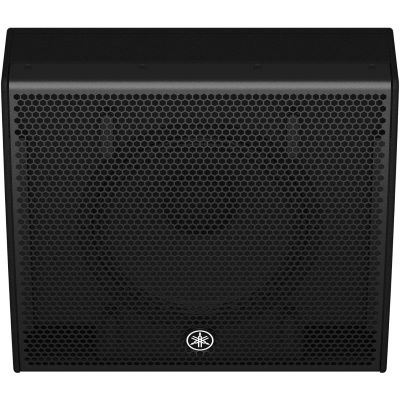

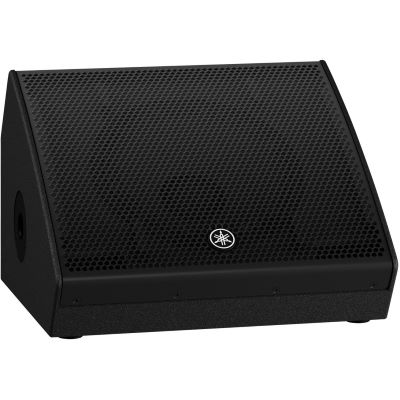

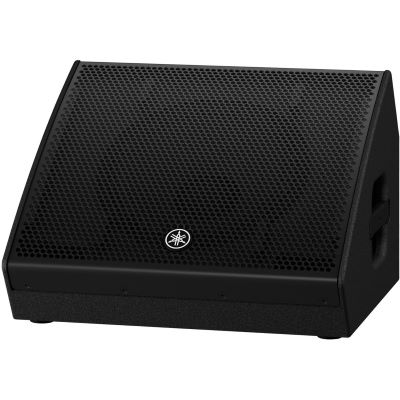

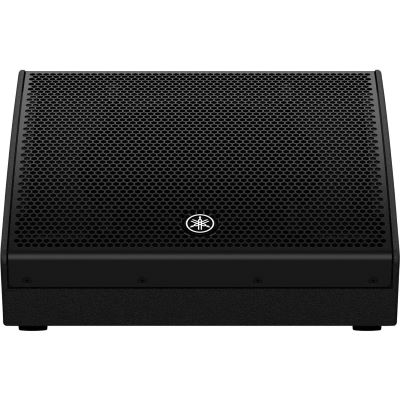

Yamaha DHR 12M Aktivlautsprecher

The DHR12M is a 2-way bi-amp active loudspeaker featuring a 12-inch woofer and a 1.75-inch HF driver in a space-saving coaxial configuration perfect for use as a floor monitor. The DHR12M combines a 1000-watt amplifier and high-performance DSP with the same plywood construction used in Yamaha's high-end DZR speaker series to deliver premium sound quality and durability.

Features:

• Yamaha - DHR 12M powered speakers.
• Coaxial driver delivers precise, smooth phase and frequency response ideal for use in monitoring applications
• Features a plywood enclosure that delivers clear sound with minimal vibration
• Compact, low-profile plywood enclosure with a polyuera coating for a rugged, scratch-resistant finish
• A flange for use on a tripod
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, and minimizes phase distortion

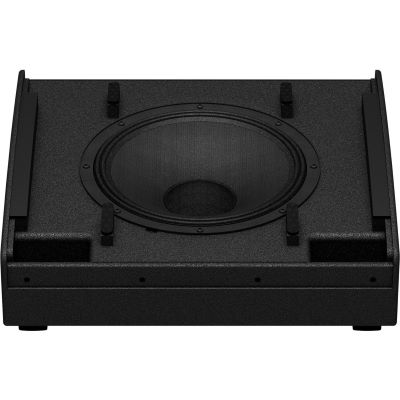

• LF driver: 1x 12" (30.48 cm)
• HF/(MF) driver: 1.75"
• Simultaneously usable channels. 2-channel
• Mic preamp: 1x Mic In
• Amplifier class: Class-D
• Power amplifier output: 1000 W
• Frequency response: 55 Hz - 20 kHz
• Sound pressure (max./1m): 129 dB
• Dispersion angle: 90° x 60

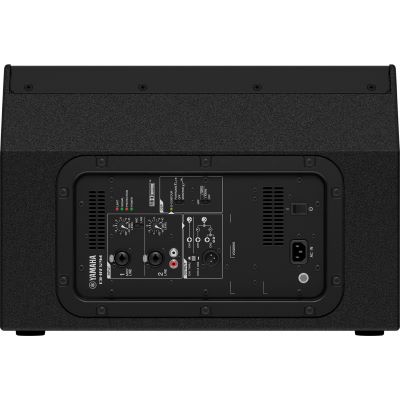

• Inputs: 2x combo jack/XLR, 2x cinch
• Outputs: XLR (Mix-Out)
• Presets: D-Contour (FOH/Off/Monitor), HPF (off/100 Hz/120 Hz)
• dimensions: 500 x 343 x 454 mm
• Cabinet: plywood
• Weight: 16,5 kg

Specs:

• Power: 1000 W
• Housing Material: Wood
• Woofer: 1 x 12
• Tweeter: 1 x 1,75
• Set Offer: no
• Type: Stage Monitor
• Theme: PA and Sonication
